Galaxy
DX Radios DX33HP
Documentation Project
CBTricks.com

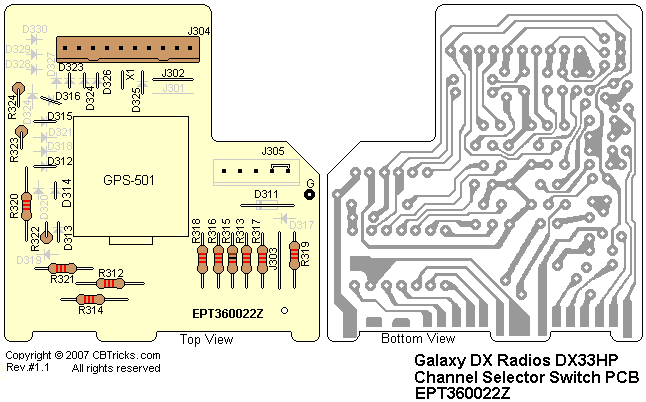

Channel Selector PCB
(EPT360022Z)

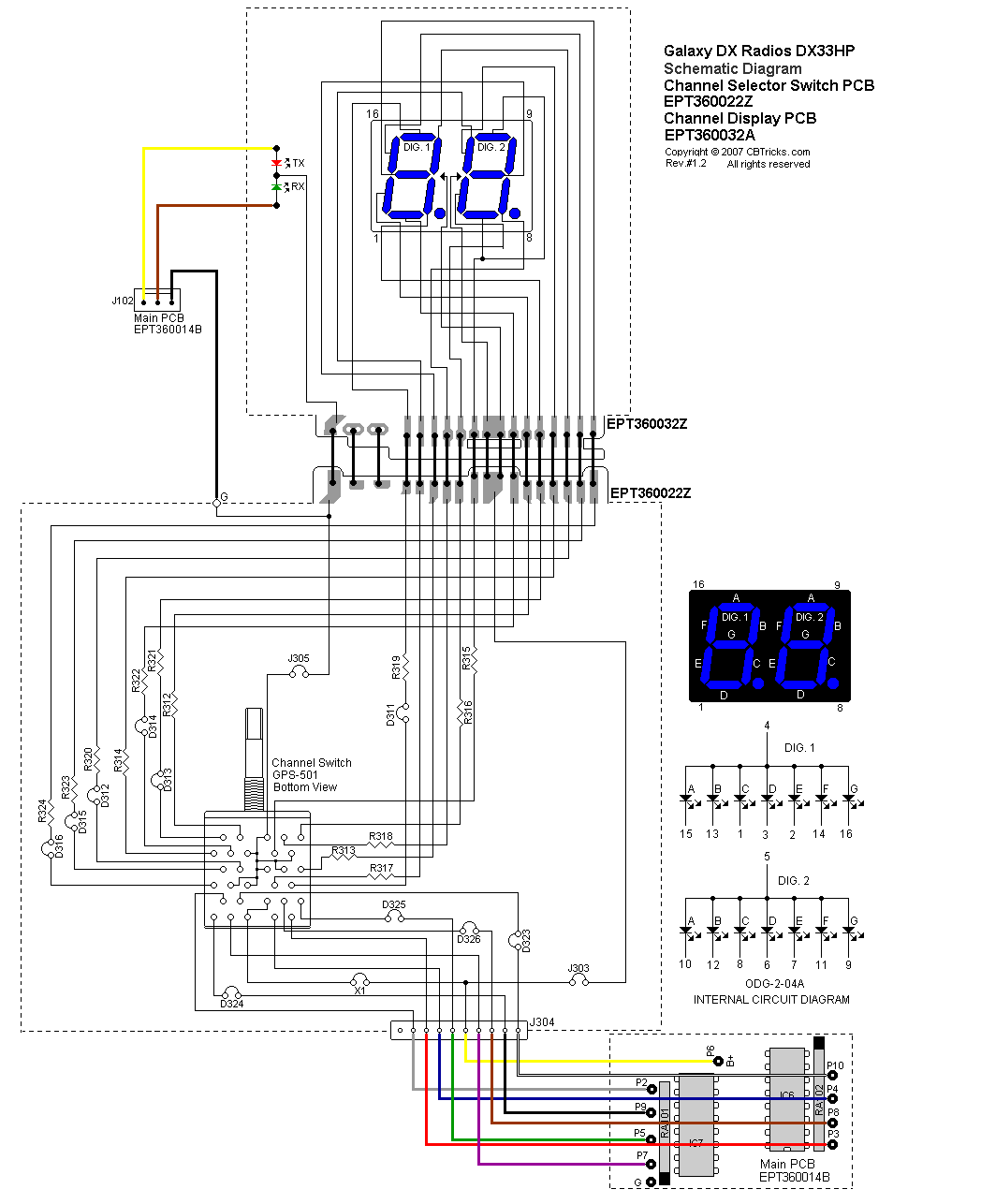

Schematic Diagram
|
Ref#
|
Description |
MFR.
Part No.
|
|
ROTARY SW P.C.B. (DX-33HP) EPT360022Z Complete with Components |
#MT-140I1-P02 |
|
|
ROTARY SW P.C.B. 58X55X1.6 |
EPT360022Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R312 |
C/F/R 2.2K OHM 1/4W M |
RCM142224B |
|
R313 |
C/F/R 2.2K OHM 1/4W M |
RCM142224A |
|
R314 |
C/F/R 2.2K OHM 1/4W M |
RCM142224B |
|
R315 |
C/F/R 1K OHM 1/4W |
RCM141024A |
|
R316 |
C/F/R 2.2K OHM 1/4W M |
RCM142224A |
|
R317 |
C/F/R 2.2K OHM 1/4W M |
RCM142224A |
|
R318 |
C/F/R 2.2K OHM 1/4W M |
RCM142224A |
|
R319 |
C/F/R 2.2K OHM 1/4W M |
RCM142224A |
|
R320 |
C/F/R 2.2K OHM 1/4W M |
RCM142224B |
|
R321 |
C/F/R 2.2K OHM 1/4W M |
RCM142224A |
|
R322 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
|
R323 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
|
R324 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
Switch
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
ROTARY SW GPS-0501 |
EWRT32000S |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J304 |
PCB CONNECTOR/S 10P T |
EX07N40014 |
Jumpers
|
Ref#
|
Description |
MFR.
Part No.
|
|
J302 |
JUMPER WIRE 7x8MMx7 |
WX01070708 |
|
J303 |
JUMPER WIRE 7x10MMx7 |
WX01070710 |
|
J305 |
JUMPER WIRE 7x3MMx7 |
WX01070703 |
|
J312-315 |
JUMPER WIRE 7x4MMx7 |
WX01070704 |
|
J323 |
JUMPER WIRE 7x4MMx7 |
WX01070704 |
|
J324 |
JUMPER WIRE 7x4MMx7 |
WX01070704 |
|
J326 |
JUMPER WIRE 7x4MMx7 |
WX01070704 |
|
D311 |
JUMPER WIRE 7x10MMx7 |
WX01070710 |
|
D316 |
JUMPER WIRE 7x4MMx7 |
WX01070704 |
|
D325 |
JUMPER WIRE 7x5MMx7 |
WX01070705 |
|
X1 |
JUMPER WIRE 7x4x7mm |
WX01070704 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
