Galaxy
DX Radios DX33HP
Documentation Project
CBTricks.com

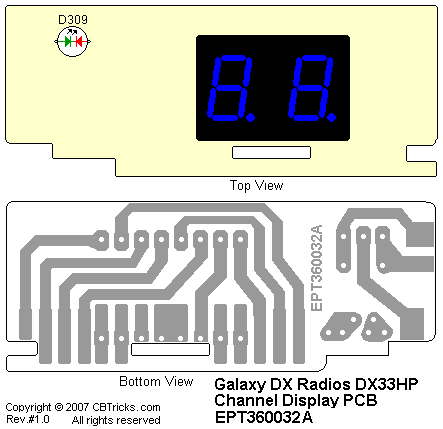

Display PCB (EPT360032A)
Schematic Diagram
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
DISPLAY P.C.B. EPT360032A Complete with Components |
#MT-140I1-P03
|
|
|
DISPLAY P.C.B. 87x40x1.6 tmm |
EPT360032A
|
LED's
|
Ref#
|
Description |
MFR.
Part No.
|
|
LED DISPLAY (10mA) L=12mm (RCS) |
EX03N40521 |
|
|
D309
|
LED 3MM RED/GREEN |
EX01N40004 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
LED DISPLAY HOLDER |
PT3600060A |
|
|
LED DISPLAY WINDOW BLUE |
PT2100041F |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
