homemade riser/extension

Discussion in 'CB Antennas' started by HomerBB, Dec 2, 2011.

  1. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401

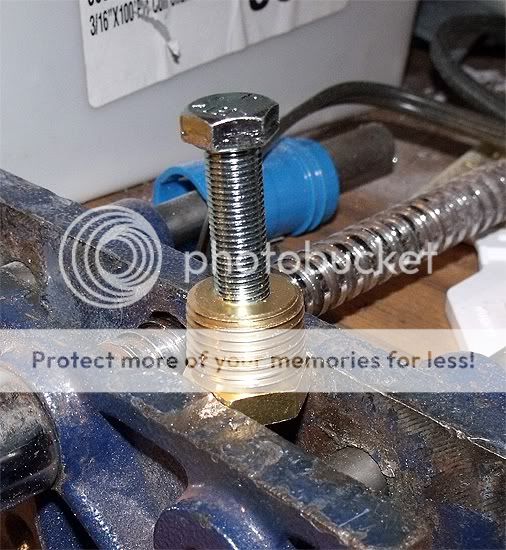

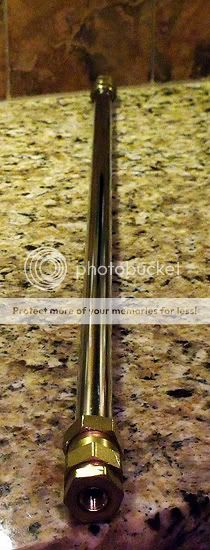

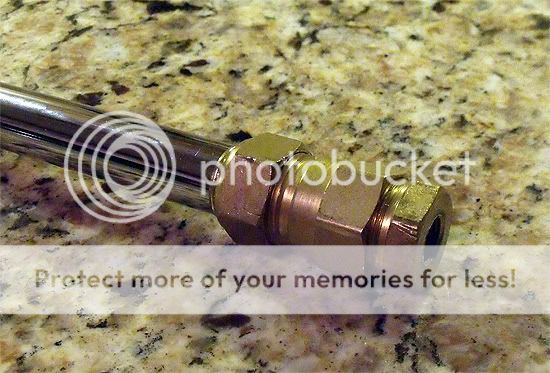

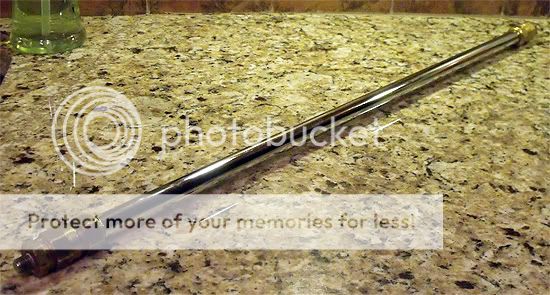

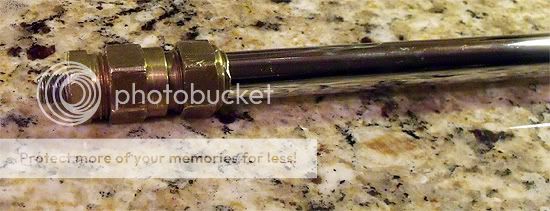

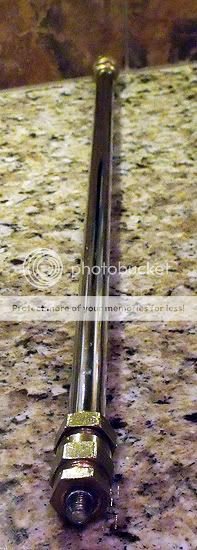

    For those who need a riser/extender for whatever purpose, whether to get your mobile antenna coil above your truck cab, or simply to get it higher, one method I've used is

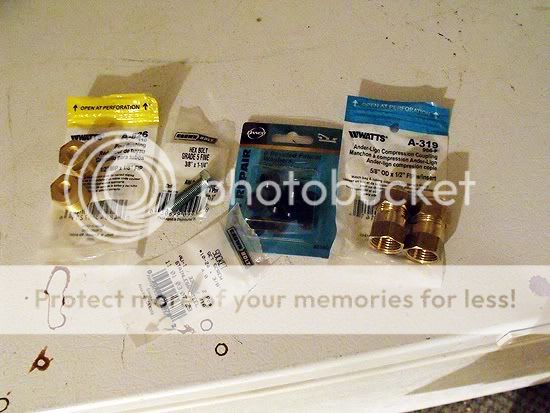

    as easy as a trip to the local Home Depot for some brass fittings, a 3/8-24 x 1-1/4" bolt, and a tube that is of 5/8" outside diameter. Cut your tube of any length you

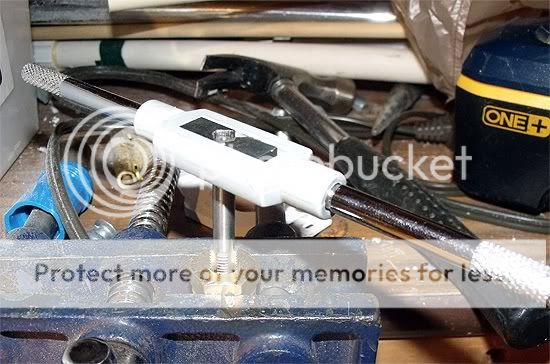

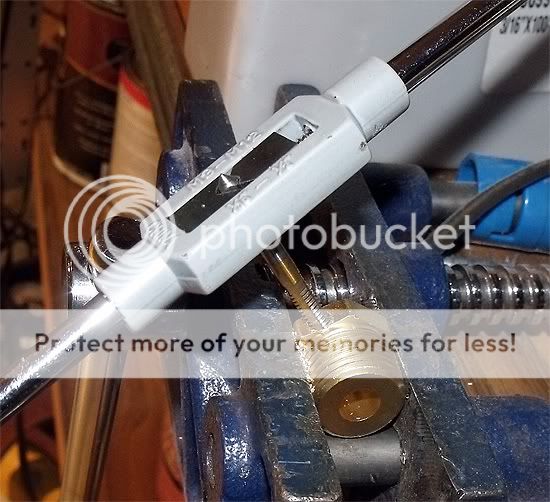

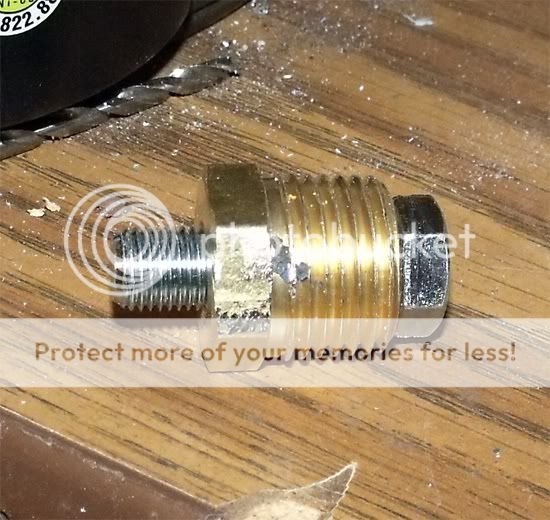

    desire and put the parts together. One thing to note is the 1/8" x 1/2" brass bushing must have the 1/8" thread reamed out with a 3/8-24 tap before it will receive an

    antenna or the 3/8 x 1-1/4" bolt.

    [​IMG] [​IMG]



    [​IMG] [​IMG]

    [​IMG] [​IMG]

    #1
  2. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401

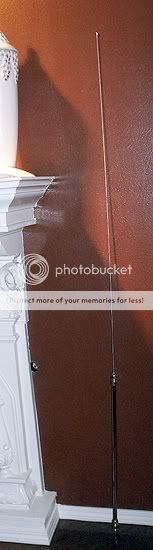

    As an example, here is an antenna load from Radio Shack that requires a 57" whip and is normally bottom loaded. Putting it on the riser required a shorter whip, but not a direct trade off. The over all length of the antenna with the riser under it is 80". According to the MFJ-209, I have a 1.5:1 bandwidth from 27.815 to 26.515 with it up there. And it seems to work well with both local and DX contacts.

    [​IMG]

    #2
  3. mackmobile43

    mackmobile43 Jock Supporter

    Joined:
    Feb 11, 2008
    Messages:
    6,715
    Likes Received:
    362
    nice

    #3
  4. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401
    Thanks, Mack.

    #4
  5. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401
    Someone asked me this/;



    Maybe I would if I had some idea of why you'd want to do that. To change the resonance so it can be used on other bands, or just to clear obstacles like a low garage, etc.?

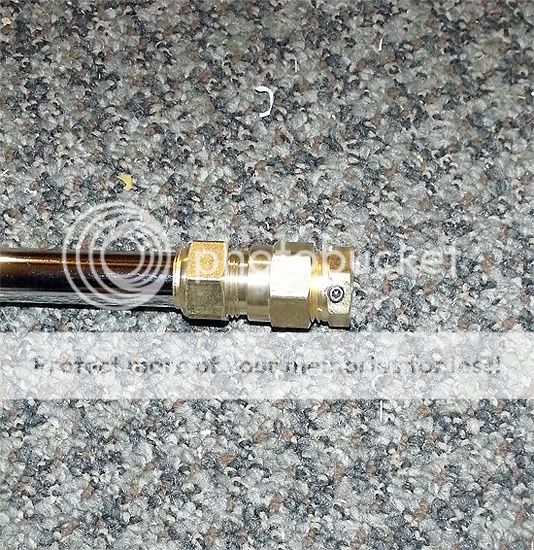

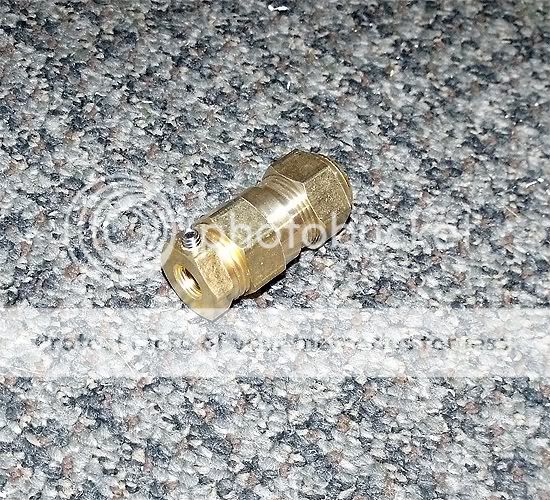

    I've been drilling a hole in the top nut on the bushing and threading it with a tap in order to put in a set screw for whip length adjustment.
    If that is the idea, you do that and slip the bushing over the whip before you screw it into the top of the extension. Before that is done, a rubber seat for a faucet is placed around the whip in order to keep it centered as it is moved up and down the tube. When you've found your tune, tightened the set screw for the frequency range you are working.

    #5
  6. jesse10x

    jesse10x Member

    Joined:
    Dec 26, 2009
    Messages:
    44
    Likes Received:
    0
    5/8" od or 3/8 od?

    #6
  7. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401
    The tube is 5/8" OD
    The bolt is 3/8" diameter with 24 threads per inch

    #7
  8. mackmobile43

    mackmobile43 Jock Supporter

    Joined:
    Feb 11, 2008
    Messages:
    6,715
    Likes Received:
    362
    Conduit with weather tight fittings would do nicely as a slider or a low power gamma match with an adjustable tapping point

    #8
  9. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401
    That's what I like. Ideas.

    #9
  10. HomerBB

    HomerBB Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,489
    Likes Received:
    401

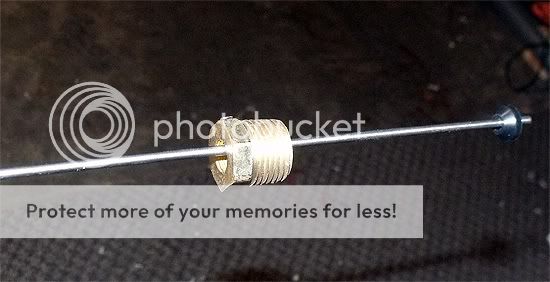

    Alright, now about the way an adjustable whip antenna can be devised from this simle extension.

    Follow the logic of the photos. If unclear, just ask me. Be aware that the tube length is as needed/desired,
    and that because the only 102" SS whip on the premises is up in the air as the top section Of my Sigma4 antenna.
    I used the smaller shorter whip simply to illustrate how to do the work. An actual SS whip would be thicker making
    it a better fit through the top of the tube setup, and a beter fit for the rubber faucet seal/washer on the bottom
    that keeps the whip centered in the tube. The shouldered bottom of a SS 102" whip would prevent losing the washer in the tube, too


    [​IMG] [​IMG]

    [​IMG] [​IMG]

    [​IMG] [​IMG]

    [​IMG] [​IMG]

    [​IMG] [​IMG]

    #10
