turner + 3 wiring

Discussion in 'Ham Equipment' started by Oldtimer, Oct 24, 2009.

  1. Oldtimer

    Oldtimer Active Member

    Joined:
    May 20, 2008
    Messages:
    222
    Likes Received:
    7
    I have saw the wiring for a Turner + 3 to a Cobra 25.
    When I wire it up as stated and I plug it in the radio I get
    a loud hum and the needle pegs to the right.
    Here is the way I wired it up.
    1-sh/red
    2-white
    3-blue
    4-black
    Any suggestions?
    It's not the radio cause I tried it on my other Cobra 25 which is brand new.
    Thanks




  2. mackmobile43

    mackmobile43 Jock Supporter

    Joined:
    Feb 11, 2008
    Messages:
    6,715
    Likes Received:
    364
    That is the correct wiring for that mic/radio combo, check for short circuit in the mic connector area meaning where you soldered in the connector, very small wires are hard to see sometimes.

  3. TonyV225

    TonyV225 Supporting Member

    Joined:
    Apr 18, 2005
    Messages:
    5,821
    Likes Received:
    278
    Yupp all it takes is one tiny little strand you cant see and theres a problem

  4. Sonwatcher

    Sonwatcher Administrator

    Joined:
    Apr 6, 2005
    Messages:
    3,420
    Likes Received:
    13
    This is from the Turner Wiring Handbook-

    1-shield
    2-white
    3-black
    4-red


    Attached Files:

  5. TonyV225

    TonyV225 Supporting Member

    Joined:
    Apr 18, 2005
    Messages:
    5,821
    Likes Received:
    278
    I was wondering about the shield being connected to the red or transmit.

  6. mackmobile43

    mackmobile43 Jock Supporter

    Joined:
    Feb 11, 2008
    Messages:
    6,715
    Likes Received:
    364
    That's the same as my super sidekick (I looked inside) and I assume they like many other manufactures used different mic cords with different color wires.

    #6 mackmobile43, Oct 24, 2009
    Last edited: Oct 24, 2009
  7. Sonwatcher

    Sonwatcher Administrator

    Joined:
    Apr 6, 2005
    Messages:
    3,420
    Likes Received:
    13
  8. mackmobile43

    mackmobile43 Jock Supporter

    Joined:
    Feb 11, 2008
    Messages:
    6,715
    Likes Received:
    364
  9. mackmobile43

    mackmobile43 Jock Supporter

    Joined:
    Feb 11, 2008
    Messages:
    6,715
    Likes Received:
    364
    There is a switch on the bottom of the mic electronic/relay, put it in electronic position.

  10. Sonwatcher

    Sonwatcher Administrator

    Joined:
    Apr 6, 2005
    Messages:
    3,420
    Likes Received:
    13

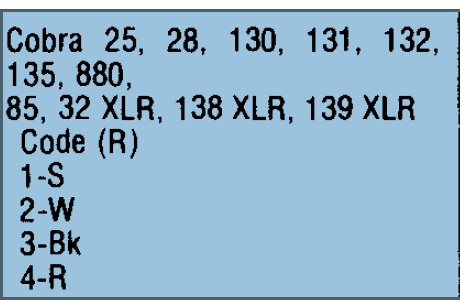

    There is a conversion in the handbook ( changing use of wires when using a 6 wire Turner for a 4 wire radio )that tells you to use the black wire in place of the blue and the red wire in the place that black would normally be when using a 6 wire.

    [​IMG]
    [​IMG]

    Not sure if someone put a Turner 6 wire cord on it. My Turner CS-1 is a 6 wire.

  11. Sonwatcher

    Sonwatcher Administrator

    Joined:
    Apr 6, 2005
    Messages:
    3,420
    Likes Received:
    13
    Another neat thing in the Handbook is how to convert the Sidekick , +2 and +3 for VOX operation .
