What use for this?

Discussion in 'CB and Export Equipment and Accessories' started by HomerBB, Nov 19, 2010.

  1. HomerBB

    HomerBB
    Expand Collapse
    Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,600
    Likes Received:
    446

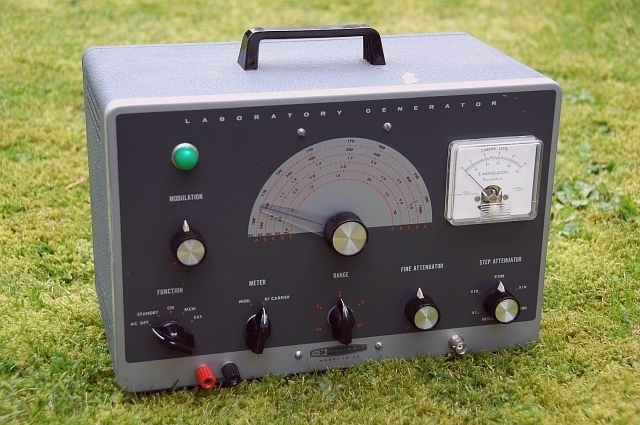

    A friend gave me one of these things with some other stuff. What might I do with it? I ask this in terms of what one does with one practically speaking. . . is it useful?

    [​IMG]

    www.heathkit.nu

    Thanks,
    HomerBB/Charles




  2. wcsd106

    wcsd106
    Expand Collapse
    Active Member

    Joined:
    Nov 19, 2009
    Messages:
    217
    Likes Received:
    2
    That appears to be an RF signal generator. They are very useful for aligning the receiver section of radios.

    I used to use a Heathkit model and thought very highly of it. My model was older than the one you have pictured. I now use a B&K precision model, but it's not that much better than the heathkit.

  3. fnkycoldmedina

    fnkycoldmedina
    Expand Collapse
    Well-Known Member

    Joined:
    May 18, 2005
    Messages:
    2,264
    Likes Received:
    84
    what he said......used for aligning the receive on radios.

  4. HomerBB

    HomerBB
    Expand Collapse
    Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,600
    Likes Received:
    446
    Do I need an oscilloscope to utilize this thing properly?
    (I feel like my ignorance is showing).
    If the answer is too complicated no one ought to feel obligated to answer it.

  5. Captain Kilowatt

    Captain Kilowatt
    Expand Collapse
    Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    12,362
    Likes Received:
    3,502
    It is indeed a Heathkit RF signal generator. i have the exact same model but mine does not look as shiny as your's. You can use it to check a receiver however the frequency is not very stable on it nor is the accuracy of output level. I used mine a lot to find the resonant frequency of traps and other coil/capacitors circuits along with an oscilloscope to measure the signal peak or minimum. It's a half decent signal generator for non-critical measurements.

  6. HomerBB

    HomerBB
    Expand Collapse
    Well-Known Member

    Joined:
    Jan 4, 2009
    Messages:
    2,600
    Likes Received:
    446
    Thanks, CK,

    That one is a borrowed photo from the link I posted. Mine is in the attic. I need to photograph it so you can say, "I have one like that, but mine is shinier than yours!"

    ;)
