Uniden PRO500D (UT-317J)
Documentation Project
CBTricks.com

SEMICONDUCTOR LEAD IDENTIFICATION

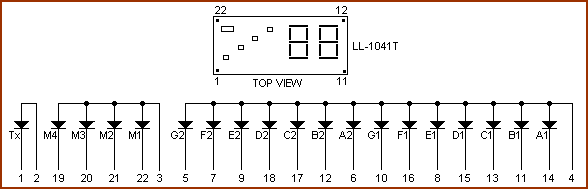

Display

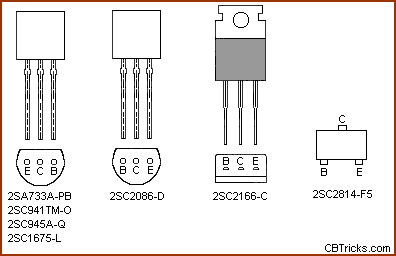

Transistors

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
