Uniden
PRO710E (UT-316)
Documentation Project
CBTricks.com

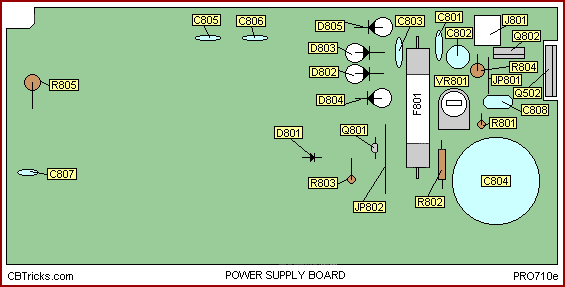

| C801 | 0.047UF /YF | F801 | 3A 250V |
| C802 | 33UF 25V C-174 | ||
| C803 | 0.047UF /YF | Q801 | 2SC945AQ |
| C804 | 3300UF 35V CZ149 | Q802 | 2SD1348R |
| C805 | 0.01UF /YD | Q803 | 2SD895E |
| C806 | 0.01UF /YD | ||
| C807 | 0.0047UF /YF | R801 | 330 |
| C808 | 0.047UF (P) | R802 | 330 |
| R803 | 1K | ||
| D801 | HZ6C2 | R804 | 3.3K 1/2W |
| D802 | 1N5401 | R805 | 2.2M 1/2W |
| D803 | 1N5401 | ||
| D804 | 1N5401 | VR801 | 200 B |
| D805 | 1N5401 |
