5/8 wave ground plane 11 meters

Discussion in 'Home Brew' started by Christopher17, Jun 3, 2019.

  1. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296
    for my next antenna project I'm doing 5/8 wave ground plane , my design uses aproximatly 21 foot driven element with four 1/4 wave 102" radials set at 45° , unlike my current homebrew 1/4 wave ground plane the new one will require some kind of matching transformer, I have seen some balancers made with coils of wire and some using a capacitor along with coils of wire, buying a balun is not out of the question, I would like to be able to make my own if I could understand it better.



    357magnum and Shadetree Mechanic like this.

  2. sp5it

    sp5it Master of puppets

    Joined:
    Jul 9, 2009
    Messages:
    1,888
    Likes Received:
    2,095
    357magnum likes this.
  3. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296
    Interesting reading , the pi design overly complicated for a single use 11 meter

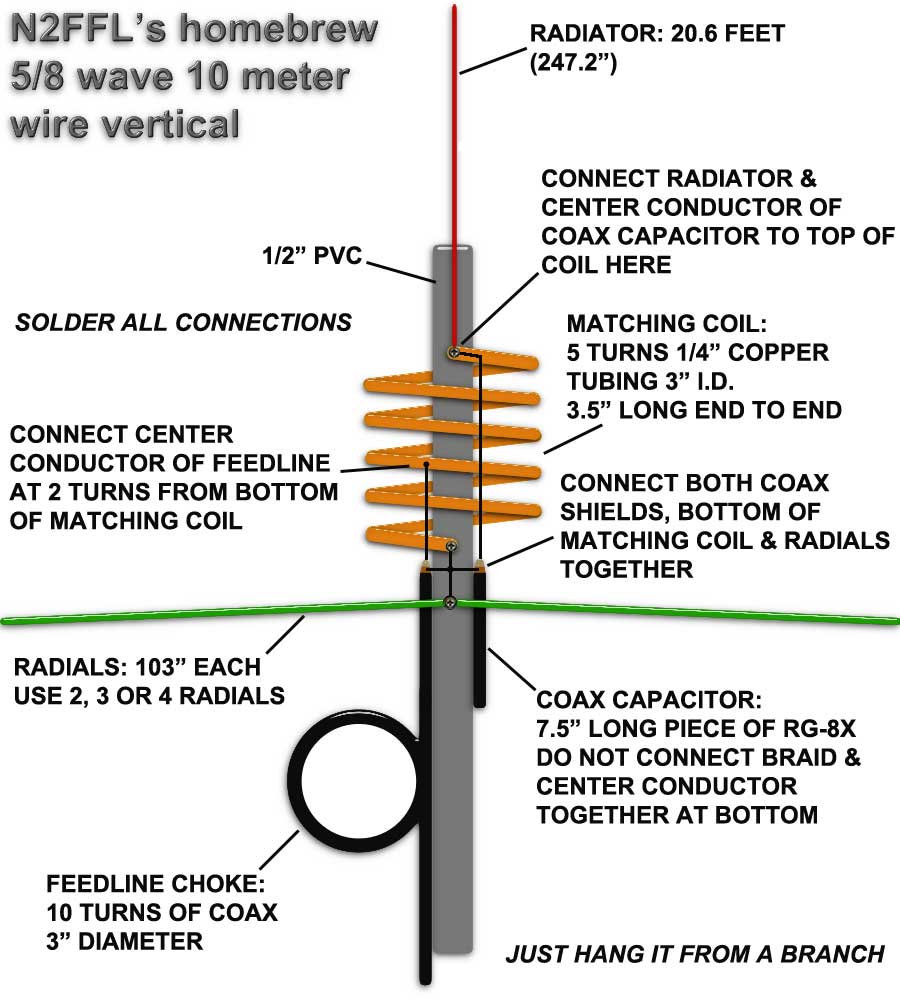

    thinking something like this ?


    Attached Files:

  4. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296

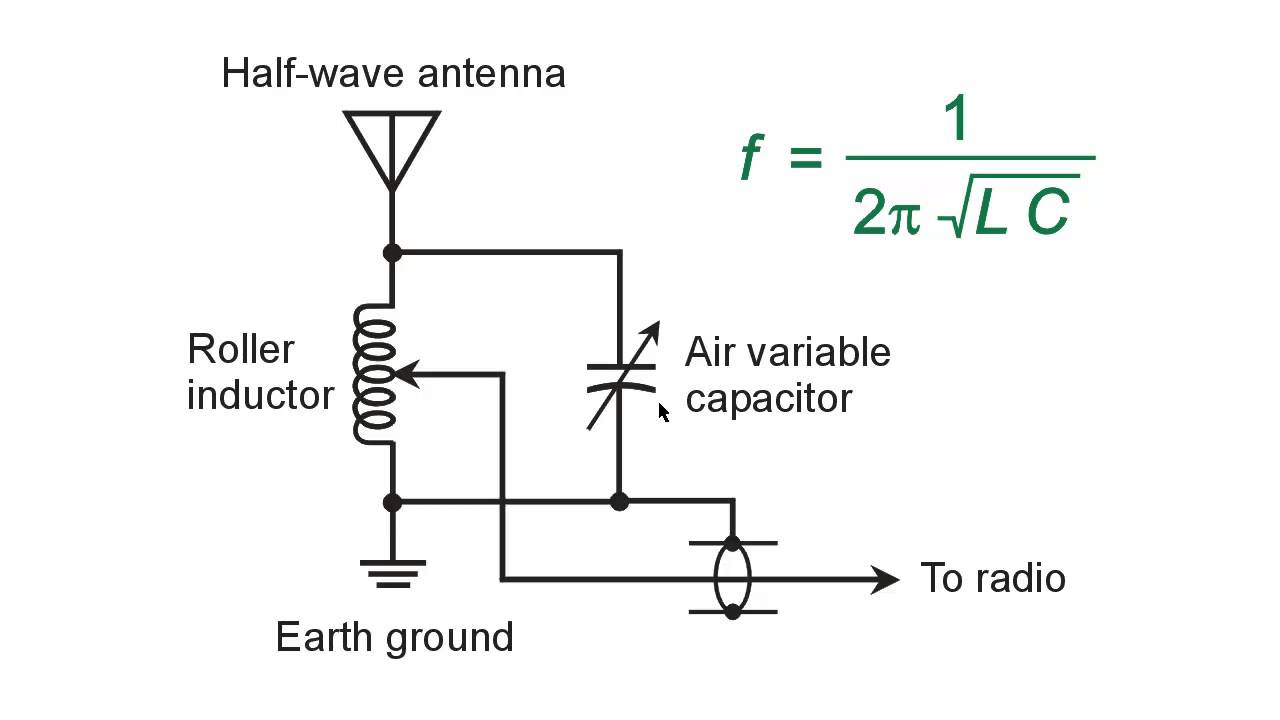

    then this but I don't understand


    Attached Files:

  5. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296
    the 5/8 super penetrated does something similar to this for its balancer


    Attached Files:

  6. binrat

    binrat WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    2,519
    Likes Received:
    1,386
  7. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296
    thanks binrat

  8. binrat

    binrat WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    2,519
    Likes Received:
    1,386
    Oh, it was never built unless there is pictures. ;):ROFLMAO:

    DainBramage and Captain Kilowatt like this.
  9. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296
    will add pics when completed :)

  10. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    162
    Likes Received:
    296

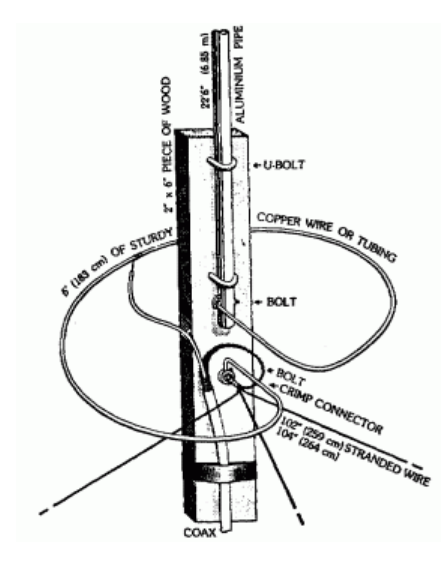

    looking at this simple solution , has anyone have experience with this kind of matching transformer, I am assuming the tap point is critical depending on what frequency, this looks similar to the matching transformer on the Hy-Gain 5/8 ground plane , may just have to play with it , think I could make it variable with a hose clamp , move it around the ring to get best receive, no analyzer as of yet


    Attached Files:

  11. binrat

    binrat WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    2,519
    Likes Received:
    1,386
    When I did one I just wrapped the wire around it until I got the antenna resonant, then soldered it.

  12. Bluestone

    Bluestone New Member

    Joined:
    Jul 10, 2021
    Messages:
    2
    Likes Received:
    0

    This one works great I built this exact design, works great. Good signal and good for dx

  13. HomerBB

    HomerBB Sr. Member

    Joined:
    Jan 4, 2009
    Messages:
    3,785
    Likes Received:
    2,180

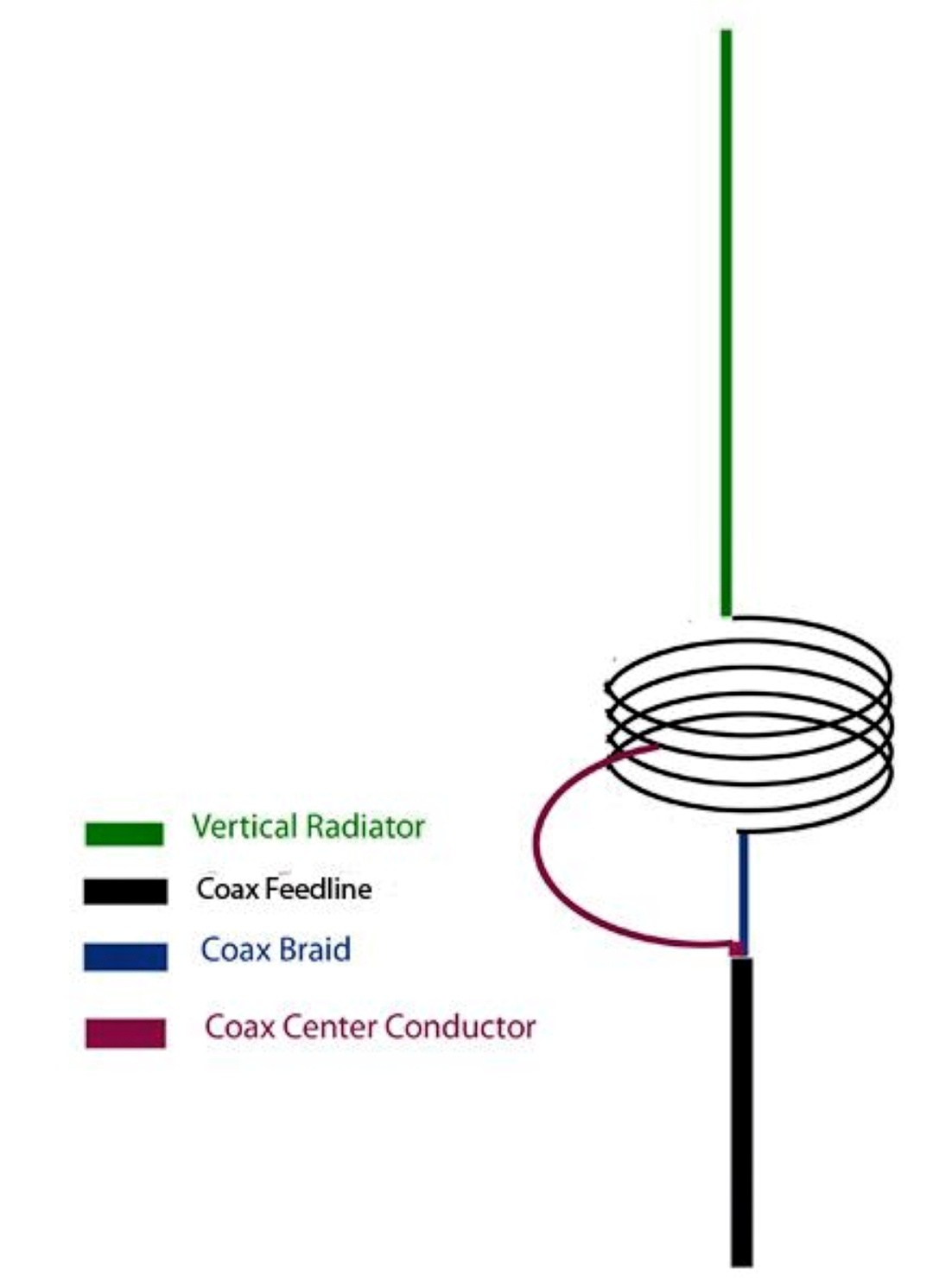

    All you need is a coil (inductor).
    Bottom of coil and coax shield to the radials.
    Center conductor of coax to the 50 Ohm tap point on the coil. Top of coil to the vertical radiator.
    The radials are isolated from the vertical radiator except through the coil itself. The radials are located at the bottom of the coil where the braid attaches.


    Slowmover likes this.
  14. HomerBB

    HomerBB Sr. Member

    Joined:
    Jan 4, 2009
    Messages:
    3,785
    Likes Received:
    2,180
    The 5/8 will perform better with horizontal radials.

  15. HomerBB

    HomerBB Sr. Member

    Joined:
    Jan 4, 2009
    Messages:
    3,785
    Likes Received:
    2,180

    Holydvr, NZ8N, Jay Mojave and 3 others like this.
