A 2m/70cm vertical dipole DIY . . .

Robb

Yup
Dec 18, 2008
11,433
3,611
323
Silicon Valley CA, Storm Lake IA


This must be one of the simplest yet most effective DIY 2m/70cm antennas yet.
You can build this with stuff you have laying around.
Local friend was looking to build his own antenna for cheap, so I turned him on to this:

http://amateurradio.bz/2m-70cm_vertical_dipole_antenna.html

http://www.youtube.com/watch?feature=player_embedded&v=RcO5WAiksNI

Last edited:

fortyfiver

Member
Jul 6, 2011
43
8
18
great dipole

THAT is a great looking dipole! I love building and using simple antennas and I'll be starting this one tomorrow!

*****

"It is hard to imagine a more stupid or more dangerous way of making decisions than by putting those decisions in the hands of people who pay no price for being wrong."

Dr. Thomas Sowell


Robb

Yup
Dec 18, 2008
11,433
3,611
323
Silicon Valley CA, Storm Lake IA

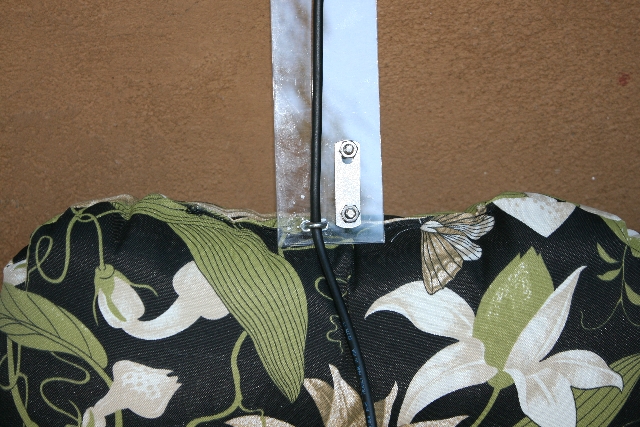

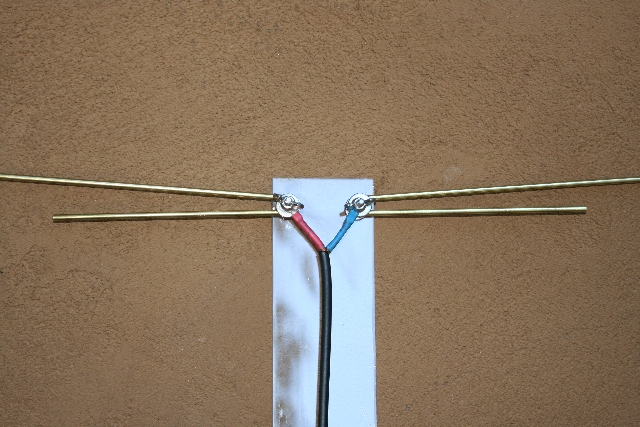

A local friend that I told about this antenna project built it today. Took him 45 minutes and cost him $12. Instead of using stainless steel for the elements, he used brass. He also tightened up the gap between the 2m/70cm sections seen in these pictures; the pics were taken before he corrected them.

Nice job, Wayne!

Here are the pics:


Attachments

  • wayne 1.JPG
    wayne 1.JPG
    261.4 KB · Views: 11,861
  • wayne 2.JPG
    wayne 2.JPG
    280.8 KB · Views: 1,663
Last edited:

Beetle

Sr. Member
Dec 7, 2005
3,082
1,172
173
78
Western Washington
A local friend that I told about this antenna project built it today. Took him 45 minutes and cost him $12. Instead of using stainless steel for the elements, he used brass. He also tightened up the gap between the 2m/70cm sections seen in these pictures; the pics were taken before he corrected them.

Nice job, Wayne!

Here are the pics:

That coax has a serious discontinuity. I'd be sure to check it out before I tried transmitting with it...:whistle:

  • Like
Reactions: 1 person

FatHam

Well-Known Member
Staff member
Apr 15, 2011
631
175
73
61
So Cal


Pretty cool. Just trying to get an idea of the size. For scale purposes, is it sitting on a woman's chest?
:D

  • Like
Reactions: 1 person
