Homebrew GU50 tube amp 10-11m

Discussion in 'Home Brew' started by Tube Doctor, Oct 13, 2009.

  1. Tube Doctor

    Tube Doctor Member

    Joined:
    Oct 9, 2009
    Messages:
    2
    Likes Received:
    0
    Hello everybody. Does anyone have any expertise with the Russian GU50/ LS50 tube? I want to build a 50-100 watt amp and drive it direct either with my cobra29 or trusty comstat 25b tuber. I am considering using 6146 tubes or the GU50. I like the dissapation and build quaility of the GU50 and am almost set on using this tube. I need to design a circuit around it or find a proven circuit for using it. I dont have a whole lot of information on this tube and do not think the russian military is willing to give me any pointers either. It would also be helpfull to know what I need to drive it with as far as what tube and input wattage ect. Thanks AARON AKA "The Tube Doctor"




  2. Tube Doctor

    Tube Doctor Member

    Joined:
    Oct 9, 2009
    Messages:
    2
    Likes Received:
    0
    10-11m GU50 tube BUILD

    Anybody???????? GU50 build info Specs ect?

  3. MisterFatty

    MisterFatty Poppin Fresh!

    Joined:
    Aug 1, 2008
    Messages:
    698
    Likes Received:
    27
  4. paws264

    paws264 Active Member

    Joined:
    Apr 6, 2005
    Messages:
    647
    Likes Received:
    4
    It's a vacuum tube, treat it like one

    Class C (telegraph mode)
    Ua= 1000 V (max. 46,1 MHz)
    Ua= 800 V Imax. 66,6 MHz)
    Ua= 700 V (max. 85,7 MHz)
    Ua= 600 V (max. 120 MHz)
    Ia = 120 mA
    Ug2 = 300 V
    Ig2 = 10 mA
    Ug1=- 80 V
    Ig1=0 mA
    Pout=85 W
    max cathode current: 230 mA
    heater: 12,6 V/0,7A

    You are not going to find any "How to / DIY" instructions for that tube, your best bet is to adapt an existing design to fit your application. X-Force or Charger have never built one of these so, the appliance-operating world has nothing to copy from.

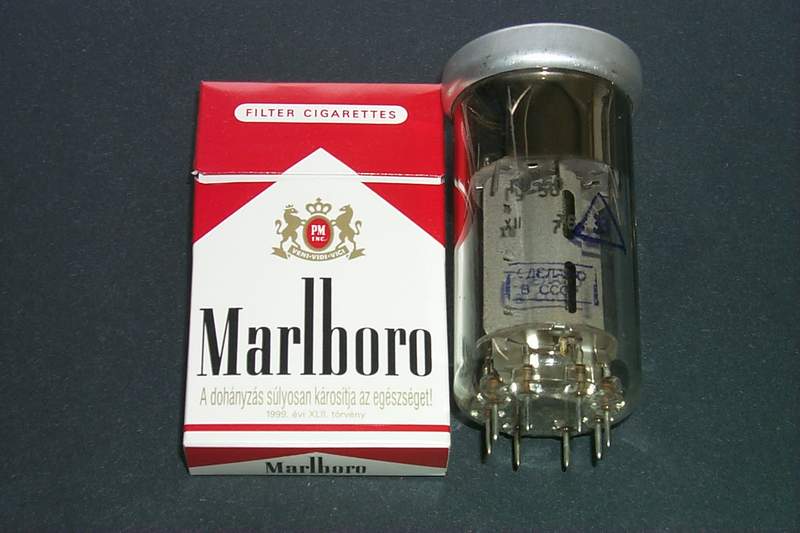

    The tube looks interesting with that metal heat dissapation cap on the top. If you are interested in working with that tube, but 4-6 of them and some sockets and get busy.

    [​IMG]

    Are you trying to build a high Mu Grid-driven amp (like the 4CX-250b style), if so then your tuned input circuit is critical along with the stability of the screen and bias supplies. You could ground all grids, feed the cathode like they do with the 6LQ6 tube and hope for the best. I would not consider using the exact circuit as the 6146 because of the way that tube is internally constructed.

    .
