Icom IC-91 TX/RX Frequency expansion mod

AudioShockwav

AudioShockwav

Extraterrestrial
Staff member
Apr 6, 2005
9,015
8,753
593
Nor Cal Sierra Nevada
Author: Icom inc.
Date: May 12, 2006
RX frequency coverage expansion

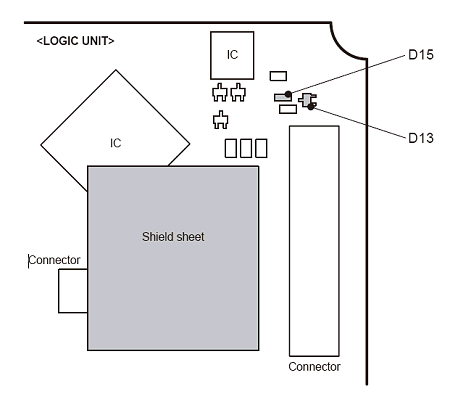

Remove D15 as shown below. While pushing [SQL] and [BAND], turn power on for Maximum frequency coverage.
TX frequency coverage expansion
After the RX frequency coverage expansion, remove D13 as shown below.
