ICOM IC V 85 TX Frequency expansion

AudioShockwav

Extraterrestrial
Staff member
Apr 6, 2005
8,965
8,634
593
Nor Cal Sierra Nevada
For [USA] (#05), [USA-1] (#15), [USA-2] (#25), [EUR] (#02), [EUR-1] (#22), [UK] (#23) versions
RX frequency coverage expansion

No need of modification. (Maximum frequency coverage)
TX frequency coverage expansion

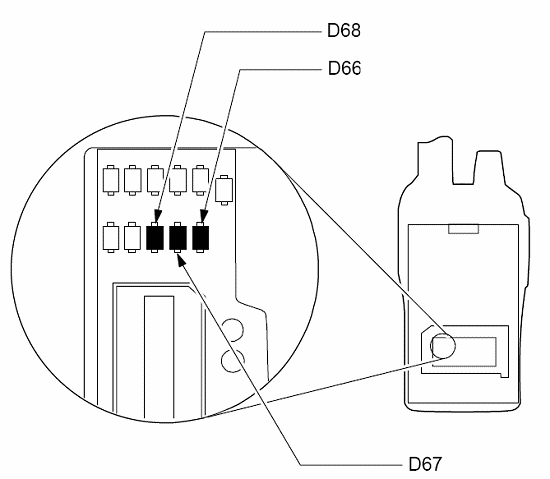

Remove D67 as shown below.

D68, D66 = Remove for RX frequency expansion.
D67 Remove for TX frequency expansion.

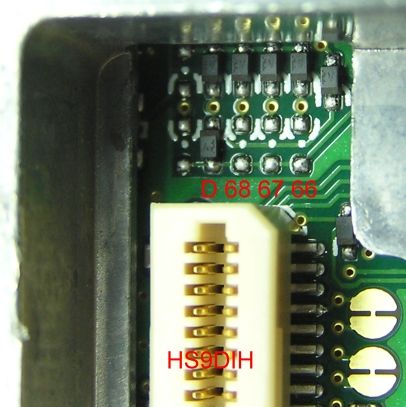

Thanks to HS9DIH for this pircture.
