Icom IC-V82 MARS/CAP mod

Discussion in 'Icom' started by AudioShockwav, May 22, 2010.

  1. AudioShockwav

    AudioShockwav Extraterrestrial Admin
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    5,422
    Likes Received:
    1,146
    Applies to these models: IC-V82 and IC-U82.
    How to expand TX/RX frequency coverage for modification

    Frequency coverage: 136 - 174 MHz*
    Frequency coverage: 400 - 479 MHz*
    For IC-V/U82, remove D48 from the main board.
    Note:
    The IC-V/U82 already has expanded RX operating frequencies you do not need to reset the CPU (Radio) after the above diode is removed.
    * The specification of reception performance outside of the amateur bands is not guaranteed.
    Main PCB Layout (Top)

    Note: not all of the diodes shown below my be installed on your PCB.
    [​IMG]

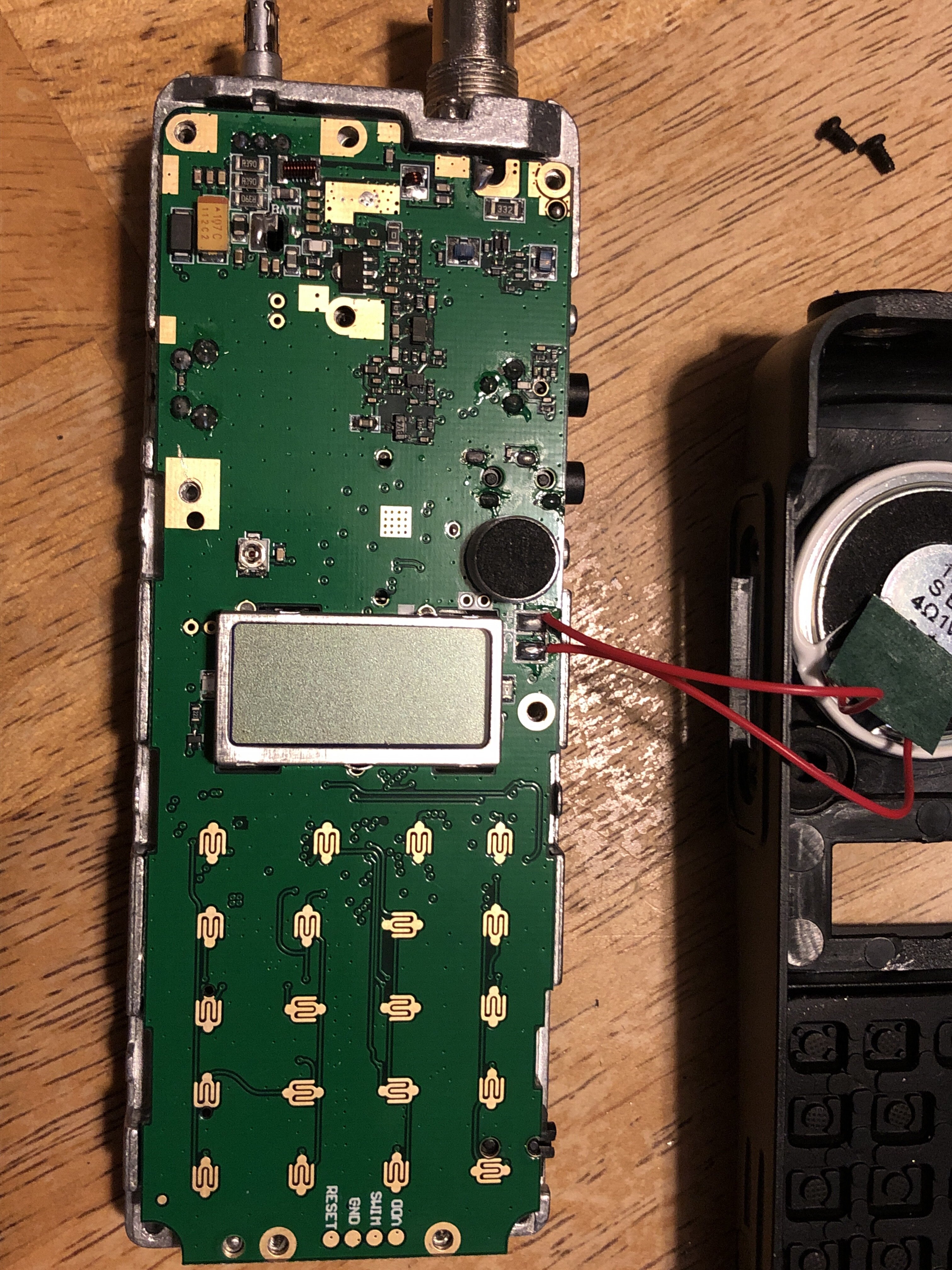

    The diode to remove is first diode to top left of lcd, when looking at main board upright with lcd display facing you, and case is opened.
    Removal of castle nut on antenna connector,all case screws including two small screws above and below mic jacks is required to open case.
    [​IMG]




  2. Bkshadd

    Bkshadd New Member

    Joined:
    Oct 28, 2015
    Messages:
    1
    Likes Received:
    0
    Hello, great article on the Icom v82 mod, I purchase the Icom v85 handheld and was wondering if you or if someone knew how to make same mod to the icom v85 radio. thank you,

    Bkshadd

  3. Smoke0077

    Smoke0077 New Member

    Joined:
    Jan 9, 2019
    Messages:
    3
    Likes Received:
    0
    Hi,
    I snipped the diode on my u82 to extend the range. It did fine, but when I try to actually transmit sound to my Motorola on the same frequencies it shows a transmission from the icom, but won't relay any actual sound.
    In reverse, the moto sound comes out of the icom fine.
    Any idea what I'm doing wrong would be great fully appreciated.
    Thanks

  4. Smoke0077

    Smoke0077 New Member

    Joined:
    Jan 9, 2019
    Messages:
    3
    Likes Received:
    0
    hmm

  5. binrat

    binrat WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    2,001
    Likes Received:
    647
    I have the V-82 with the mod done. Not problems at all. I did the mod by de-soldering the part.

  6. Smoke0077

    Smoke0077 New Member

    Joined:
    Jan 9, 2019
    Messages:
    3
    Likes Received:
    0
    Thanks,
    I tried it on 2 different radios, both act the same. :(
