Radio Keyer

Discussion in 'Home Brew' started by W9WD, May 9, 2009.

  1. W9WD

    W9WD Guest

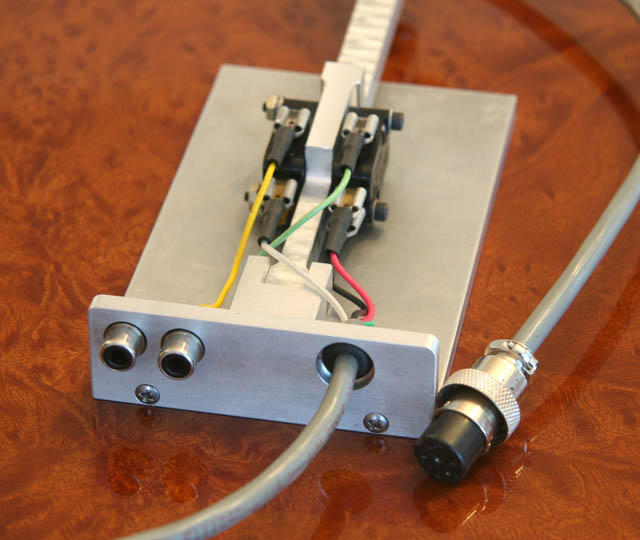

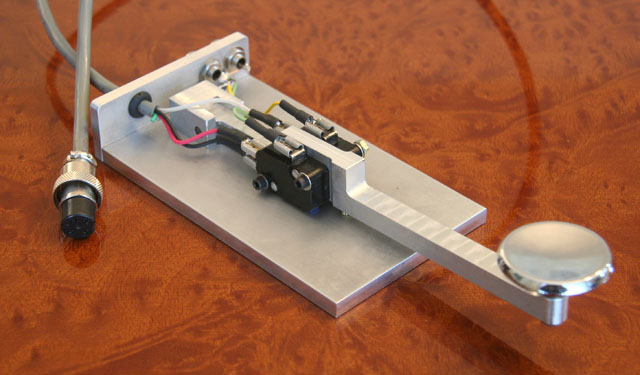

    I made this device which plugs into my 2950DX. You can plug in anything you want into the RCA jacks and the Keyer into your radio. Push down on the drawer puller and you can talk into your favorite mic/preamp/equalizer. I had all the parts in the junk bin except the mic plug and the drawer puller and some little rubber feet (not yet on in these pictures). The metal parts I made. This is version two. The prototype was clunkier and had more parts. I chose RCA jack inputs because that's what comes out of the equalizer I have




    Attached Files:


  2. Cajun Invader

    Cajun Invader Membership Moderator

    Joined:
    Oct 13, 2008
    Messages:
    360
    Likes Received:
    0
    Very impressive and nice craftsmanship. I've been wanting to hook up some sort of equalizer or mixer to my mic. This may just be the way to go.

  3. W9WD

    W9WD Guest

    Thank you
