Marconi

Usually if I can hear em' I can talk to em'.
Oct 23, 2005
7,063
2,071
343
Houston
Thanks Nomadradio.




  • Like
Reactions: 357magnum

HomerBB

Supporting Member
Jan 4, 2009
3,861
2,414
273
66
Rogers, Ar
It ain't no turnstile.

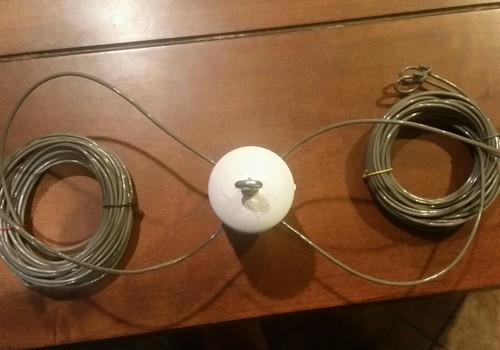

It is only two one wavelength long elements per side.
Each element is fed in the middle of the one wavelength wire.
Each one wavelength wire is bent at 90° in the middle.
One of the one wavelength wires is connected in the middle to the coax center conductor.
One of the one wavelength wires is connected in the middle to the coax braid.
The 1:1 balun is at the feedpoint.


sunbulls

Sr. Member
Apr 25, 2017
909
1,633
153
74
If the elements were half as long, it would be a turnstile antenna of some sort.

But half-wave long wires should give it a horrendously high feedpoint impedance.

I'm baffled.

73
Yea, using a 1 : 1 balun on those 1/2 wave legs was the first thing I thought was out of sorts..

  • Like
Reactions: 357magnum

xm49north7

Well-Known Member
Mar 21, 2019
303
460
73
60
VERTICAL PLOT, Notice both have very high swr, I did not try to solve for swr, simply used 11.05 meters as one full wave.X VERTICAL.jpg


Riverman

Old Member
Nov 12, 2013
2,667
2,651
273
Good job. As expected, “Z” is extremely high on full wave dipoles. As is SWR. The proof is in the pudding. Or the model, I guess I should say.
