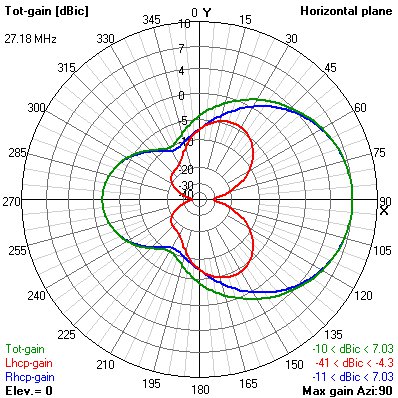

CP staggered yagi corrected model Right Handed, Left Handed and total gain.

CP staggered yagi corrected model Right Handed, Left Handed and total gain.

CP staggered yagi corrected model V, H and total gain.

CP staggered yagi corrected model

Thia is what the pattern should look like .
but note best axial ratio is .44
This is due to a poor design.
.

Flawed design showing axial ratio
Even though Vertical and Horizontal gain is exactly equal
at the bore site, a nice nearly perfect axial ratio of .9

Flawed design
Showing circular polarization
This hints at why axial ratio is not near 1 at the bore site

Flawed design
Note the gain of Vertical and Horizontal components are equal at the bore site.

CP staggered yagi corrected model Right Handed, Left Handed and total gain.

ghz24
Jun 14, 2013
