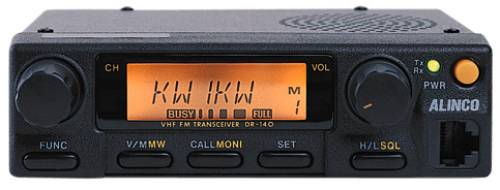

Alinco DR-140 2M Mobile 50W Transceiver
$140.00 USD
(RX) 118.000 - 135.995MHz (AM) 136.000 - 173.995MHz (FM)
(TX) 144.000 - 147.995 MHz
Included with the radio is a mobile mounting bracket and microphone.
Unfortunately, the power cord was cut a little short when a car dealer removed the radio from my vehicle.
This radio was in good working order when removed. With this said the radio will be SOLD AS-IS with no return or refund.
GENERAL
Frequency Coverage MHz (RX) 118.000 - 135.995MHz (AM) 136.000 - 173.995MHz (FM)
(TX) 144.000 - 147.995 MHz
Display 7 Character Alphanumeric in English or Cyrillic
CTCSS 50 encode tones: STANDARD
50 decode tones: OPTIONAL (EJ-20U)
Tone Burst 1000, 1450, 1750, 2100Hz User Selectable
Time Out Timer 30 to 450 seconds (user selectable in 30 sec increments)
Scan Function Busy or Timed, Up or Down, Memory or VFO
Channel Spacing 5, 10, 12.5, 15, 20, 30, 50KHz steps
Memory Channels 50 memories + 1 Call Channel
Antenna Impedance 50 Ohms Unbalance
Power Supply Requirements 13.8vDC +- 10%
Current Consumption@13.8V Transmitting: Approx. 10.5 A (High Power)
Receiving: Approx. 800mA (Squelched)
Operating Tempature -10 to +60 Degrees Celsius 14 to 140 Degrees Fahrenheit
Ground Negative
Dimensions (Radio Only) 5.55in.(W) x 1.61in.(H) x 6.06in.(D) (without projections)
Weight 1.9lbs. (approx.)
TRANSMITTER
Output Power High: 50 Watts Low: 5 watts
Emission Mode F3E (FM)
Modulation System Variable Reactance FM
Max. Freq. Deviation +/- 5KHz
Spurious Emission -60dB Or Under Below Carrier Level
Tone Frequency 67.0 to 254.1Hz (50 Selections)
Operating Mode Simplex/Semi Duplex modes
TX/RX Offset Range From 0 up to +/-99.995MHz (full tuning range of the radio)
Offset may be saved as part of the information stored into any memory
CTCSS Encoder Built-In And Included As Standard
RECEIVER
Receiver System Dual-Conversion Superheterodyne
Sensitivity 12dB SINAD / better than -15dbu
Selectivity More Than +/- 6KHz at -6dB Less than +/-15KHz at -60db
Audio Output More Than 2.5 Watts @ 10% distortion
Speaker Impedance 8 Ohms
PAYPAL ACCEPTED
Shipping within Canada $ 18.00
Shipping to United States $ 21.00
FOR MORE INFO EMAIL ME AT va3hro@gmail.com
