To convert the HR2510 to 11 Meter operation:
Remove the cover on the speaker side of the radio. You will need to loosen the 4 screws (2 on each side) that secure the SYNTH PCB Frame to the chassis. - You do not need to remove these screws - You need to remove the 4 screws that secure the SYNTH PCB to the metal frame.
Now flip the SYNTH PCB over, Locate the pins of the Microprocessor. In some versions of the HR2510 there may be Grey Epoxy covering one end of the Microprocessor. You may be able to peel the epoxy right off to expose the pins of the IC. If it is not soft enough to peel off, you can use a 400W hair dryer to heat the epoxy enough to remove it.

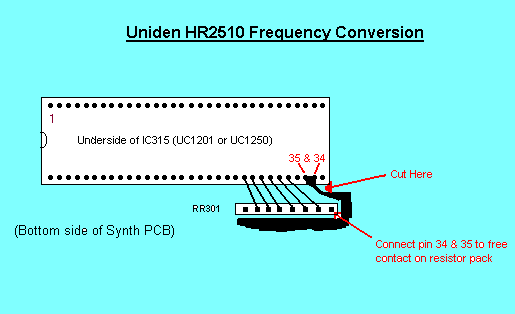

Cut the ground trace connected to pins 34 & 35, jump pins 34 & 35 to the free end of Resistor pack RR301 (see diagram)
or connect a 4.5K -15K ohm resistor from pins 34 & 35 to pin 3 of IC312 (5V regulator). (Preferred Method)
This will give complete coverage from 26.000 MHz to 29.699 MHz (Some radios will go to 29.999 MHz)
For the HR2510 Modification Main Page . Click Here.
--------------------------------------------------------------------
To convert the Lincoln to 11 Meter operation:
Remove the cover on the speaker side of the radio..
Locate the the Microprocessor on the SYNTH PCB.

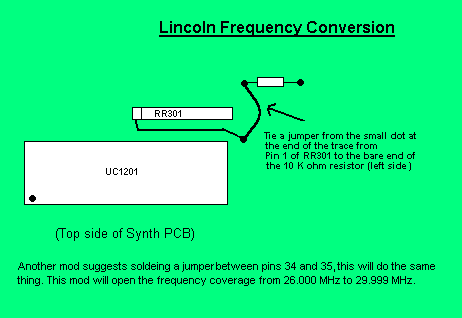

Tie a jumper wire from the thru plate via hole at the end of the trace to the bare end of the 10K ohm Resistor. (see diagram)
or connect pins 34 & 35 together..
For the HR2510 Modification Main Page . Click Here.
==========================================
The HR2600 requires a replacement of the Microprocessor, because it does not already have the 11m band programming.
You can remove the Microprocessor and replace it with one from a HR2510 or a Lincoln, and convert it using the same method listed above for the HR2510.
Another option for all of these Radios is the Chipswitch Replacement Microprocessor. - More on that later.
Remove the cover on the speaker side of the radio. You will need to loosen the 4 screws (2 on each side) that secure the SYNTH PCB Frame to the chassis. - You do not need to remove these screws - You need to remove the 4 screws that secure the SYNTH PCB to the metal frame.
Now flip the SYNTH PCB over, Locate the pins of the Microprocessor. In some versions of the HR2510 there may be Grey Epoxy covering one end of the Microprocessor. You may be able to peel the epoxy right off to expose the pins of the IC. If it is not soft enough to peel off, you can use a 400W hair dryer to heat the epoxy enough to remove it.
Cut the ground trace connected to pins 34 & 35, jump pins 34 & 35 to the free end of Resistor pack RR301 (see diagram)
or connect a 4.5K -15K ohm resistor from pins 34 & 35 to pin 3 of IC312 (5V regulator). (Preferred Method)
This will give complete coverage from 26.000 MHz to 29.699 MHz (Some radios will go to 29.999 MHz)
For the HR2510 Modification Main Page . Click Here.
--------------------------------------------------------------------
To convert the Lincoln to 11 Meter operation:
Remove the cover on the speaker side of the radio..
Locate the the Microprocessor on the SYNTH PCB.
Tie a jumper wire from the thru plate via hole at the end of the trace to the bare end of the 10K ohm Resistor. (see diagram)
or connect pins 34 & 35 together..
For the HR2510 Modification Main Page . Click Here.
==========================================
The HR2600 requires a replacement of the Microprocessor, because it does not already have the 11m band programming.
You can remove the Microprocessor and replace it with one from a HR2510 or a Lincoln, and convert it using the same method listed above for the HR2510.
Another option for all of these Radios is the Chipswitch Replacement Microprocessor. - More on that later.
