Old RF amplifier Effect SA-1

Tech5

New Member
Jun 24, 2023
15
5
3
Sweden near the Arctic Circle
Does any of you have any experience with this type of Effect SA-1 amplifier? These were manufactured in the early 70's and back then the price tag was set at around 60 USD. The SA-1 has a pair of 12JB6 tubes but some of these amps had 6JB6; which the only difference is the filament voltage; 12 or 6 volts. The one in my pictures is made for 12 volts, but there was a model also for European mains voltages, IE 230 volts. I will give this amp to a good friend of mine as I do not need it and besides, he is also a real collector - which I am not - of old CB radio stuff.


Attachments

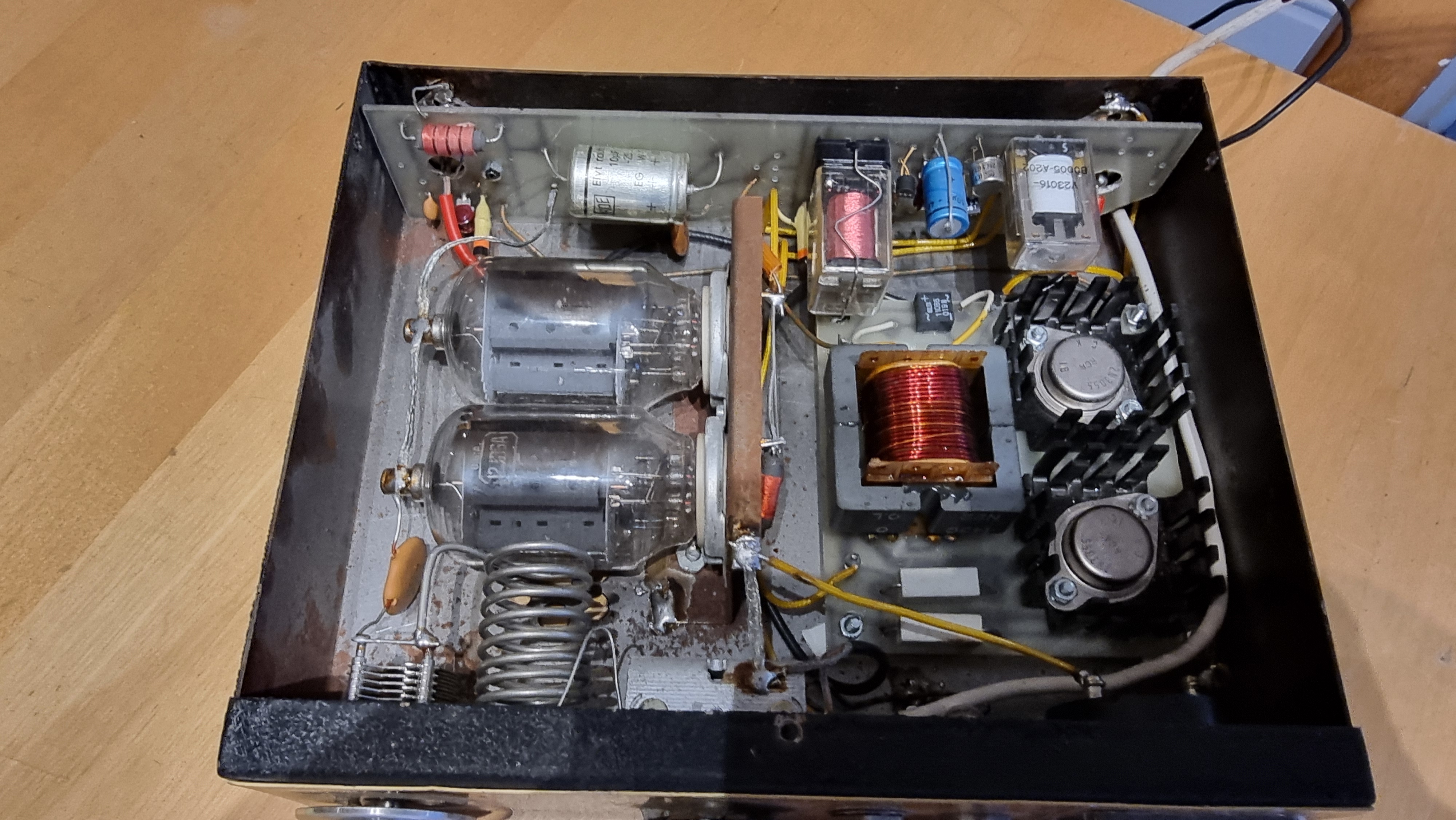

  • Effect SA-1 1.jpg
    Effect SA-1 1.jpg
    2 MB · Views: 22

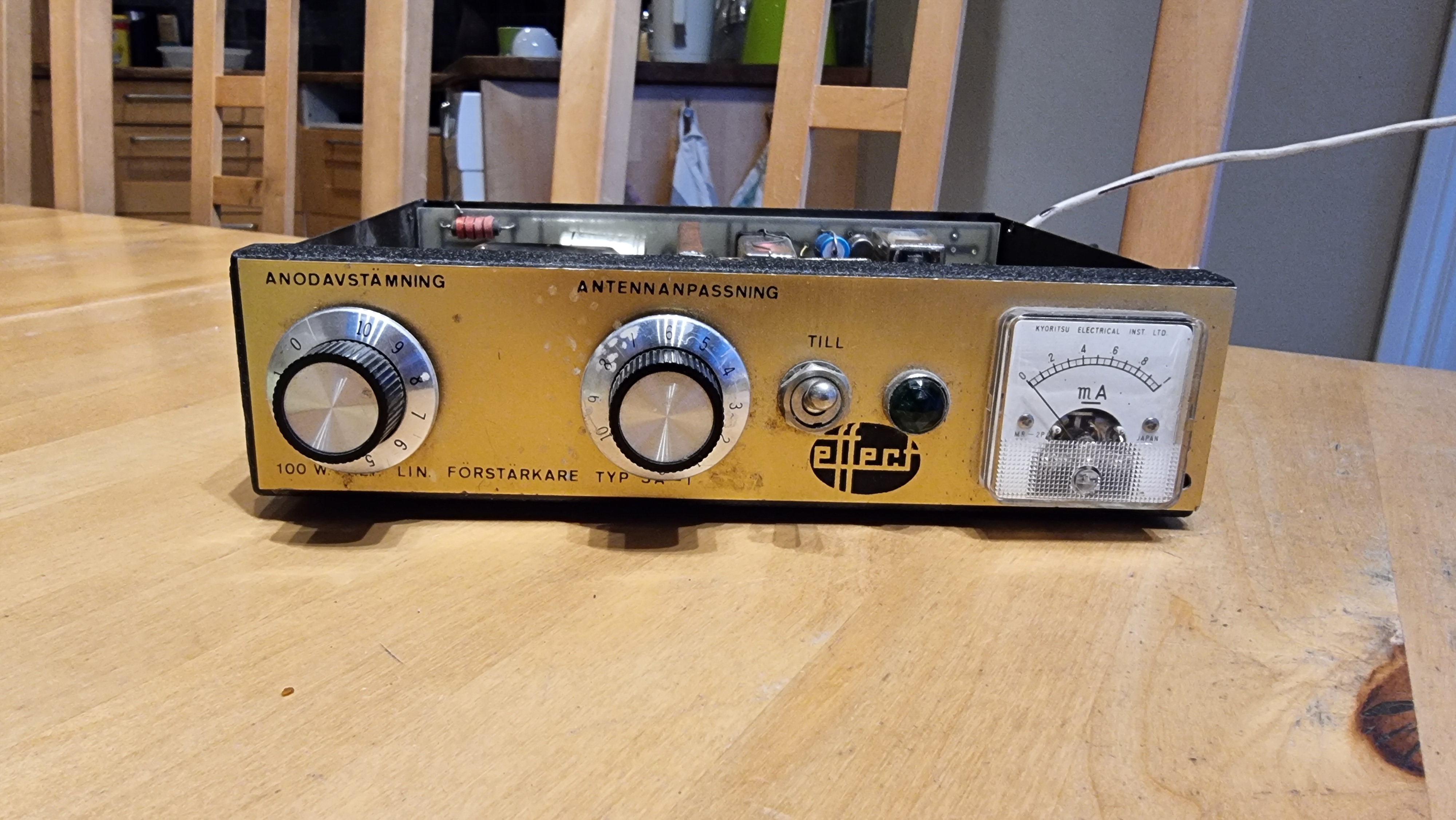

  • Effect SA-1 2.jpg
    Effect SA-1 2.jpg
    1.6 MB · Views: 20
