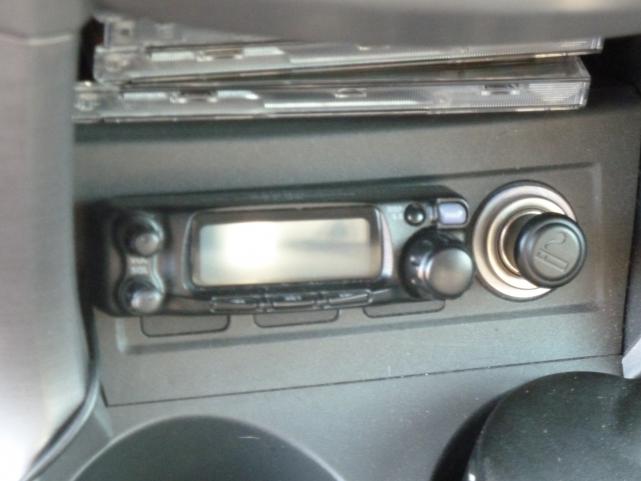

Detachable front panel of FT90R mounted under dash.

Fused battery wires connected to the vehicle battery under the bonnet (hood).

I made a hole just big enough for the battery wires in the existing rubber nipple located on the bulkhead partition under the bonnet (hood).

Fused lead from battery to existing rubber grommet located on bulkhead.

Detachable front panel of FT90R mounted under dash.

Close up of modified antenna mount.

Antenna mounting on rear door

Detachable front panel of FT90R mounted under dash.

G3TRH
Jul 1, 2012

There are no comments to display.

Media information

Album: Toyota RAV4 mobile installation

Added by: G3TRH

Date added: Jul 1, 2012

View count: 2,104

Comment count: 0

Rating: 0.00 star(s) 0 ratings
