I made a hole just big enough for the battery wires in the existing rubber nipple located on the bulkhead partition under the bonnet (hood).

Diamond NR-790 144/430 MHz mobile antenna fitted to rear door of the RAV4. I cut the lip off a Diamond DPK-TR antenna mount so that the door will open

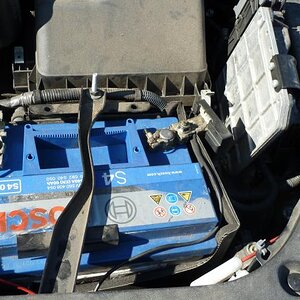

Fused battery wires connected to the vehicle battery under the bonnet (hood).

I made a hole just big enough for the battery wires in the existing rubber nipple located on the bulkhead partition under the bonnet (hood).

Fused lead from battery to existing rubber grommet located on bulkhead.

Detachable front panel of FT90R mounted under dash.

Close up of modified antenna mount.

Antenna mounting on rear door

I made a hole just big enough for the battery wires in the existing rubber nipple located on the bulkhead partition under the bonnet (hood).
