Cobra Cobra 148GTL DX (Early PC879 MB8719) and (Late PB010 MC145106)

Links

• Owner's Manual

Service Manual

• Page 1 to 31 (148GTL DX Early Version)
• Page 32 to 63 (148GTL DX Late Version)

Diagrams

• Early Version (PC879) MB8719

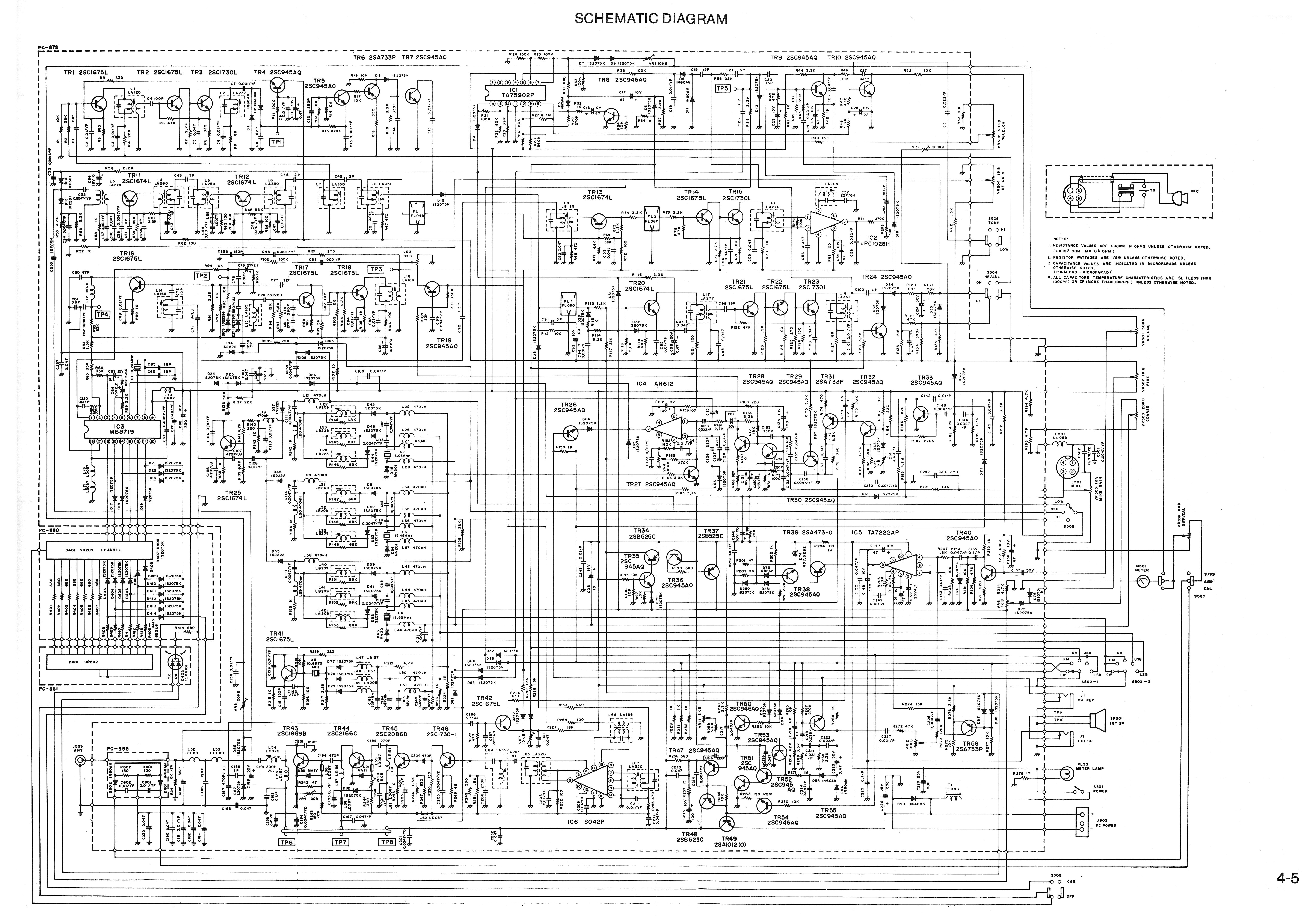

• Schematic Diagram (Page 4 / 5)
• Schematic Diagram (Page 4 / 5)
• Chassis Wiring Diagram (Page 6 / 7)
• Main PCB Layout Top (Page 14 / 15)
• Main PCB Copper Layout (Page 16 / 17)

Late Version (PB010) MC145106

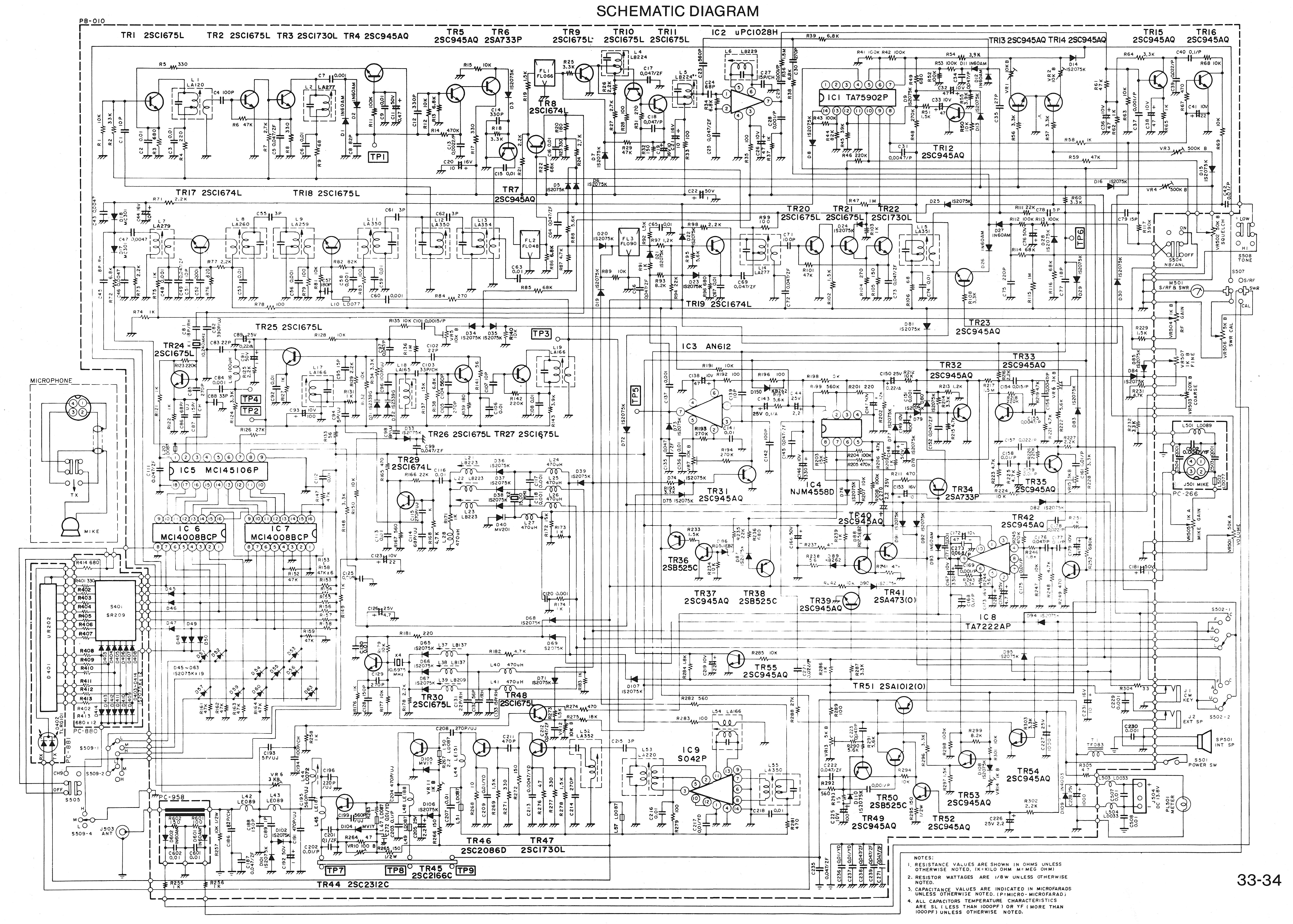

• Schematic Diagram (Page 33 / 34)
• Schematic Diagram (Page 33 / 34)
• Chassis Wiring Diagram (Page 35 / 36)
• Main PCB Layout Top (Page 44 / 45)
• Main PCB Copper Layout (Page 42 / 43)

Mic Wiring

Stock
1- Audio
2- Shield
3- Receive
4- Sw Com
5- Transmit

Astatic (4 wire)
1- White
2- N/C
3- Black
4- Shield
5- Red

Astatic (6 wire)
1- White
2- Shield
3- Black
4- Blue
5- Red
Yellow N/C

Daiwa EM-500
Cobra CA Series
1- Red
2- Shield
3- Blue
4- Black
5- White

Galaxy DC-521S (4 wire)
1- Yellow
2- N/C
3- Black
4- Shield
5- Red

Galaxy CB-660EI
1- White
2- Shield
3- Blue
4- Black
5- Red

Sadelta
1- White
2- N/C
3- Green
4- Shield
5- Brown

Turner
1- White
2- Shield
3- Black
4- Red
5- Blue
Yellow NC
