Cobra Cobra 90LTD

Service Manual
Page 1 to 15
Page 16 to 31

Diagrams

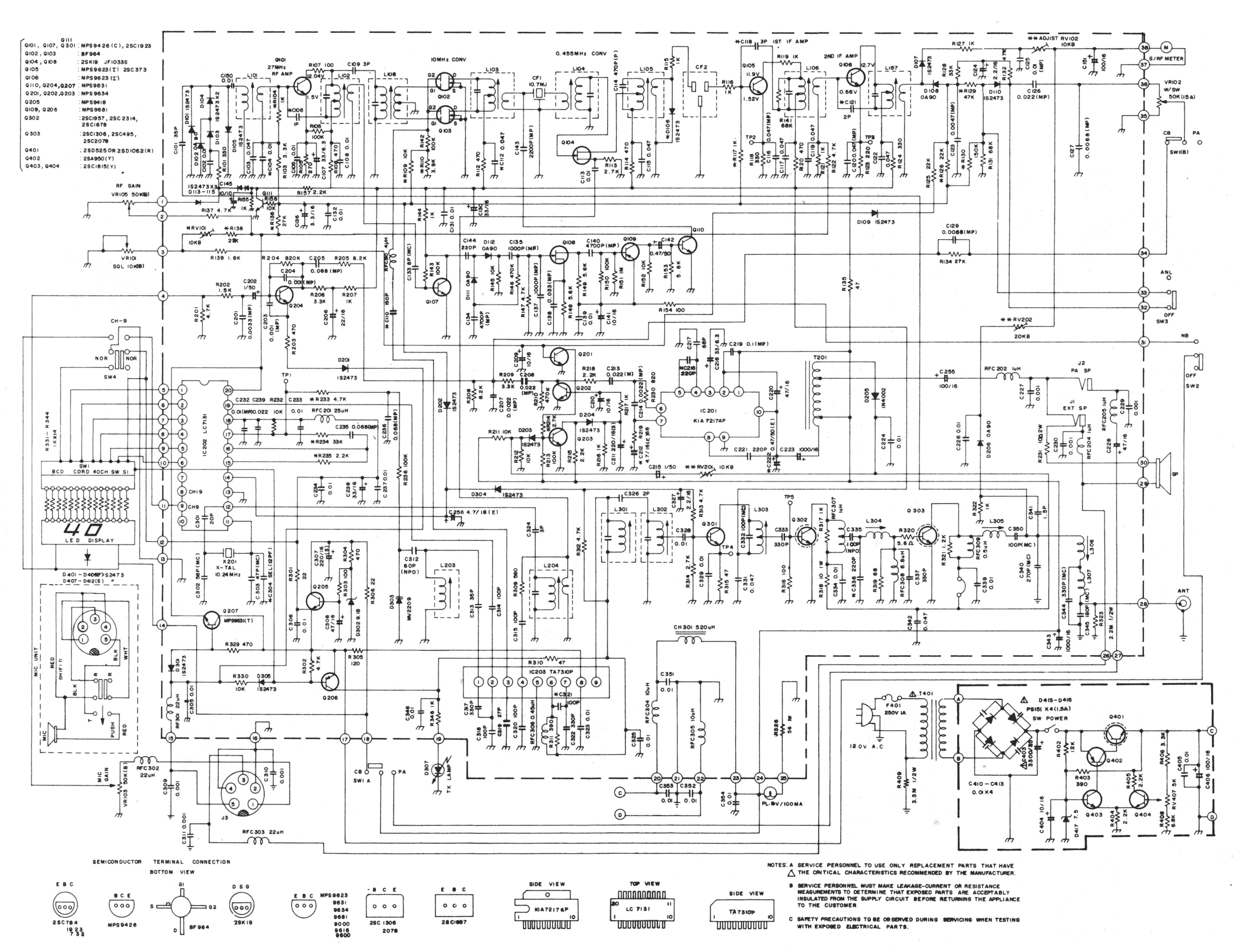

Schematic Diagram

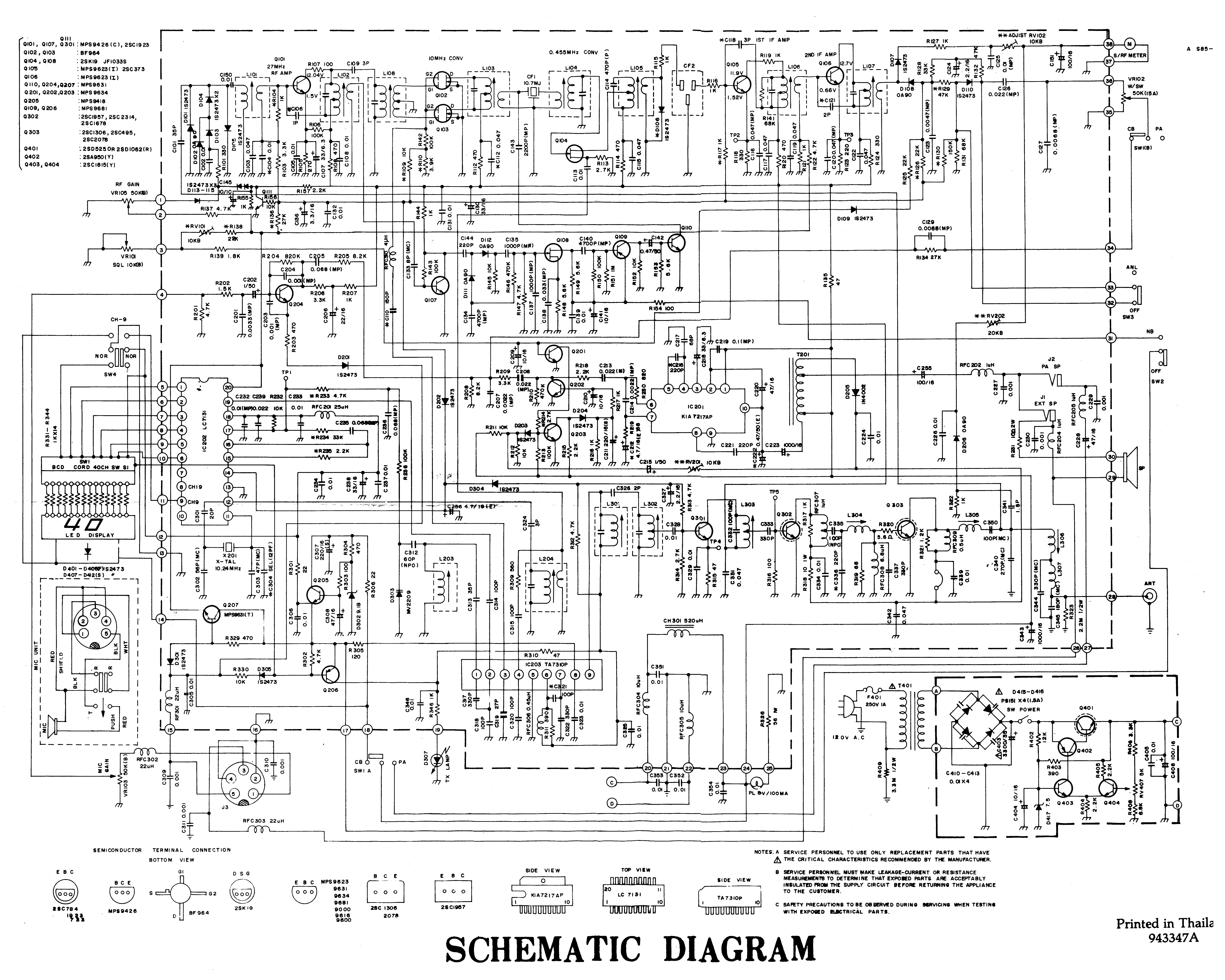

Schematic Diagram

Owner's Manual Diagrams
Schematic Diagram
Schematic Diagram

Mic Wiring

Stock
1- Audio
2- Shield
3- Receive
4- Sw Com
5- Transmit

Astatic (4 wire)
1- White
2- N/C
3- Black
4- Shield
5- Red

Astatic (6 wire)
1- White
2- Shield
3- Black
4- Blue
5- Red
Yellow N/C

Daiwa EM-500
Cobra CA Series
1- Red
2- Shield
3- Blue
4- Black
5- White

Galaxy DC-521S (4 wire)
1- Yellow
2- N/C
3- Black
4- Shield
5- Red

Galaxy CB-660EI
1- White
2- Shield
3- Blue
4- Black
5- Red

Sadelta
1- White
2- N/C
3- Green
4- Shield
5- Brown

Turner
1- White
2- Shield
3- Black
4- Red
5- Blue
Yellow NC
