Retevis RT97L UHF Repeater DB9 & Power Pinout

Added by Moleculo
Create date Aug 24, 2025
Tags

gmrs retevis uhf

Overview Gallery

Write a review Ask a question

Retevis Models: Rt97L

Pinout diagrams for both the DB9 and power connectors.

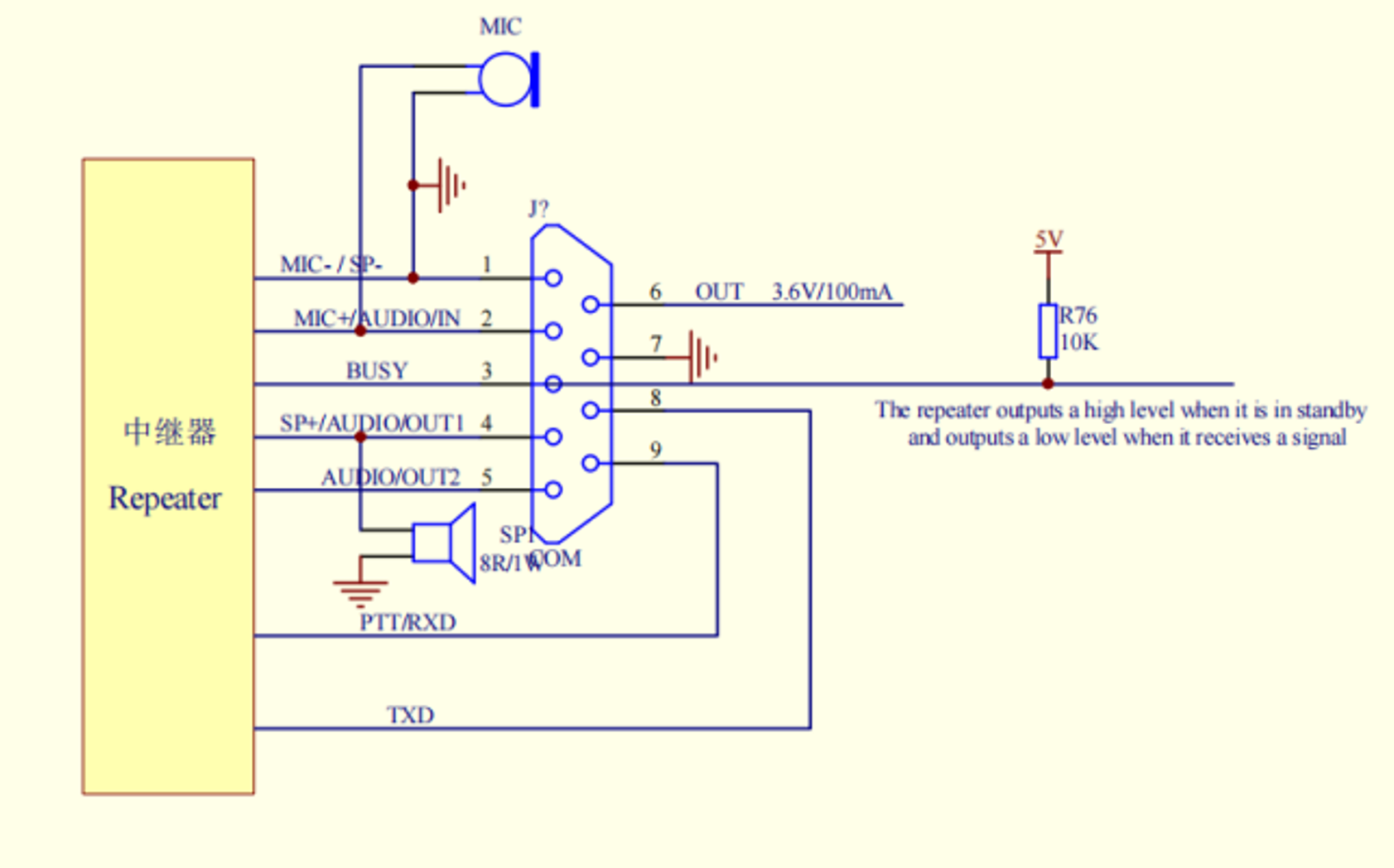

RT97L DB9.png

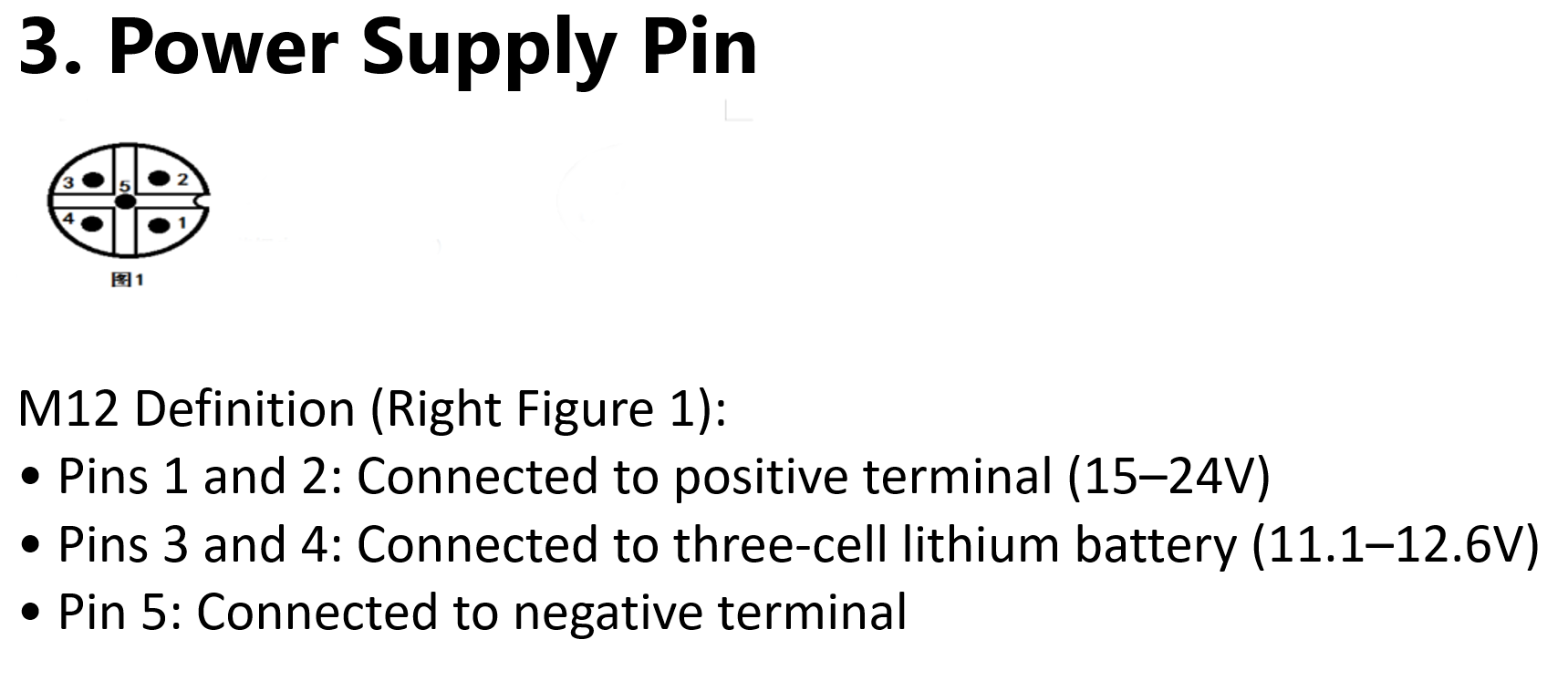

rt97L power pinout.png
