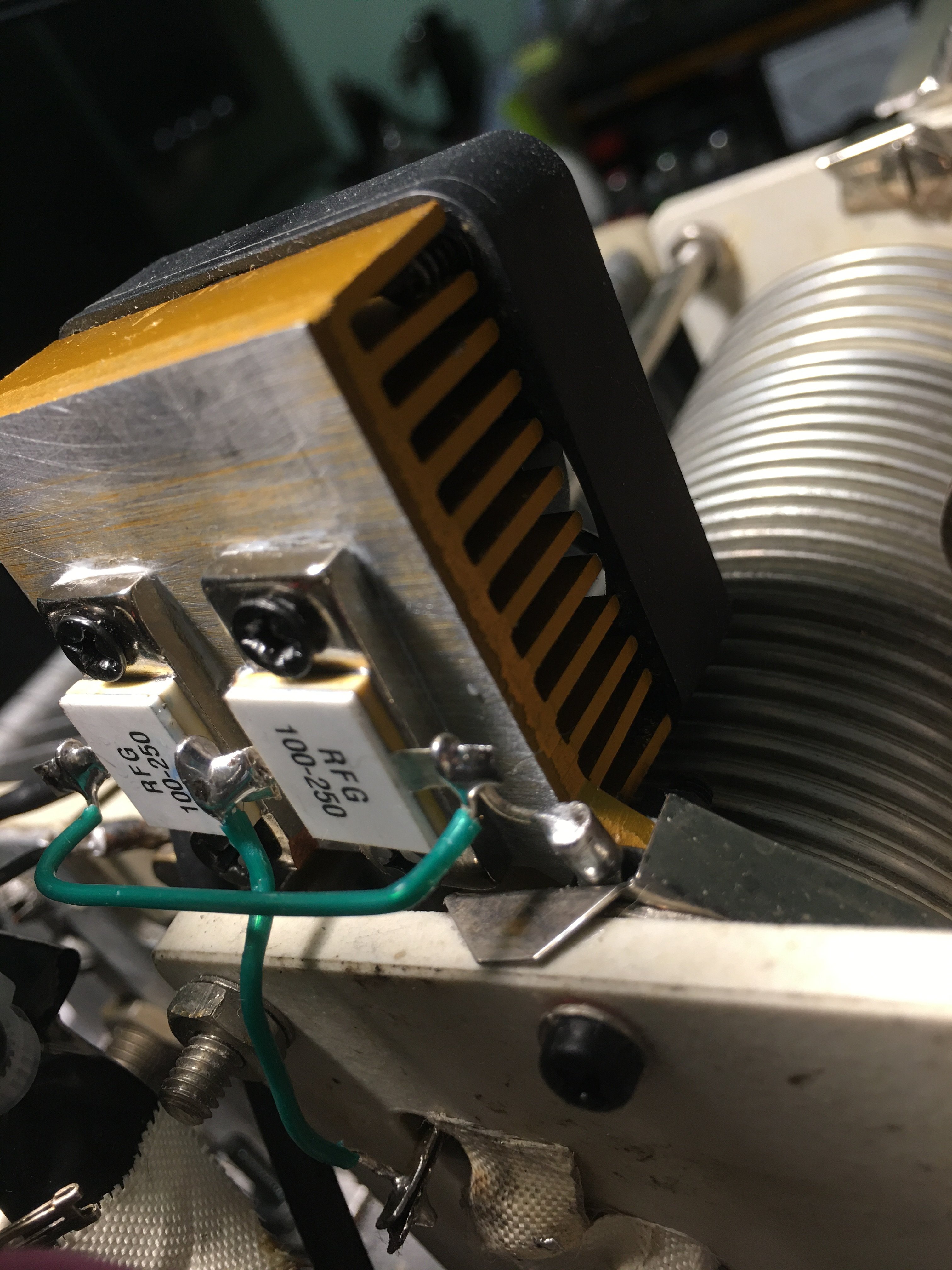

Heatsink isolated from coil and RF Termination Res. The 1st RF Term Res used the flange as R terminal. The R's in pic have separate leads each side of R.
