Tube Amp for 11 meters

[Master Chief]

I'm not touching this one. I speak a different language when it comes to amplifier output levels and exactly what modulators really are.

People think "modulators" are "loud amps with lots of swing". Someone needs to educate the masses and you speak the CORRECT language!



[Captain Kilowatt]

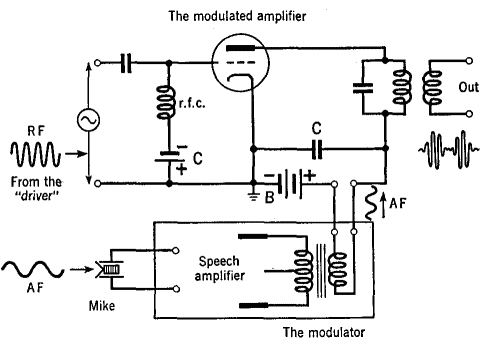

A REAL modulator in it's simplest form. Note it has separate RF and audio inputs



[W5LZ]

Also a "high-level" modulator. Meaning it feeds the RF generator from the 'high-voltage' side, not the 'low-voltage' side. With solid state stuff, not all that difficult a thing to do since there isn't a lot of 'high' voltage present, sort of, easier parts compatibility. With 'hollow-state' stuff, there will be some pretty 'hefty' voltages present and applying that AF can get tricky, not to mention dangerous, sort of (that 'golden screwdriver' better be insulated! ).
Been a while since I've seen a schematic like that...long enough that I can't remember if it's a 'Colpits' or what. Oh well, who cares...
- 'Doc



[BOOTY MONSTER]

For the 1KW+ range, I like the BlackCat JB2000 running off of 220V.

just wondering is that the same blackcat that has amps for sale at ALA ? i realize their solidstate and not tube . how do the compare to texas star or messenger or cobra amps ? thanks .

http://amateurlinearamplifiers.com/...s&user=071110152236&action=search&source=menu



[AudioShockwav]

I think the JB 2000 had a few 3-500Z`s in it.
Wawassee built them a long time ago, back when they built the JB-12 and the JB-150

73
Jeff



[Master Chief]

The JB-2000 is a 11 meter mono band Heathkit SB-220. It runs a pair of 3-500Z tubes and is a good amplifier. Not great mind you, but a good ol amplifier. Its #2 on my list of amplifiers......right behind the Pride DX-300!



[bigred222]

Smackdown i have just what you need


your nitro would make a good driver



[Unit 194]



[SmackDown]

that top-hat 220 looks good but after reading every response I think changing from the 6LQ6 sweep tube to the EL519 tube is more cost effective because I don't want to trash my Phantom. I found a source for the EL519 equivalent for $10 a tube. I need clarification on a few things now. I know the existing wire going to pin 3 would need to go to pin 9 and a jumper needs to be installed between pin 2 and pin 3. After those changes I'm not clear on what my next step should be. Biasing ??? Cap value changes ??? Something else ??? Anything else ??? Any suggestions ??? I'm sure that within the membership here the things I need to know to put the fire in the wire can be ascertained.


Wishing all a very happy gobble-gobble day and I'm sittin' back.


The unknown soldier in the keystone is marchin' on



3's



[SmackDown]

I passed my tech exam last night (31 of 35)...still looking for
definitive instructions on how to convert from 6LQ6's to EL519's



3's



[Unit 194]

I passed my tech exam last night (31 of 35)...
3's

Congratulations! 8) 8) 8)



[SmackDown]

Thanks ...starting the training for the general class thursday.



[1200RI]

Get a Ameritron.I run a Al-1200 and when you get your ticket you are ready to go on the ham bands.Ameritrons are easy to convert to 10/11/12 meters.You will get a real 1800watts plus PEP on all bands and the most rugged tube made!
