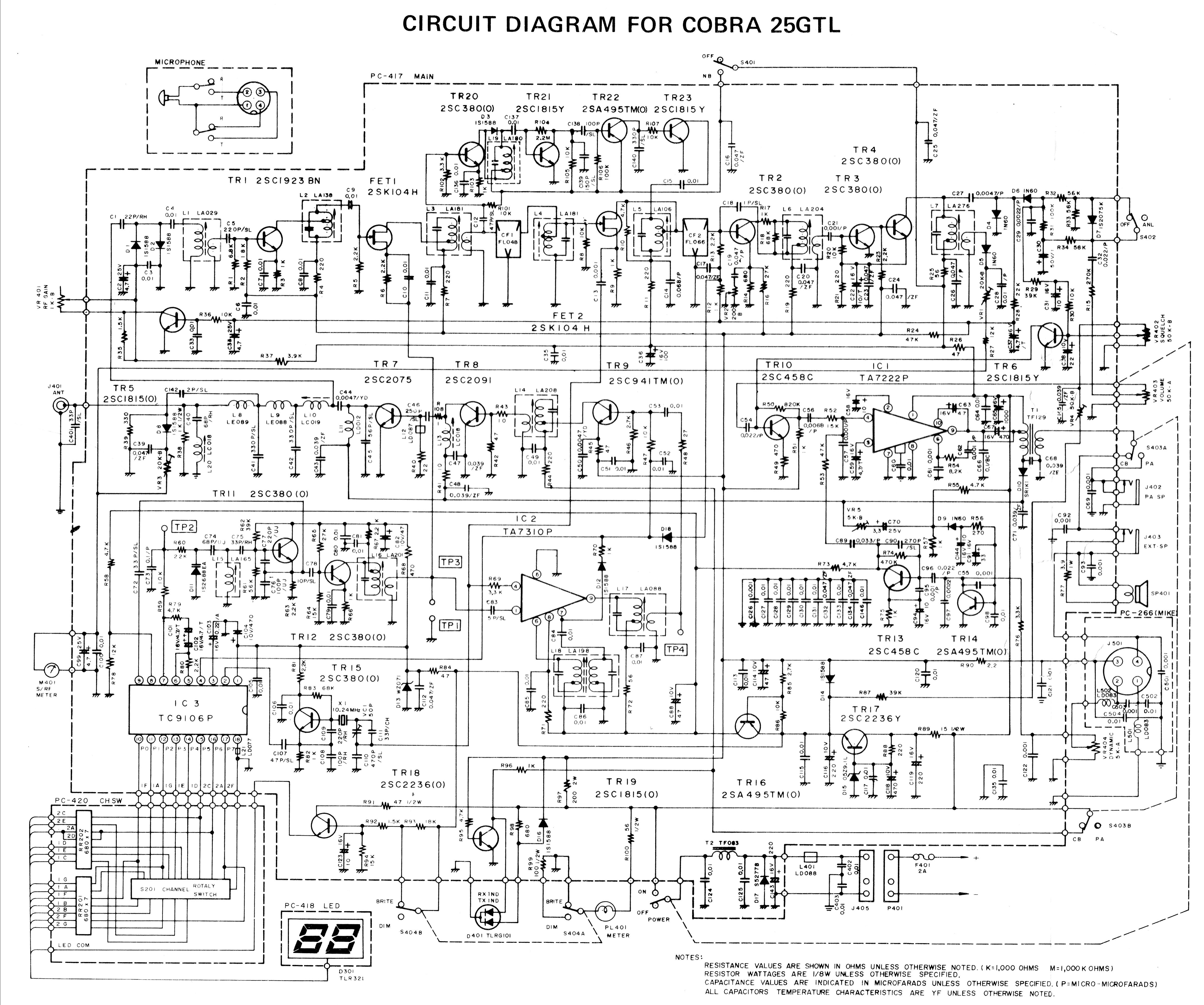

| Owner's Manual DIAGRAMS Schematic Diagram (8.5x11) Schematic Diagram (11x17) Schematic Diagram Parts List Mic Wiring Stock 1- Shield 2- Audio 3- Transmit 4- Receive Astatic (4 wire) 1- Shield 2- White 3- Red 4- Black Astatic (6 wire) 1- Shield & Blue 2- White 3- Red 4- Black Yellow NC Daiwa EM-500 Cobra CA Series 1- Shield & Black 2- Red 3- White 4- Blue Galaxy DC-521S (4 wire) 1- Shield 2- Yellow 3- Red 4- Black Galaxy CB-660EI 1- Shield & Black 2- White 3- Red 4- Blue Sadelta 1- Shield 2- White 3- Brown 4- Green Turner 1- Shield & Red 2- White 3- Blue 4- Black Yellow NC |
