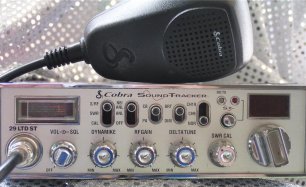

Cobra Cobra 29LTD, 29LTD ST, 29WX ST

Links

• 29LTD ST Owner's Manual
• 29WX ST Owner's Manual

DIAGRAMS

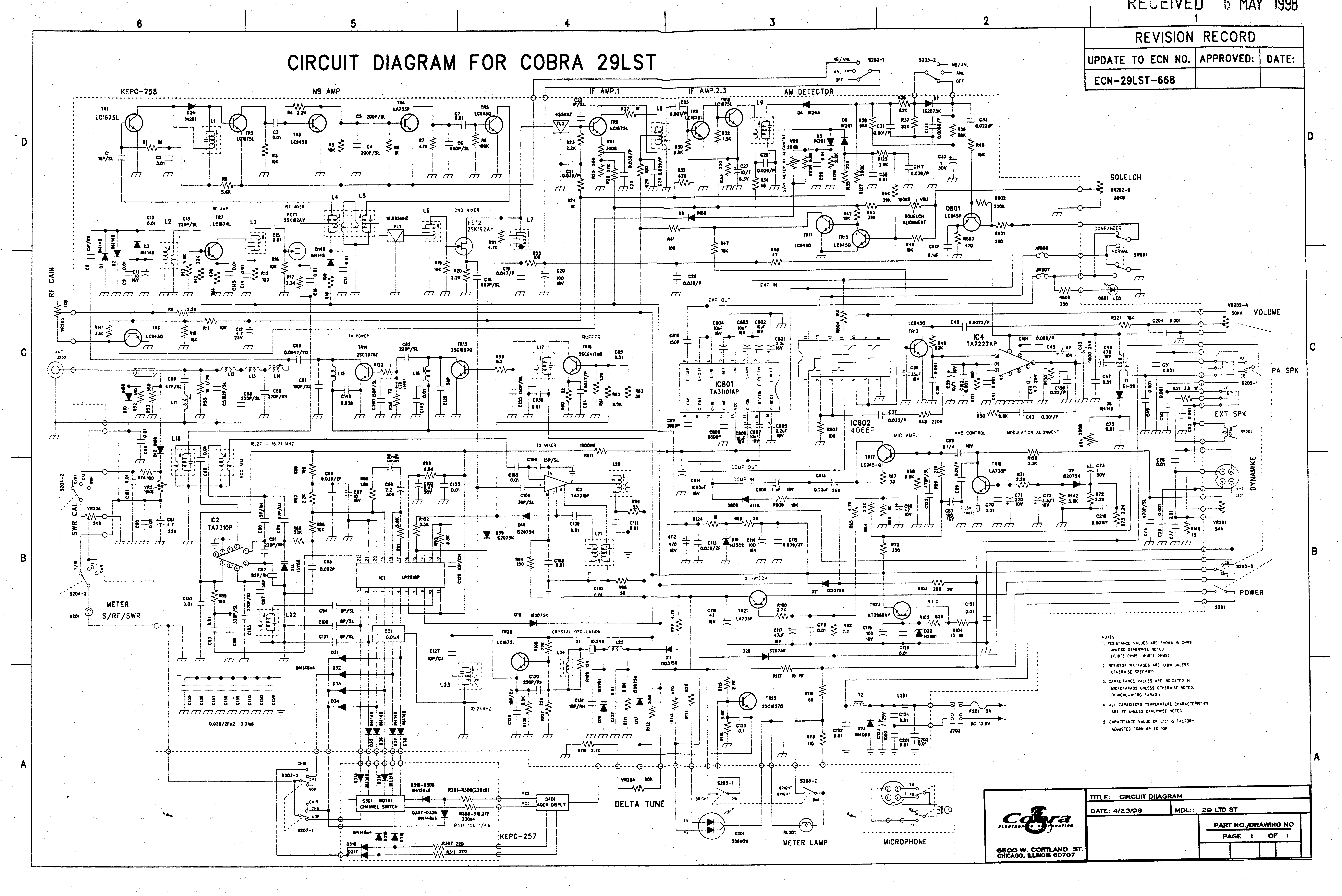

• 29LTD ST Schematic Diagram
• 29LTD ST Schematic Diagram
• 29WX ST Schematic Diagram
• WX Schematic Diagram

29LTD, 29LTD ST, 29WX ST Factory Service Manual

• Page 1 to 11
• Page 12 to 34

29LTD Factory Service Manual

• 29LTD
• 29LTD Schematic Diagram
• 29 LTD Classic Schematic Diagram (Courtesy of Rick Jackson)

Mic Wiring

Stock
1- Shield
2- Audio
3- Transmit
4- Receive

Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series
1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
