Galaxy DX Radios Galaxy DX Radios DX44V


Galaxy DX Models
  1. DX44V
LINKS

RADIO MODIFICATIONS

ALIGNMENT PROCEDURES

VCO Frequency Generation Chart

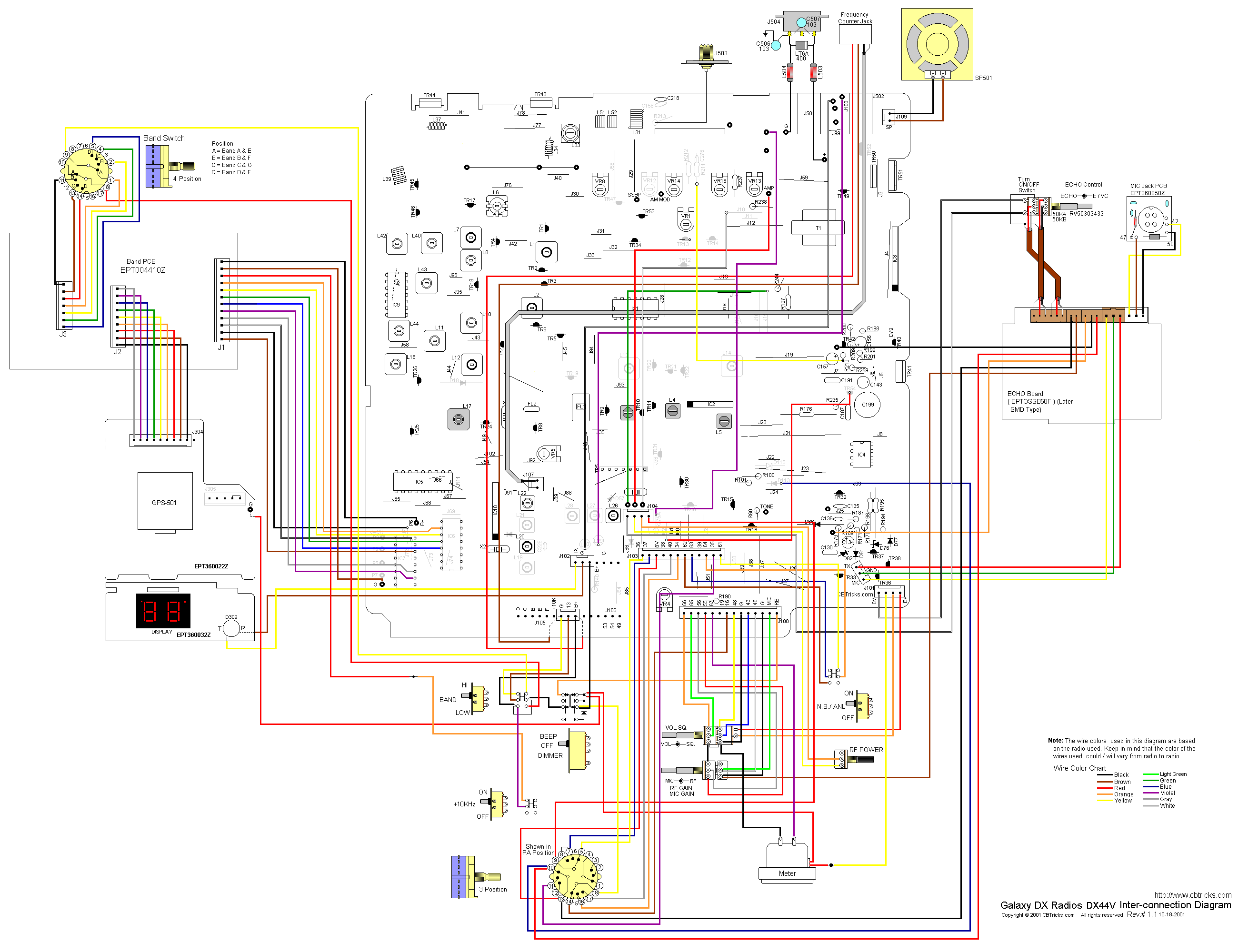

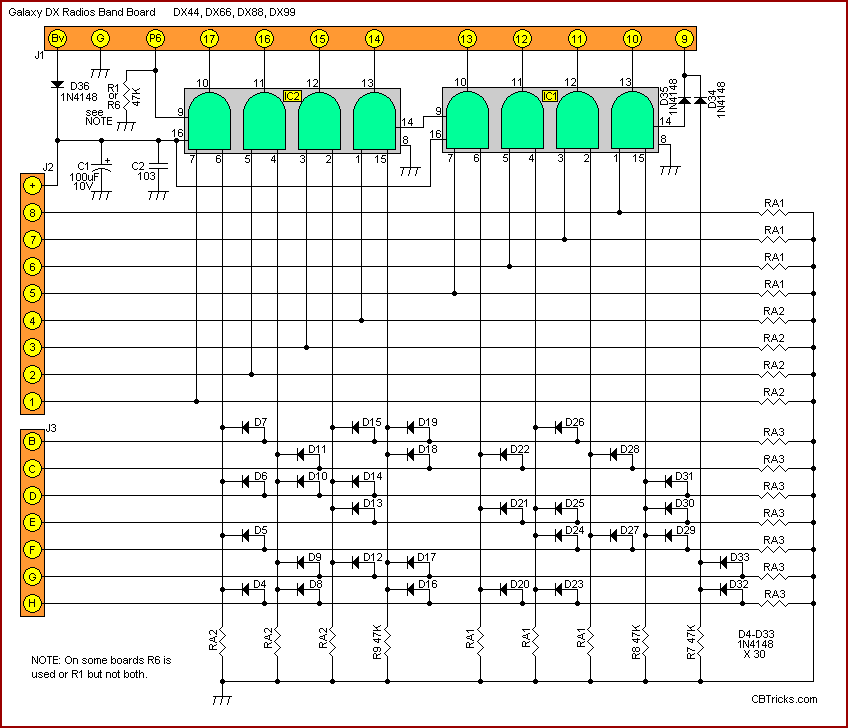

DIAGRAMS

SEMICONDUCTOR INFORMATION

Layouts and Parts

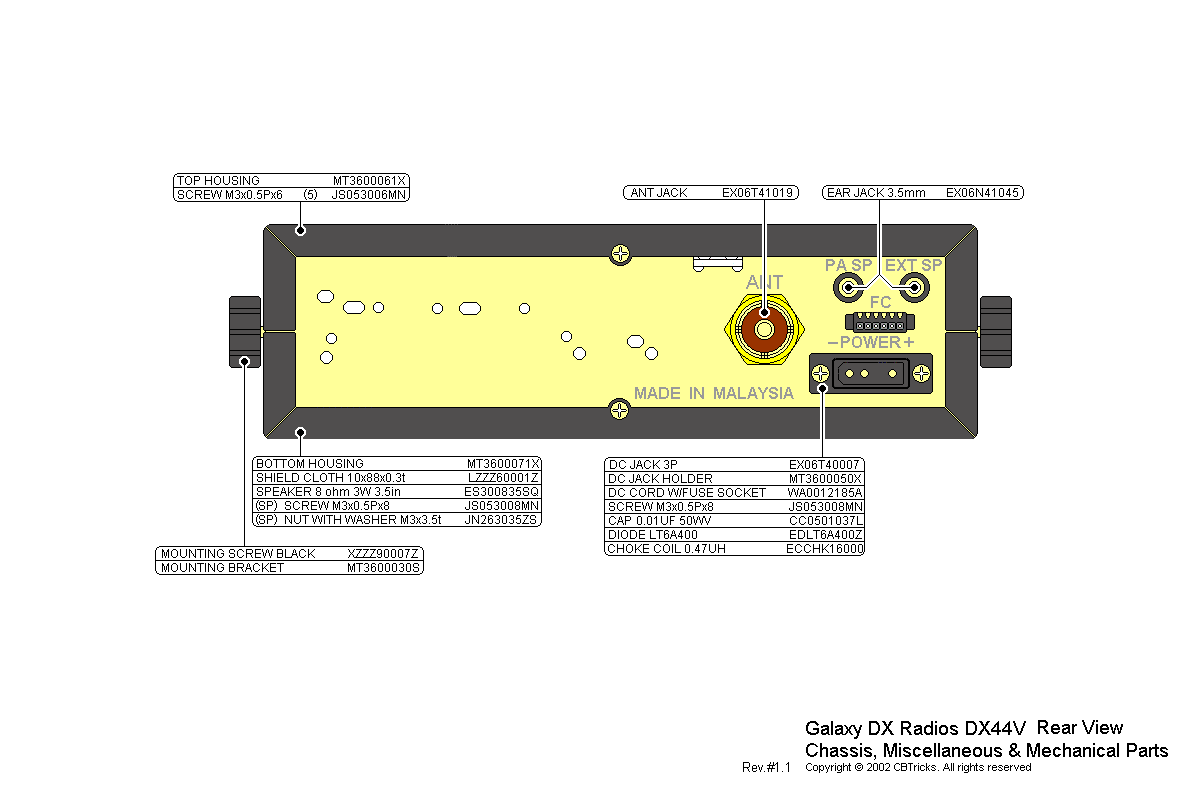

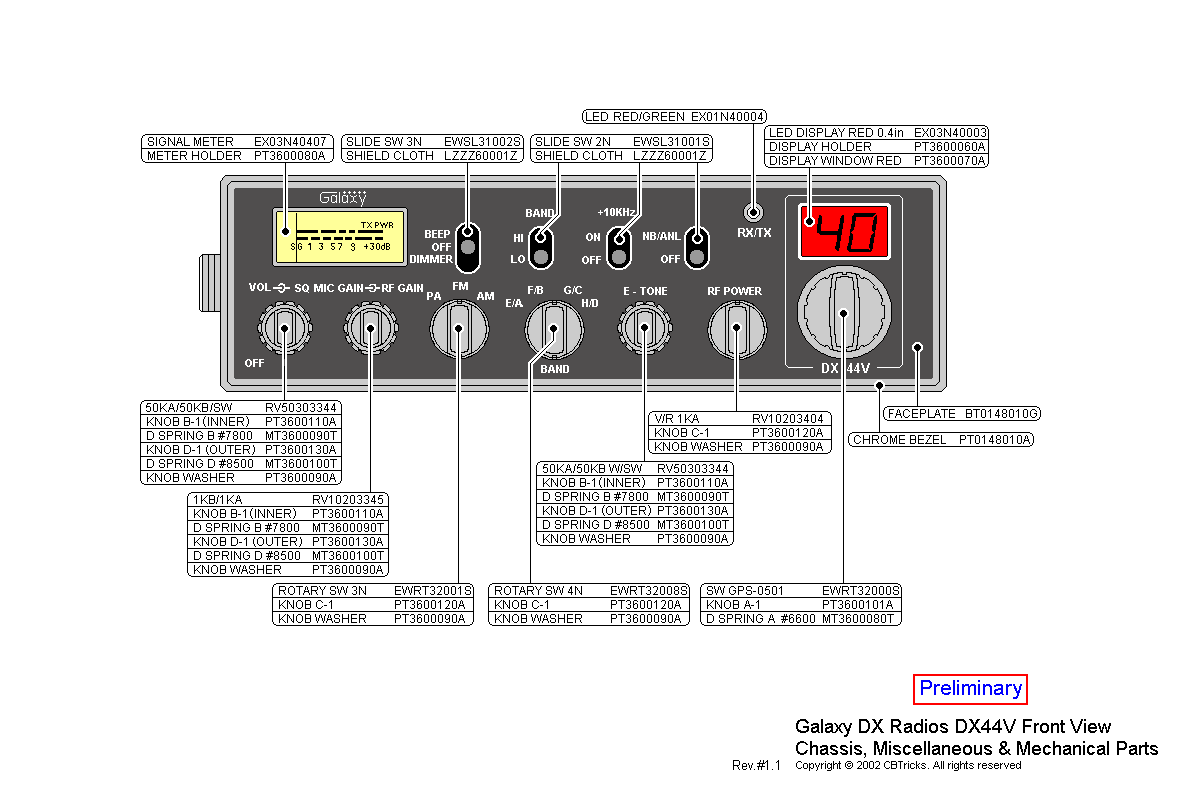

Chassis, Miscellaneous & Mechanical Parts

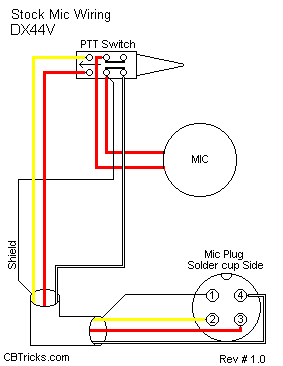

Mic Wiring Diagram

Stock
1- Shield (Ground)
2- Yellow (Audio)
3- Red (Transmit)
4- White (Receive)

Astatic
(4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series

1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
