Ranger (RCI) Ranger RCI-2970DX

Manuals

• Owner's Manual
• Factory Service Manual

Diagrams

• Schematic Diagram
• CPU PCB Schematic Diagram
• Block Diagram

Radio Modifications

• Clarifier Unlock

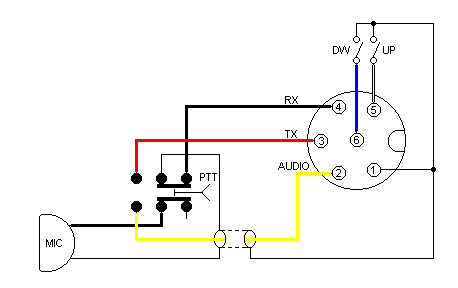

Mic Wiring

Stock Mic
1. Ground Shield
2. Audio Yellow
3. Transmit Red
4. Receive Black
5. CH. Up White
6. CH. Down Blue

Turner 4-Wire
1. Ground Shield
2. Audio White
3. Transmit Black
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Turner 6-Wire
1. Ground Shield & Red
2. Audio White
3. Transmit Blue
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Astatic 4-Wire
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Astatic 6-Wire
1. Ground Shield & Blue
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C
