Motors in series have full amperage, but half voltage.
Motors in parallel have full voltage, but half amperage.
So, if you had a 110V 500A system:
Each motor in series would see (a maximum of) 500A @ 55V.
Each motor in parallel would see (a maximum of) 250A @ 110V.
With DC motors, they create "Back EMF", essentially a voltage that has to be overcome, proportional to their RPM.
So, you start off in series, so you get maximum power (Amperage), and ramp up until the current you are putting in meets the back EMF.
Then you switch to parallel, so you can continue accelerating, albeit not quite so strongly (Higher voltage overcomes the back EMF, but the halved amperage means you don't accelerate so quickly).
You would thus end up with a torque curve something like this:
While the power seen by the motor (This is for one motor) looks like this:
Without switching, the graph speed/time graph would look like this (with switching shown in [dotted line):
Motors in parallel have full voltage, but half amperage.
So, if you had a 110V 500A system:
Each motor in series would see (a maximum of) 500A @ 55V.
Each motor in parallel would see (a maximum of) 250A @ 110V.
With DC motors, they create "Back EMF", essentially a voltage that has to be overcome, proportional to their RPM.
So, you start off in series, so you get maximum power (Amperage), and ramp up until the current you are putting in meets the back EMF.
Then you switch to parallel, so you can continue accelerating, albeit not quite so strongly (Higher voltage overcomes the back EMF, but the halved amperage means you don't accelerate so quickly).
You would thus end up with a torque curve something like this:
Code:
| | ___________|
| | ___/ |
| | ___/ |
|<- Series ->| ___/ |
| | ___/ |
| | ___/ |
R |___/ |
P __/ |
M _/ | |
| _/ | |
| _/ |<----------- Parallel ------------>|
| _/ | |
| / | |
|/ | |
+----------------------TIME------------------------While the power seen by the motor (This is for one motor) looks like this:
Code:
|----500A----,
| |
| |
| |
| |
| |
| |
| '--------------AMPS-------------250A-
|
| ,==============VOLTS============110v=
| |
| |
|====55v====='
|
+-------------------------------------------------Without switching, the graph speed/time graph would look like this (with switching shown in [dotted line):
Code:
| ............
| .../
| .../
| .../
| .../
| .../
R ____________________________________
P __/
M _/
| _/
| _/
| _/
| /
|/
+----------------------TIME------------------------
[code/]

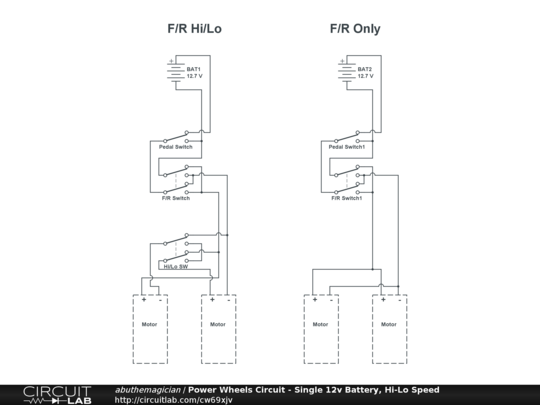

So the question is...
How?
Dramatis personata:
[URL]https://www.diodes.com/assets/Datasheets/DSS2540M.pdf[/URL]

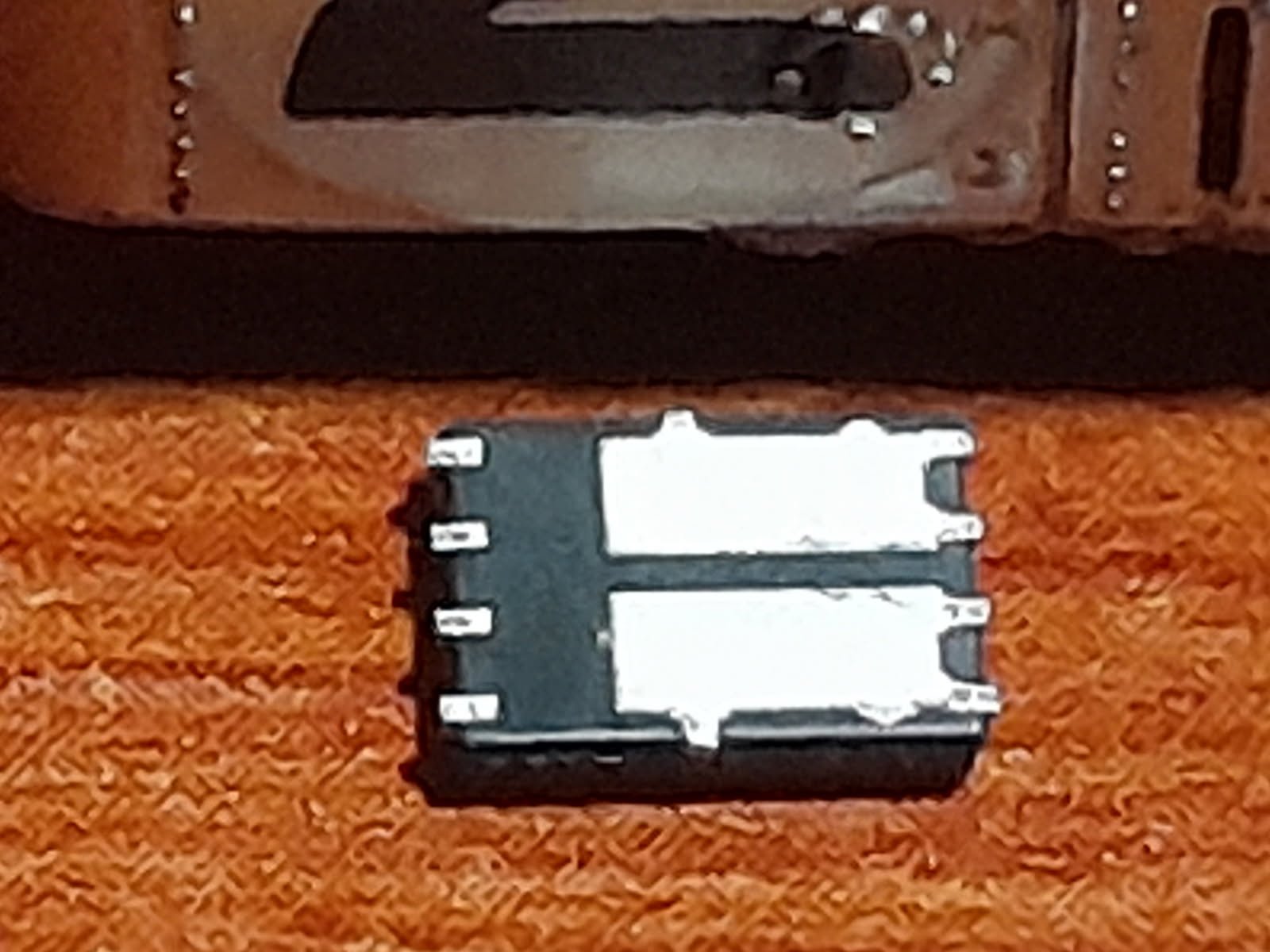

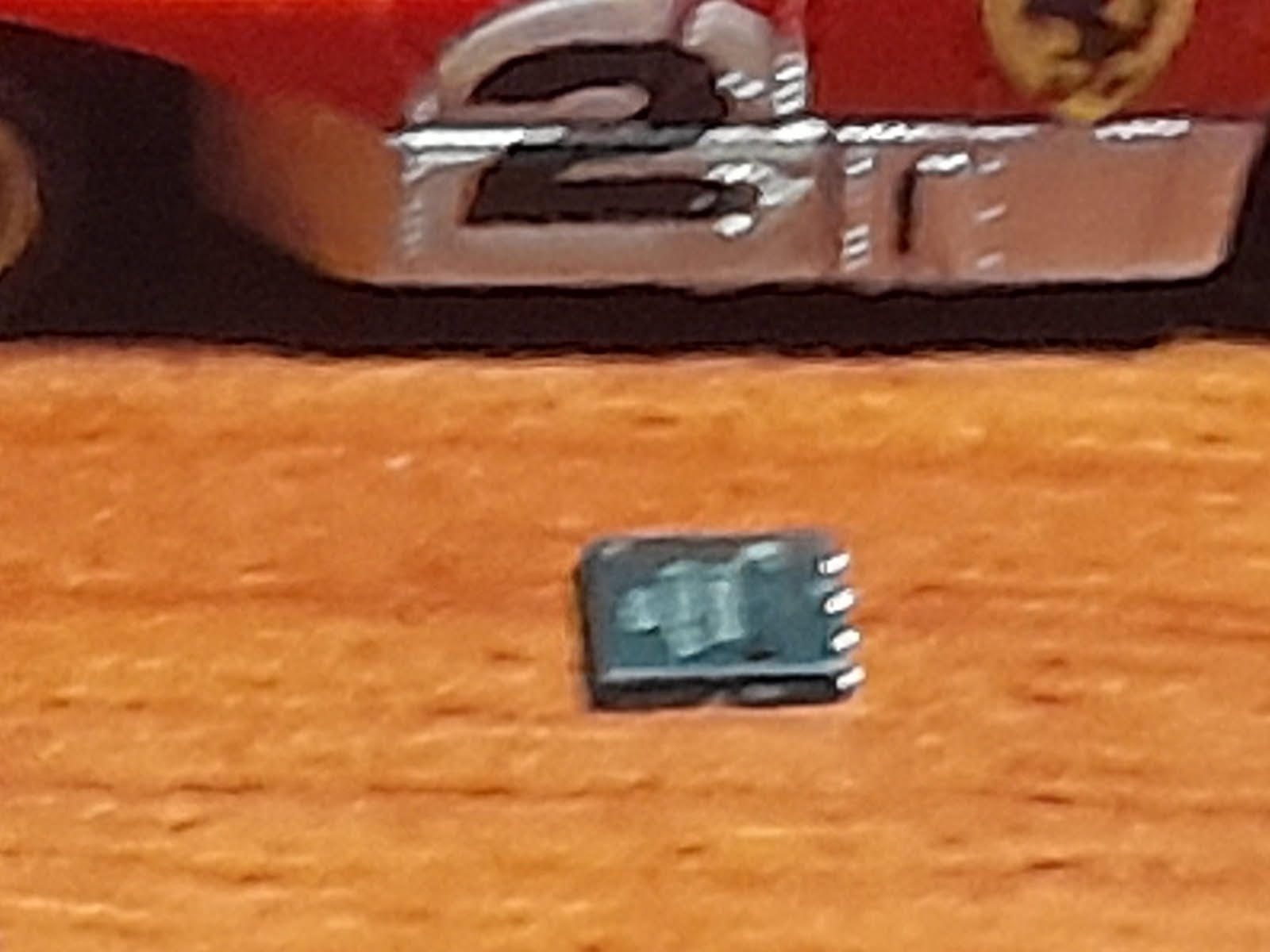

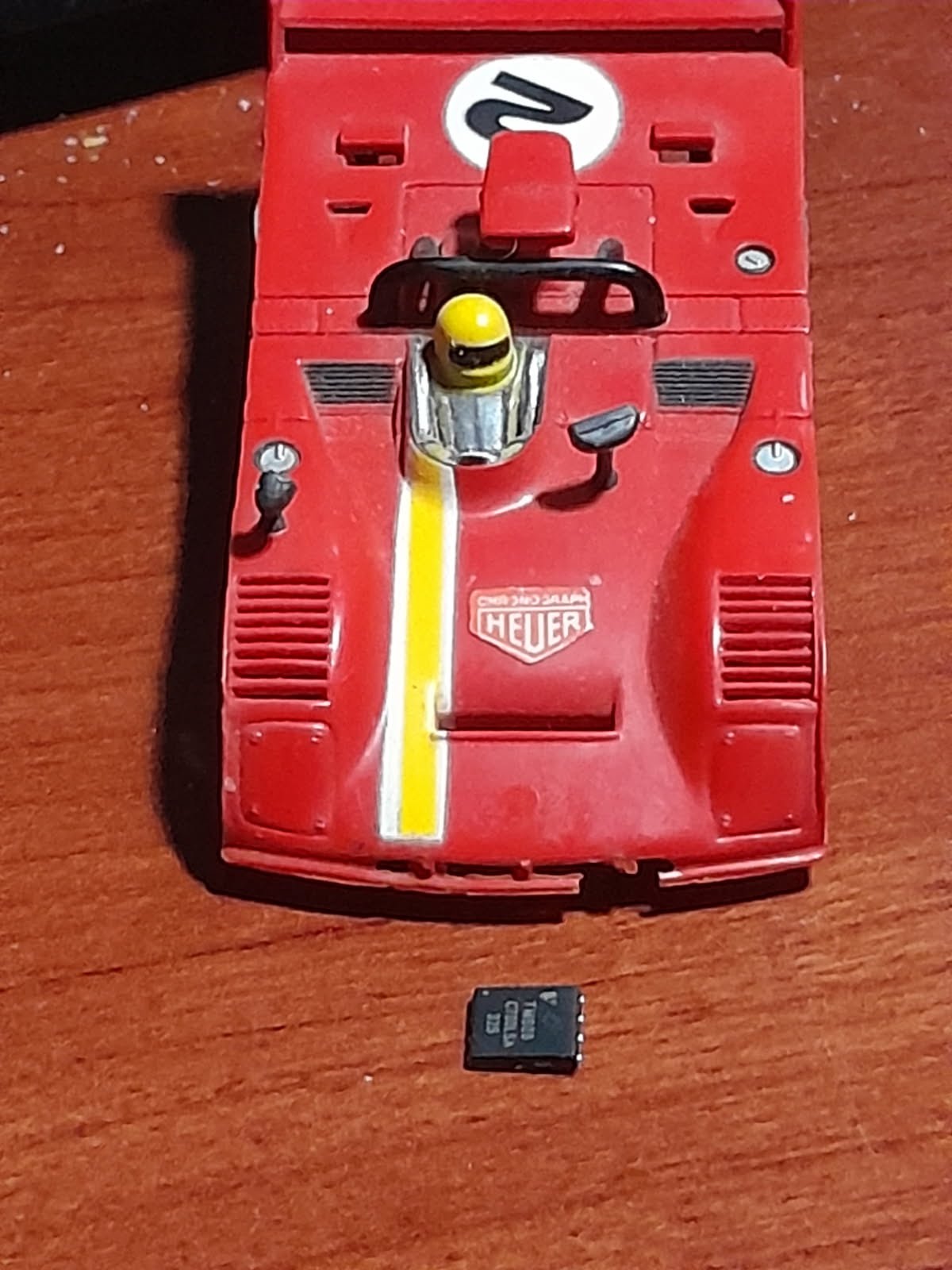

[URL]https://viitorsemi.com/wp-content/uploads/VTM606C700LSA_datasheet.pdf[/URL]
[URL]https://diotec.com/request/datasheet/sk34sma-3g.pdf[/URL]
[URL]https://precisionminidrives.com/product/16mm-length-double-head-12v-mini-coreless-dc-motor-8mm-dia-model-nfp-d0816[/URL]

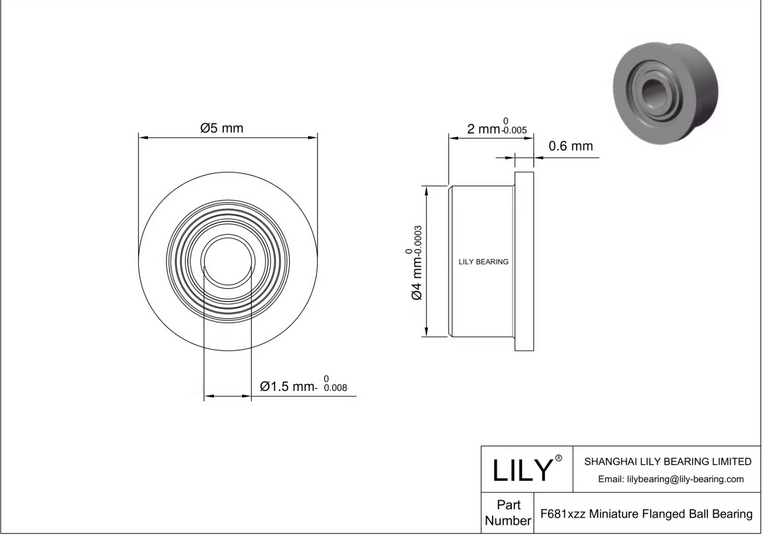

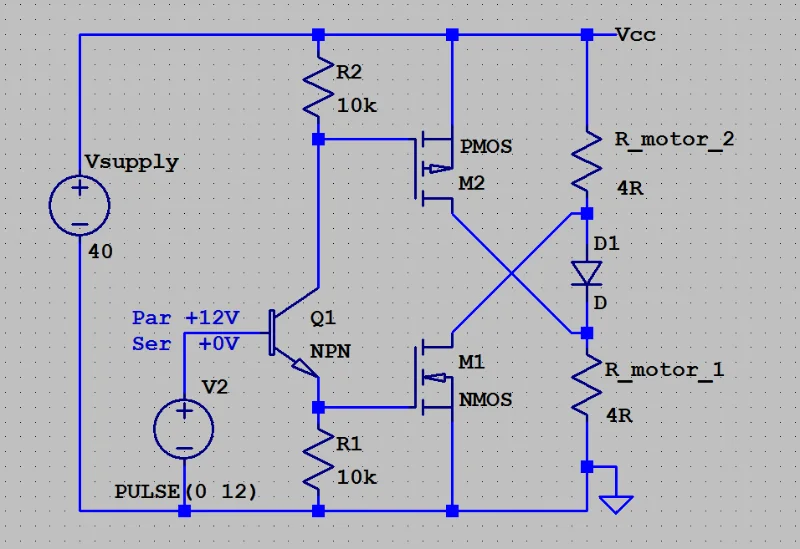

Act one:

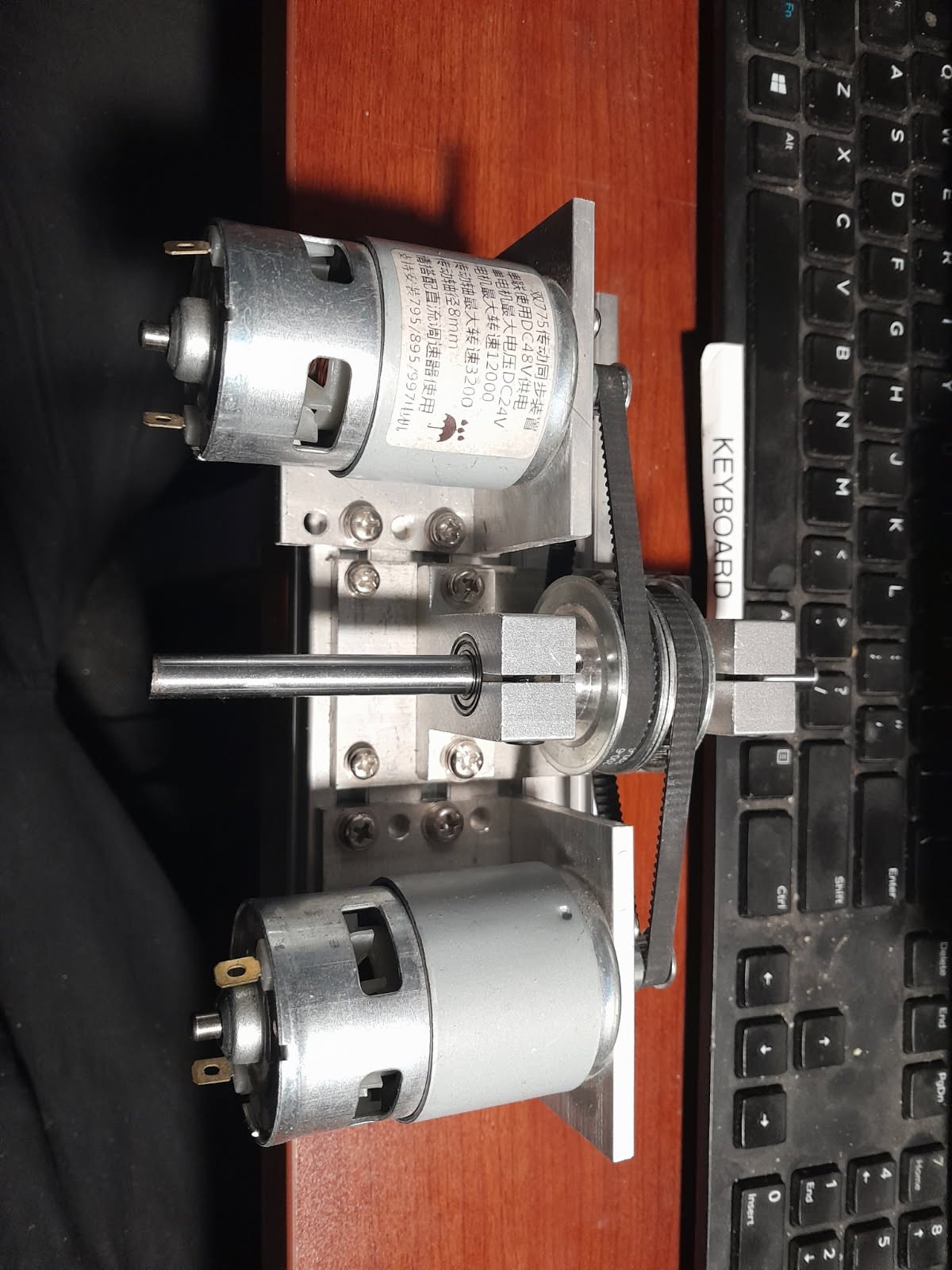

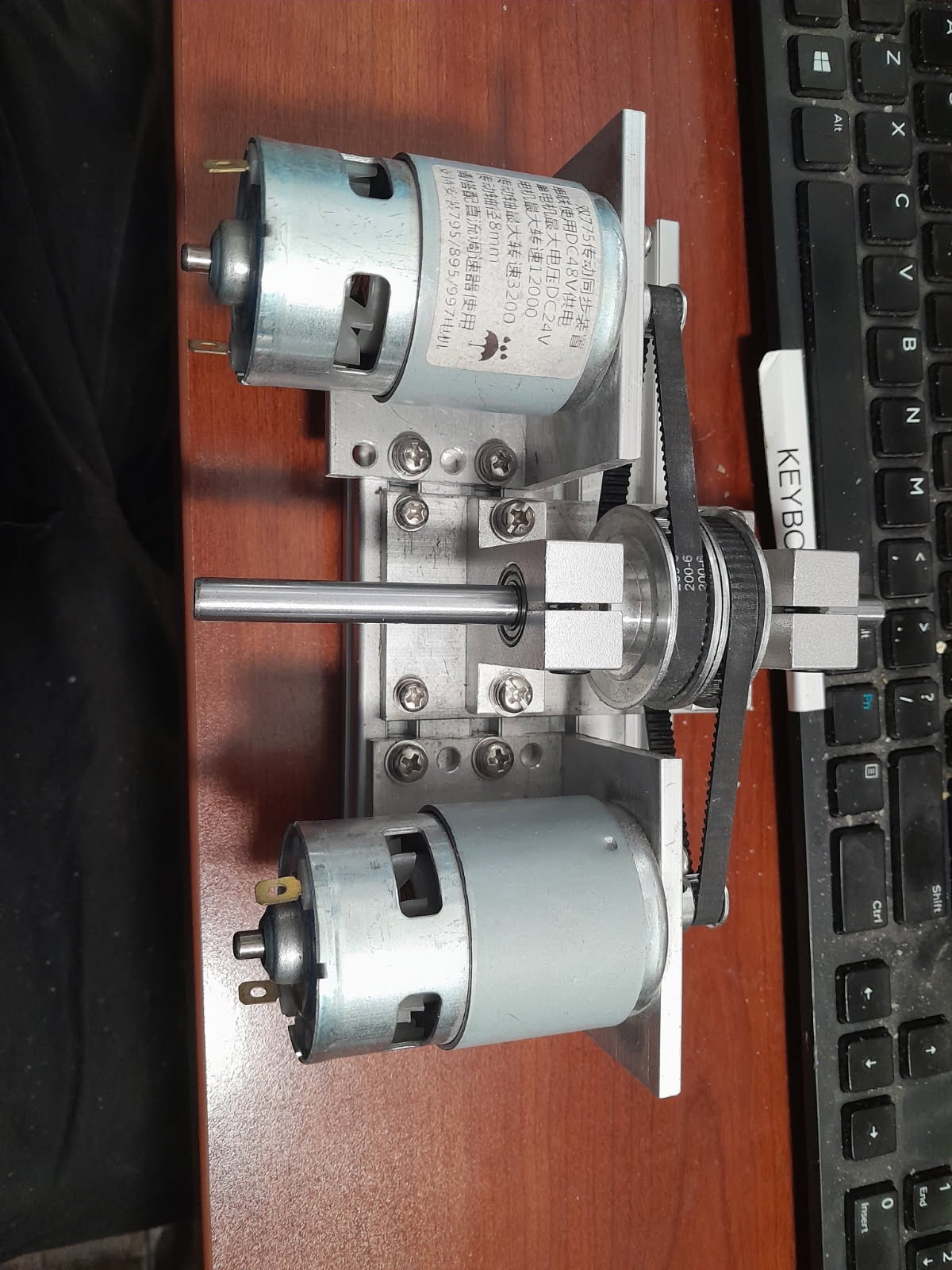

[ATTACH type="full" size="800x549"]76047[/ATTACH]

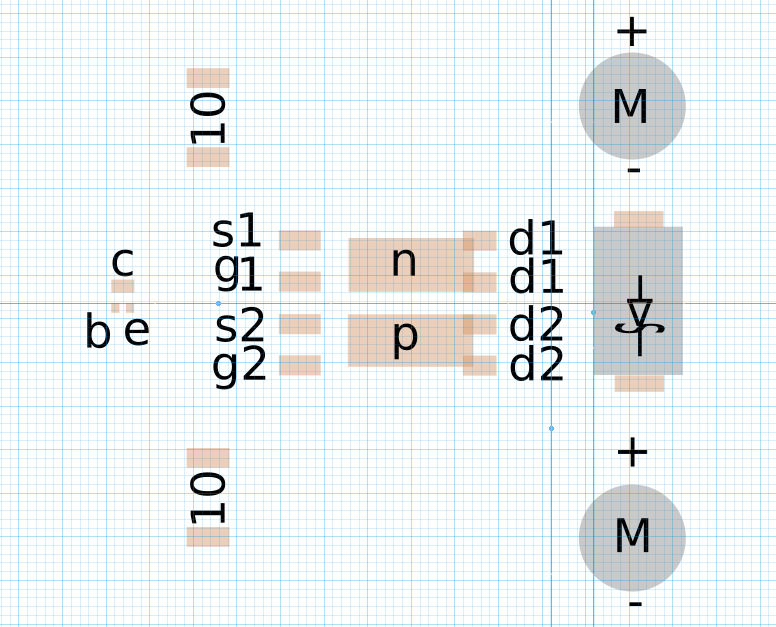

And this takes us to the (silk) screen play
[ATTACH type="full" size="776x627"]76048[/ATTACH]
Let the games begin!
