9- wires

black-RX
orange-?
white-Audio
red-TX
green-?
blue-common
yellow-for Johnson
gray-?
shield -connect to blue

8 pin connector


WR0220

Active Member
Oct 26, 2008
408
23
28
DX Land
I do not own an FT2000, and have never wired a D104 to one, but if I was going to this is the configuration I would try. You are using this info at your own risk. I will not be held liable for any damage that may result from using this information.


Attachments

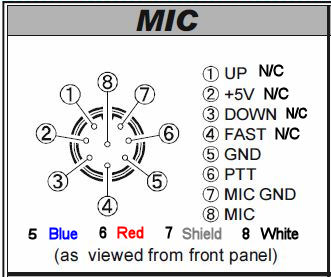

  • ft2000micwiring.jpg
    30.5 KB · Views: 235

RatsoW8

Supporting Member, W9WDX ARC Member - WD8T
Nov 3, 2009
3,102
1,408
273
West Central Michigan
Been there. Done that

9- wires

black-RX
orange-?
white-Audio
red-TX
green-?
blue-common
yellow-for Johnson
gray-?
shield -connect to blue

8 pin connector

I have a virgin, like new D-104 T-UG9 and the mic cord is six wires as the UG9 stand should.. All you have to be concerned with on the D-104 are the white-audio, red-tx, blue-common and shield. I suspect someone replaced the cord on the T-UG9 stand you have with a 9 wire cord for whatever reason.

Just translate this over to the FT-2000 mic jack in and see how it sounds. You obviously can't use the D-104 for up/down freq functions but you could use the +8v to power the D-104 if you wanted to re-wire.


unit248

Active Member
Nov 26, 2010
134
29
28
Our of curiosity, was that a typo, or does your mic really have the eagle emblem on the back and a TUG-9 stand? The Silver Eagle is supposed to have a TUP-9 instead. The P means that it has the Push-to-talk bar on the base. The G means it has the Grip-to-talk bar on the side _only_, and the base is gray instead of chrome.

If it's not a typo, then either someone took a Silver Eagle head and stuck it on a TUG-9 stand, or they just swapped out the head's back plate.

(Not that it really matters: the TUG-9 and TUP-9 stands both have a 6-wire cable and use the same wiring layout. And no matter what stand you have, the D-104 elements are all the same. So nobody on the air will ever know.)

-Bill
