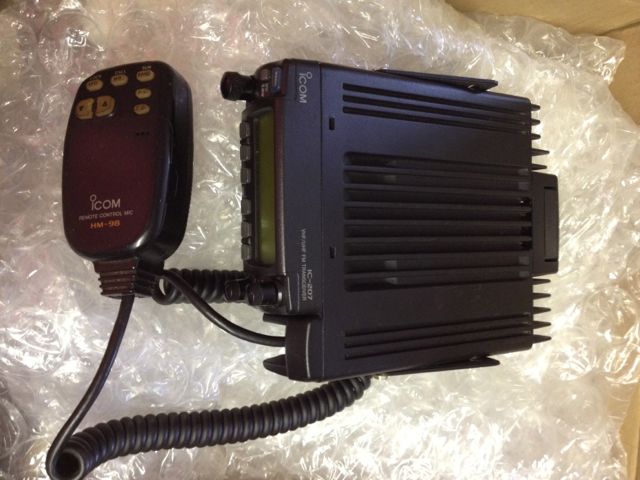

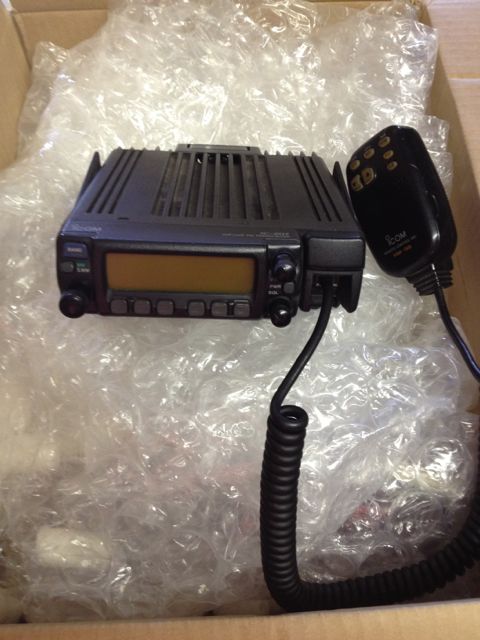

Icom 207H Dual Band VHF/UHF for sale with mobile bracket, hand mic, and power cable. 100% operational. I do not have a need for this radio anymore. All functions work properly and power output meets specs. $170 shipped and paypal'd in the 48. PM for questions or info.
General
Frequency coverage (Unit: MHz)
VHF: Tx: 144-148, Rx: 118-174 (Guaranteed 144-148)
UHF: Rx/Tx: 440-450
Mode: FM, AM* (* U.S.A. version, RX only; 118-136 MHz; not guaranteed.)
Number of memory channels: 182 (150 regular, 2 call, 10 scan edges and 20 scratch pads)
Antenna connector: SO-239 (50 ohms)
Power Supply requirement : 13.8 V DC +/-15%
Useable temperature range : +14°F to +140°F, -10°C to +60°C
Frequency stability: +/-10 ppm
Tuning step increments: 5, 10, 12.5, 15, 20, 25, 30 and 50 kHz
Current drain (at 13.8 V DC)
Receive squelched 0.8 Amps
Maximum audio output 1.0 Amps
Transmit at high power VHF 12 Amps, UHF 11 Amps
Dimensions (projections not included):
5 1/2 (W) x 1 9/16 (H) x 7 5/16 (D) inches
140(W) x 40(H) x 185.4(D) mm
Weight: Approx. 2.6 lb. (1.17 kg)
Transmitter
Output power:
VHF 50 W, 20 W, 10 W, 5 W selectable
UHF 35 W, 20 W, 10 W, 5 W selectable
Modulation system : variable reactance frequency modulation
Max. frequency deviation : +-5.0 kHz
Spurious emissions : Less than -60 dB
Microphone connector : 8-pin modular jack (600 ohms)
Receiver
Receive system: Double conversion superheterodyne
Intermediate frequencies: 1st 46.05 MHz, 2nd 450 kHz
Sensitivity: Less than 0.18 micro V for 12dB SINAD
Squelch Sensitivity: 0.13 micro V (at threshold)
Selectivity :
More than 12kHz/ -6 dB
Less than 30 kHz/ -60dB
Spurious rejection ratio: More than 60 dB
Audio output (at 13.8 V DC): More than 2.0 W at 10% distortion with an 8-ohm load
Ext. speaker connector: 2-conductor 3.5(d) mm (1/8")/ 8 ohms
Specifications are subject to change without notice or obligation.
