My G90 came in this week & I got a chance to finish up a little project I started when I ordered it. I needed to finalize some dimensions and do some test fittings that had to wait until the radio was in hand.
What I put together is a desk stand with cooling and power distribution. The stand part was done as left/right handles. A fan mount containing a 120x25mm fan connects to the handles and also supports a power distribution box that holds anderson powerpole pairs, a fuse holder, USB 5A powersupply and a switch for the fan. It has a pigtail with mini-Tamiya male connector that supplies power to the radio.

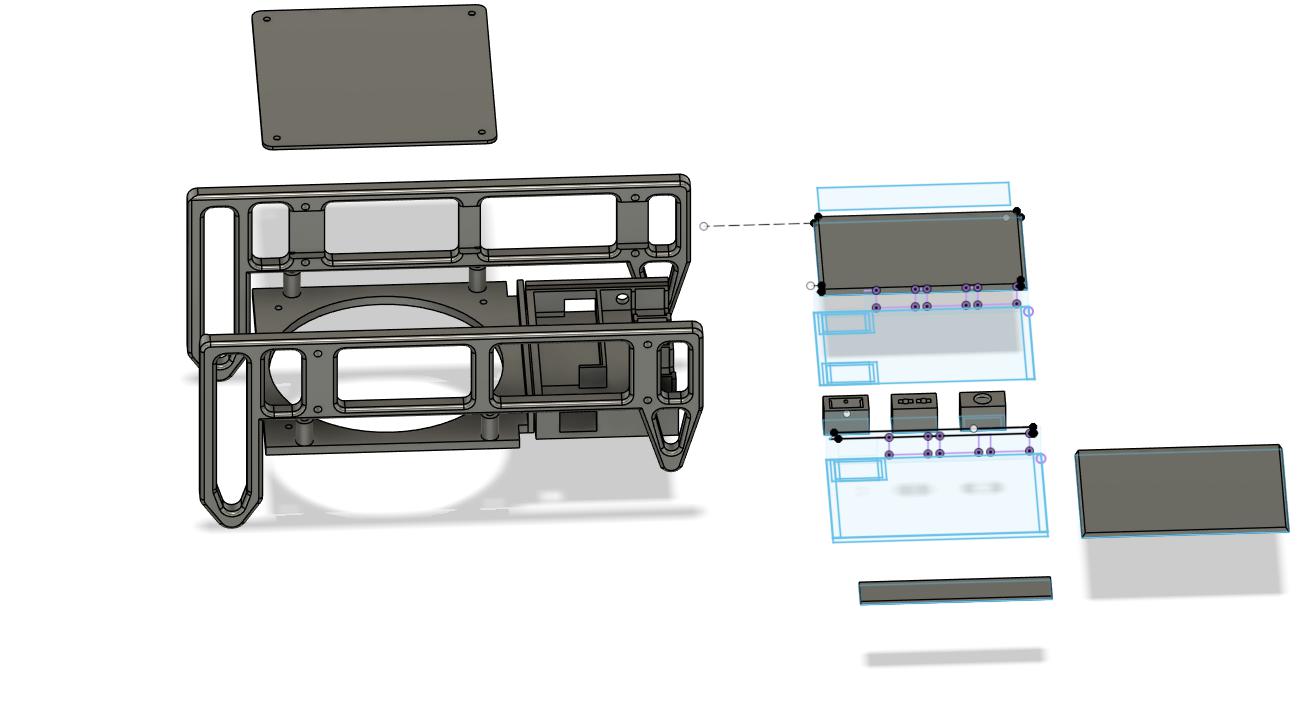

A snapshot of the Fusion 360 design for the parts. All parts were printed in ASA for environmental stability.

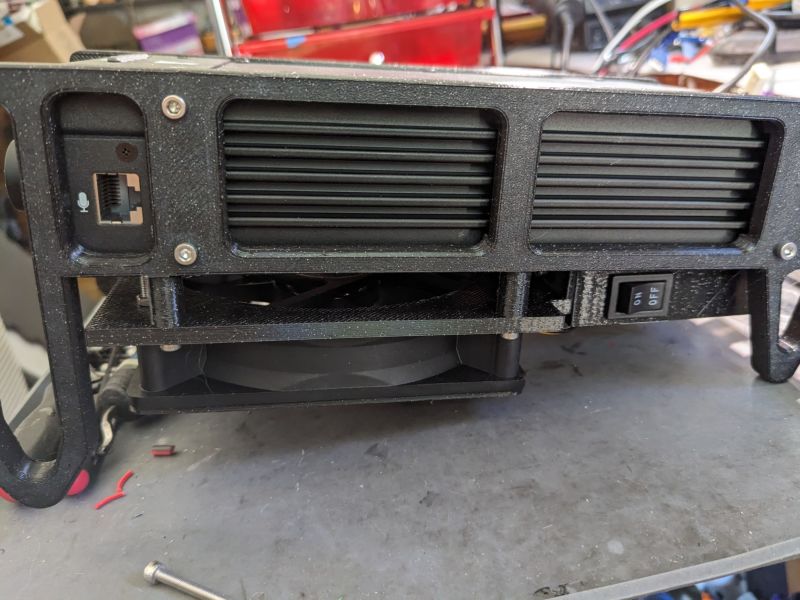

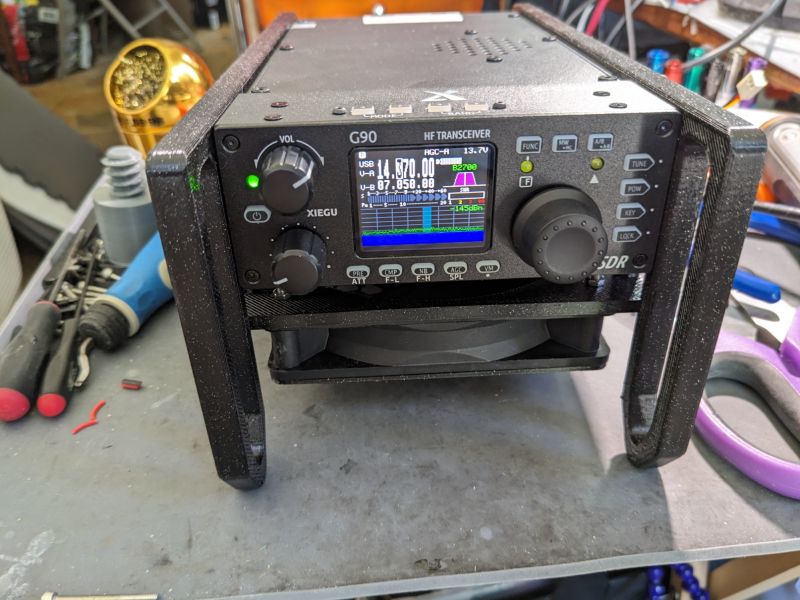

Front view after assembly

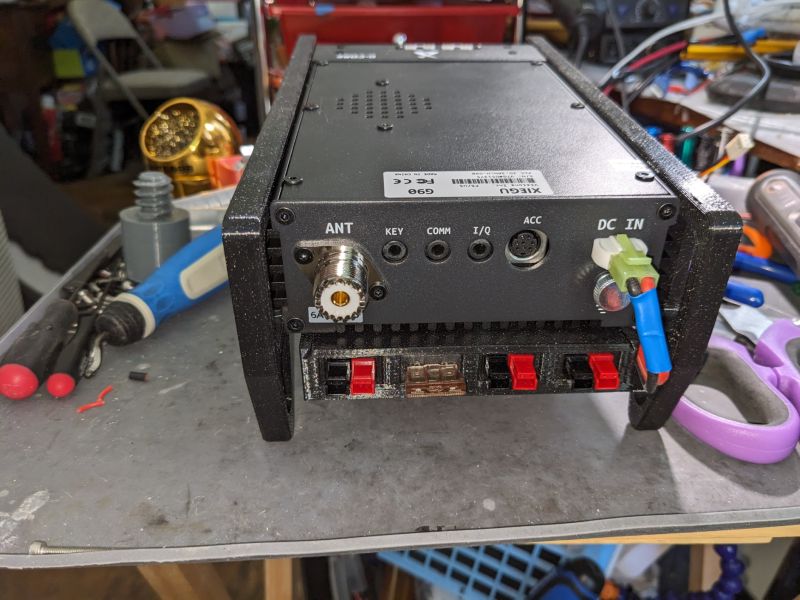

Rear view after assembly
Side view

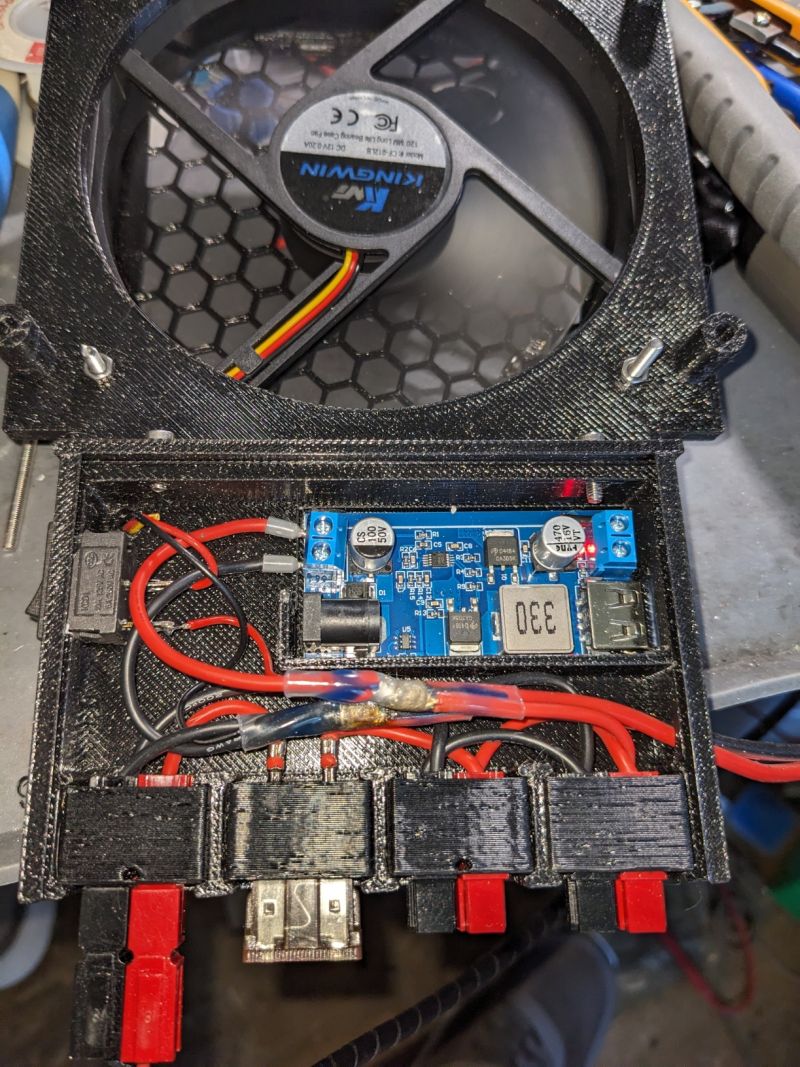

This is the inside of the power distribution portion. It is a modified version of the parametric single sided anderson powerpole box design I did a while back. This was the last test before adding the slide on cover & doing final assembly.
There is about 14mm clearance between fan top & radio bottom to allow for easy air movement.
I haven't published any of these files yet, other than the parametric anderson powerpole distribution box.
