Help identify/ read part

Discussion in 'Ham Equipment' started by Crambone, Sep 18, 2019.

  1. Crambone

    Crambone Active Member

    Joined:
    Jan 22, 2019
    Messages:
    152
    Likes Received:
    48

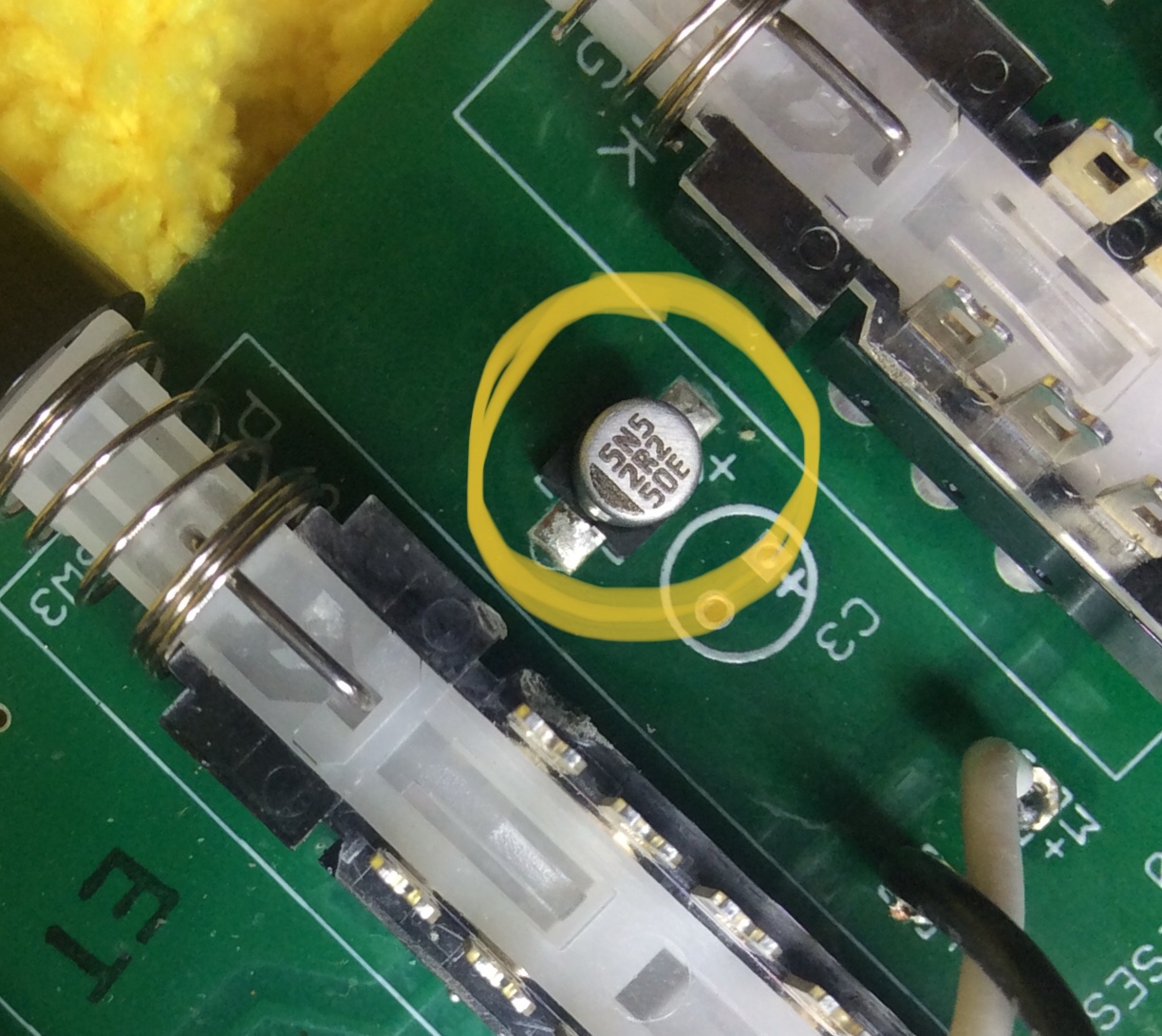

    71B992A0-DC5E-41CD-A09A-39E204A7199E.jpeg Hello, how do you look this part up from it’s markings? I believe it’s a Capacitor C3 as this board allows both types surface mount and standard to be used if desired. I can look it up on the schematic but would like to know how to look it up by its markings.
    Or I could be totally wrong?



  2. blasphemy000

    blasphemy000 Active Member

    Joined:
    Mar 31, 2017
    Messages:
    52
    Likes Received:
    70
    50E should be 50 Volts.
    2R2 should make it a 2.2uF.
    The black stripe indicates the negative terminal.
