How to change the TS-2000 RS-232 port to USB

AudioShockwav

Extraterrestrial
Staff member
Apr 6, 2005
9,139
9,105
593
Nor Cal Sierra Nevada
This document will describe how to get rid of RS-232 socket on the back of your TS-2000 and to replace it with USB socket.

Step by step instruction is below:

Buy DB9-USB-RS232 MALE module produced by FTDI Chip ( http://www.ftdichip.com/Support/Documents/DataSheets/Modules/DS_DB9-USB- RS232.pdf )

Power off your radio and remove bottom cover.

Remove all screws that keep PCB and its base.

Take a soldering iron and remove RS-232 socket from PCB (this is not a task for newbies).

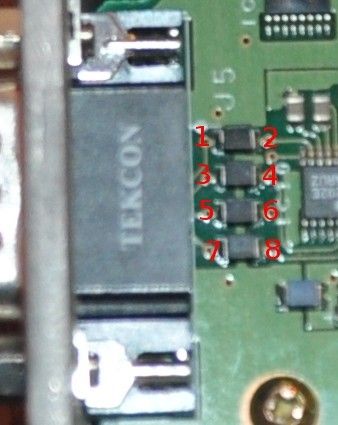

Remove 4 inductors that are placed near RS-232 socket (between red numbers)

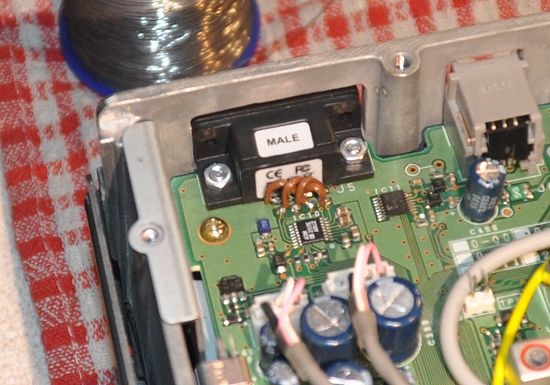

Now, instead of inductors you will need to get some short insulated wires and make few cross connections like 1-6, 5-2, 3-8, 7-4

After cross connections were done solder USB socket in place of RS-232 socket

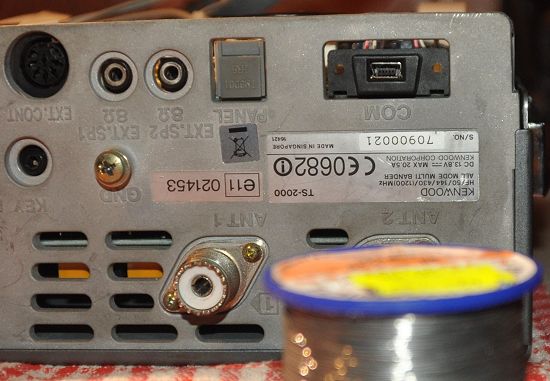

Now, get your screw driver put it all together again and have fun!

Mod Provided by Dawid SQ6EMM.


73
Jeff


Attachments

  • TS 20001.jpg
    TS 20001.jpg
    25.5 KB · Views: 1,299
  • ts 20002.jpg
    ts 20002.jpg
    48.7 KB · Views: 1,470
  • ts2004.jpg
    41.5 KB · Views: 2,825
