iPortable iP60z Field SWR Antenna Analyzer

Discussion in 'Amateur Radio Antennas' started by Happy_Hamer, Jul 24, 2012.

  1. Happy_Hamer

    Happy_Hamer Administrator
    Staff Member

    Joined:
    Mar 22, 2001
    Messages:
    5,045
    Likes Received:
    135
    Like many others, I have been using the MFJ 259B Antenna Analyzer in the field.

    I was watching an instructional video on the Buddipole website and seen the iPortable Analyzer.

    So I purchased mine from Buddipole so I can also purchase some extra clips for my antenna at the same time. Same price at iPortable







  2. Happy_Hamer

    Happy_Hamer Administrator
    Staff Member

    Joined:
    Mar 22, 2001
    Messages:
    5,045
    Likes Received:
    135

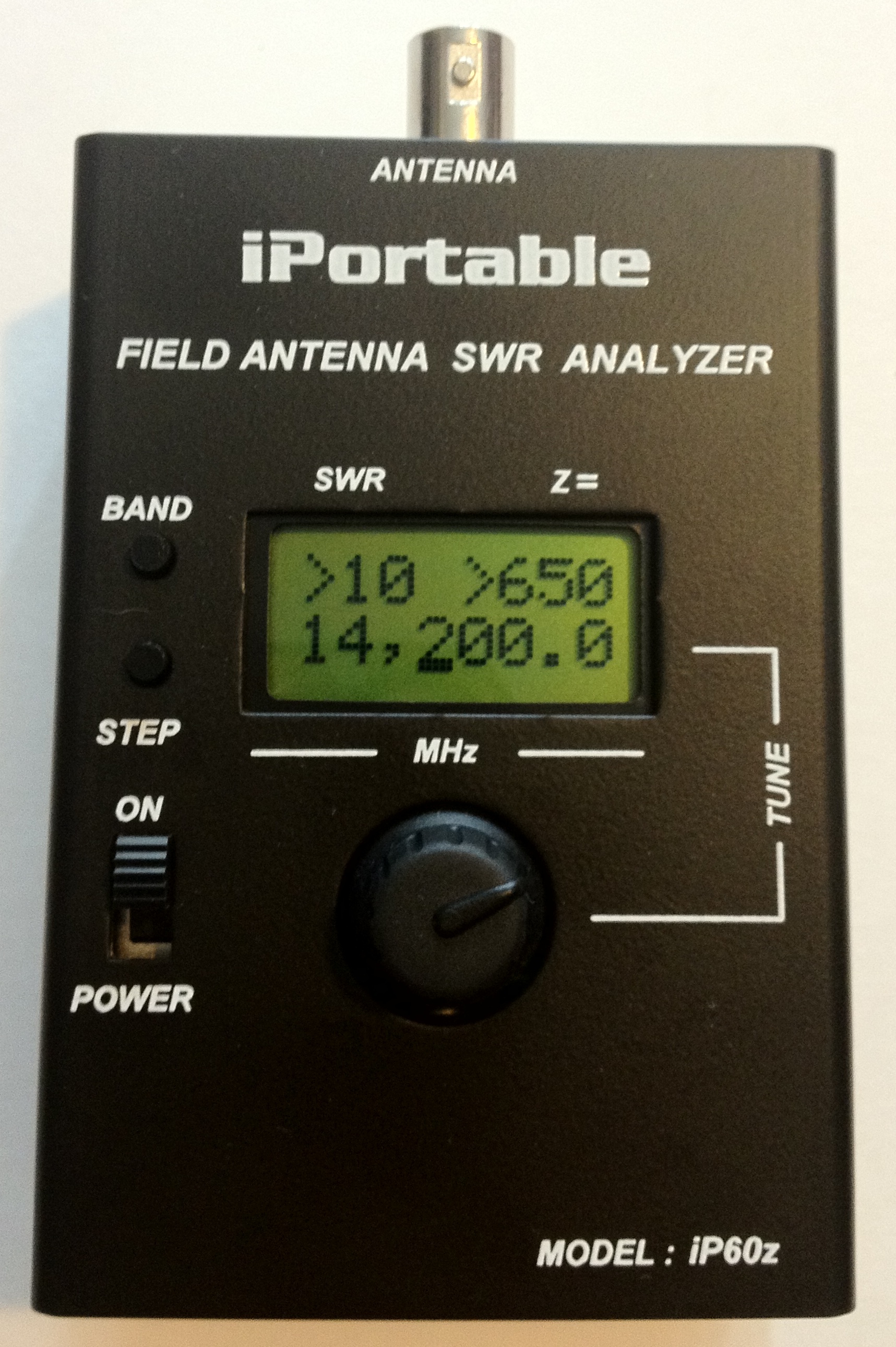

    2 people like this.
  3. Robb

    Robb Yup

    Joined:
    Dec 18, 2008
    Messages:
    10,575
    Likes Received:
    2,264
    A bit less in cost than the MFJ-259B.

    Did you ever try the Autek RF-1 analyst?

  4. Happy_Hamer

    Happy_Hamer Administrator
    Staff Member

    Joined:
    Mar 22, 2001
    Messages:
    5,045
    Likes Received:
    135

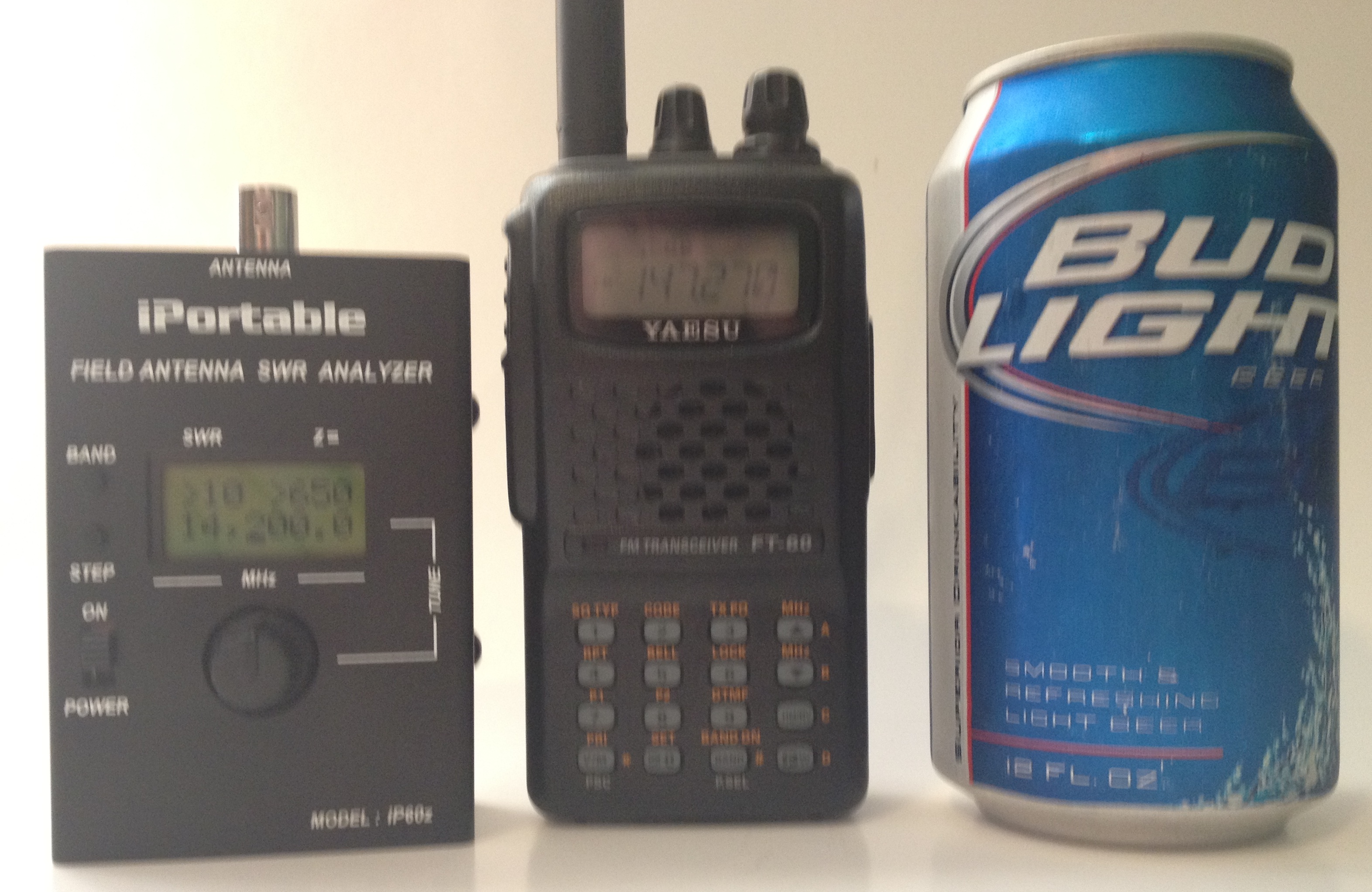

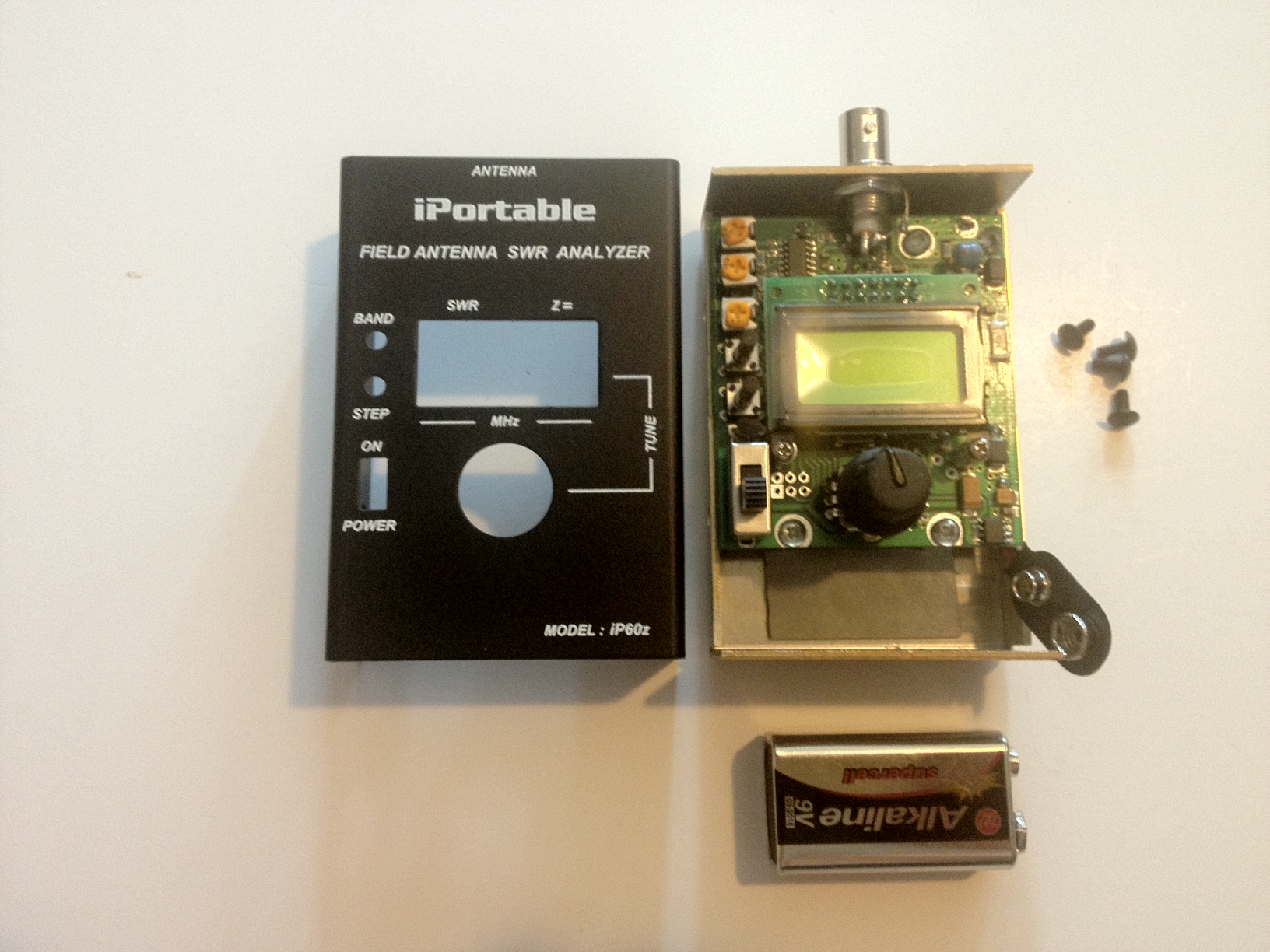

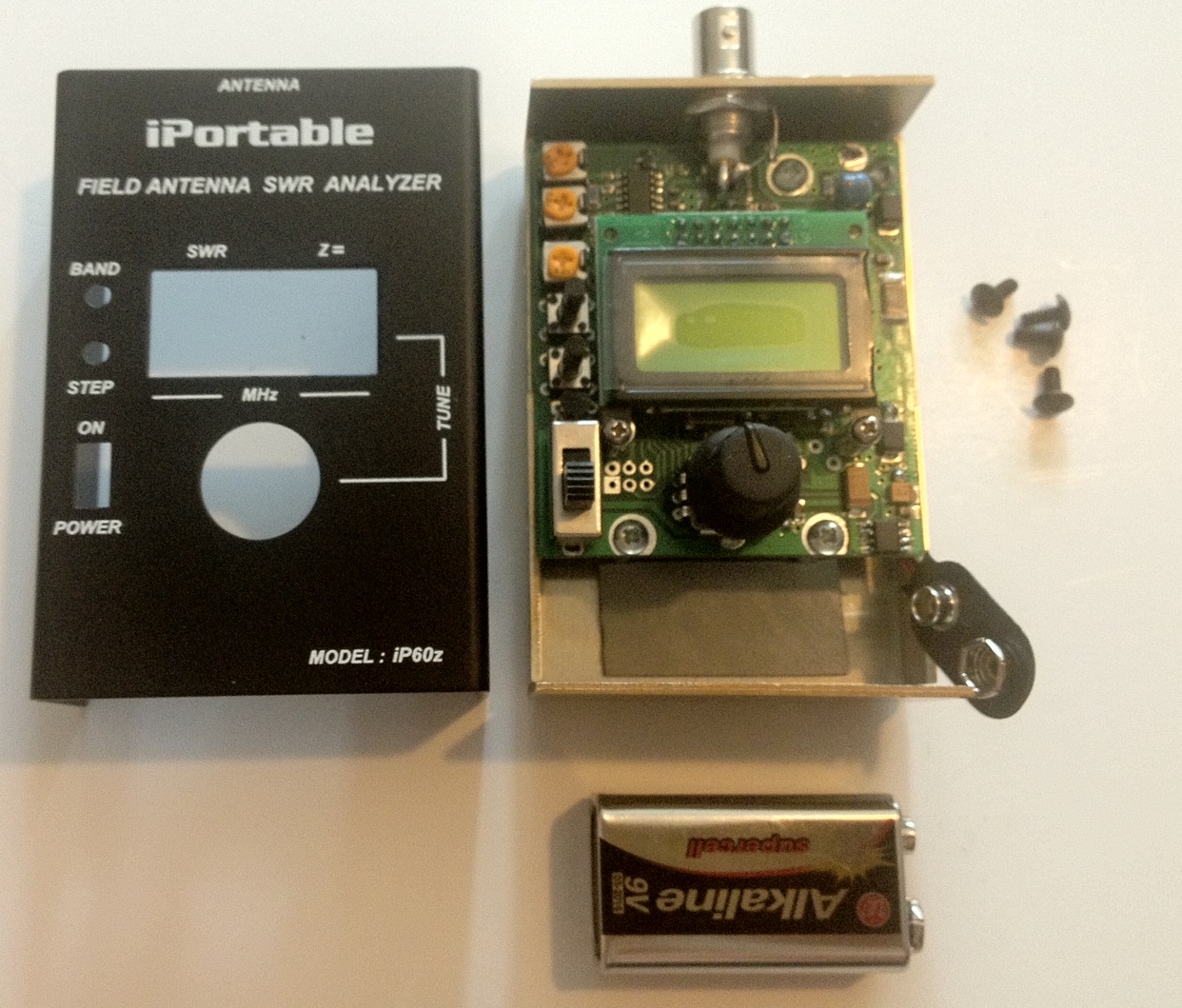

    Here is a photo just for the size comparison

    I will make another in focus, but you can get a feel for the size


  5. Happy_Hamer

    Happy_Hamer Administrator
    Staff Member

    Joined:
    Mar 22, 2001
    Messages:
    5,045
    Likes Received:
    135
    I have a friend who has the Autek and I was not as impressed with it as much, maybe because this is just so simple like me is why I like the iPortable LOL :D

  6. AudioShockwav

    AudioShockwav Extraterrestrial Admin
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    5,402
    Likes Received:
    1,109
    That is nice Bill, and it uses only a single 9 volt battery not a whole package of AA`s like my MFJ, I really like that feature.
    Cool beans!

    73
    Jeff

  7. Happy_Hamer

    Happy_Hamer Administrator
    Staff Member

    Joined:
    Mar 22, 2001
    Messages:
    5,045
    Likes Received:
    135
    I wanted to play with the analyzer so I set up my Buddipole as a VersaTee Vertical.

    Once set up, including the elevated radial wire,, I just "drug" the lead up and down the coil and watched the SWR and impedance on the iP60z until it was as close as I could be to resonance. I was also using my 6 section adjustable shock cord. So I fine tuned it with the adjustable bottom section.

    Now I know it is similar to just hooking up to the radio and dragging the lead for maximum noise level. After comparing the tap location with the noise level method and the iP60z I discovered it is just a coil ring or two difference.

    I have the internal tuner on my KX3 so it would tune either method with no problem. Like I mentioned before, this tuner will tune a dog's tail LOL. In my mind though, if the antenna is adjusted to the best efficiency possible, then use the tuner, you would be getting the max radiated power? Correct? Every little bit is important when operating QRP. That is why I prefer set up using an analyzer. YMMV
