KLV 550 amp.

[Ronald Porter]

would like to know the hookup of the 4 wires from the switches go on the under side of the board?
the schmatic diagram does not show them,and what order they go. color coded. brown,yellow,orange, and green. were unhooked when the amp came to me. Could anyone help me put them back in the right order. thank you, Ron



[Tallman]

would like to know the hookup of the 4 wires from the switches go on the under side of the board?
Ron

I can help you. Let me study my schematics and I also have one of those amps in stock in my shop. I will take my schematics and sit down with the amp and clear it up for you. I will measure point to point and post it here for you.



[Ronald Porter]

I can help you. Let me study my schematics and I also have one of those amps in stock in my shop. I will take my schematics and sit down with the amp and clear it up for you. I will measure point to point and post it here for you.

Thank you, I don't want to turn it on with those wire's in the wrong location, Ron



[Tallman]

Thank you, I don't want to turn it on with those wire's in the wrong location, Ron

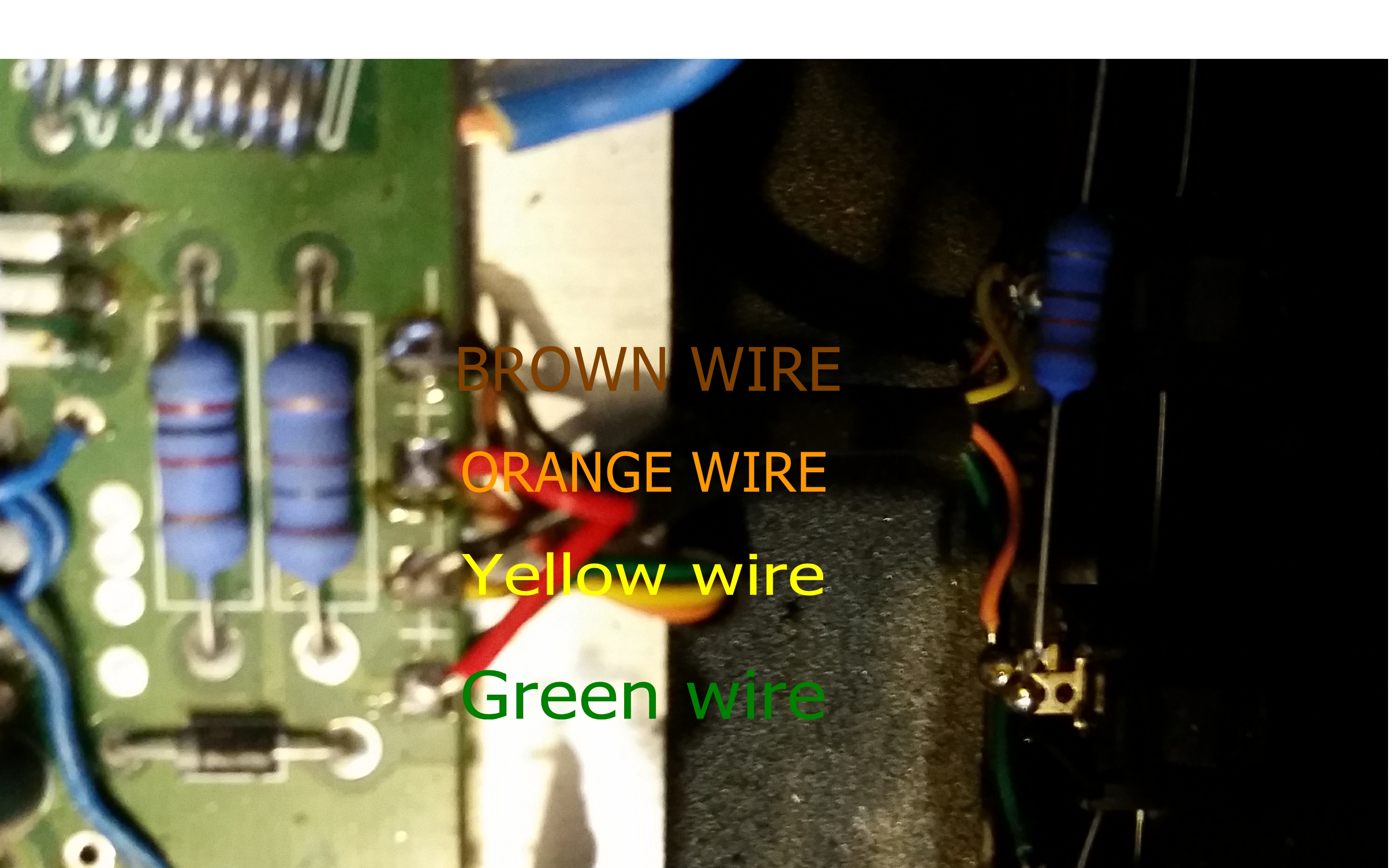

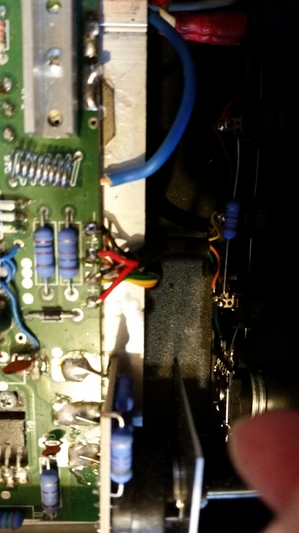

As it is oriented below the colors are as follows from bottom to top.
1) Green, goes to the Pre TUNE pot. (R8 on the schematic)
2) Yellow, connects to the AM/SSB switch.(S1 on the sch.)
3) Orange, goes to Pre. on/off switch (S2 on the schematic)
4) Brown connects to the READY/St.By switch.(S3 on the schem.)
That's how this one is wired and I hope it helps you out.



[Ronald Porter]

As it is oriented below the colors are as follows from bottom to top.
1) Green, goes to the Pre TUNE pot. (R8 on the schematic)
2) Yellow, connects to the AM/SSB switch.(S1 on the sch.)
3) Orange, goes to Pre. on/off switch (S2 on the schematic)
4) Brown connects to the READY/St.By switch.(S3 on the schem.)
That's how this one is wired and I hope it helps you out.

View attachment 17901

thank you, working fine now. Ron



[Tallman]

thank you, working fine now. Ron

Glad I could help.



[2RT307]

Glad I could help.

Awesome!

73,
Brett
