Loop Antenna Crystal Radio

Discussion in 'Home Brew' started by vu2nan, Nov 25, 2015.

  1. vu2nan

    vu2nan Active Member

    Joined:
    Jul 17, 2013
    Messages:
    104
    Likes Received:
    39
    A loop antenna crystal radio is of interest, on account of its portability, though it is no match for a crystal radio using an external vertical wire antenna and earth.

    If it's performance could be considerably improved with increased loop size, then its portability would be the first casualty.

    As usual, 2 configurations are possible - parallel-tuned-series-fed and series-tuned-shunt-fed.

    1. Parallel-tuned-series-fed version

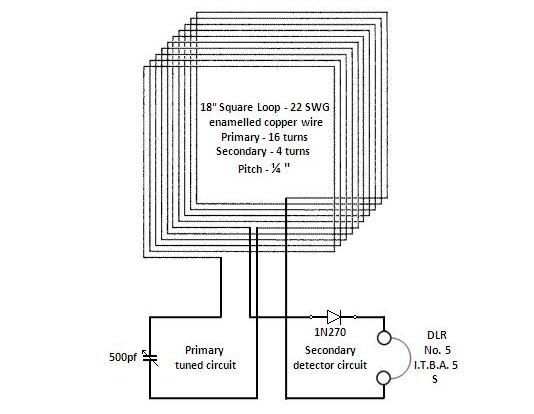

    [​IMG]




    Read more at

    http://nandusthoughts.blogspot.in/2015/11/loop-antenna-crystal-radio.html

    73,

    Nandu.


    Attached Files:

    #1 vu2nan, Nov 25, 2015
    Last edited: Nov 26, 2015
