Mounting Base station CB antenna

[AmericanEagle575]

Thinking about in the summer when the weather is nice,of moving my antron 99 from the vent pipe where I currently have it mounted,to getting a 3 foot heavy duty roof tripod and moving towards a higher part of the roof. The question is: how high of a mast can I safely use without having to use Guy wires, 5 feet,10 foot mast??? Also thinking about getting a Siro 2008 base antenna and changing things up a bit, Would appreciate any feedback or ideas, Concern's,etc!!
Thank you in advance,

Steve AE#575



[groundwire]

lots of factors to consider to come up with an adequate answer. whats the thickness and weight of the mast sections being used? what type of mounting system is being used? whats the total weight that the mast will support? do you get severe weather conditions regularly at your location? and so on. as a generic answer i would say guy every 10ft with four wires. dont forget to break them up with insulators to avoid resonance.



[AmericanEagle575]

lots of factors to consider to come up with an adequate answer. whats the thickness and weight of the mast sections being used? what type of mounting system is being used? whats the total weight that the mast will support? do you get severe weather conditions regularly at your location? and so on. as a generic answer i would say guy every 10ft with four wires. dont forget to break them up with insulators to avoid resonance.

I can tell you that it's a heavy duty roof 3 foot tripod that attaches to the roof for masts up to 1-3/4 ,I usually get my Mast material at home Depot or Lowe's ( usually it's a top rail fenceing-hope that makes sense) I don't plan on going any higher than 8to 10 feet in length or height from the tripod,I really don't want to fool around with guy wires if I don't have to, If necessary I'll stick to using a 5 foot mast length just to avoid that! Live in Pennsylvania,don't get many severe storms around where I live at if that helps!!



[groundwire]

in that case, if the tripod is bolted down properly to the support beams of the roof, i see no need to guy it at 10 ft. BUT! top fence rail can be narrow in diameter and tend to flex under high strain, and it is quite heavy. Peronally i would just go for it, get it up there and then hang on it, lol see what happens, and use your best judgment. my guess is it should be good. a fiberglass vertical isn't that heavy and has a small wind load for the most part. Just make sure that tripod is bolted down to solid wood. not screwed in or nailed to the shingles. i have seen it.



[AmericanEagle575]

in that case, if the tripod is bolted down properly to the support beams of the roof, i see no need to guy it at 10 ft. BUT! top fence rail can be narrow in diameter and tend to flex under high strain, and it is quite heavy. Peronally i would just go for it, get it up there and then hang on it, lol see what happens, and use your best judgment. my guess is it should be good. a fiberglass vertical isn't that heavy and has a small wind load for the most part. Just make sure that tripod is bolted down to solid wood. not screwed in or nailed to the shingles. i have seen it.

Thank you Groundwire,much appreciated!!



[groundwire]



[BJ radionut]

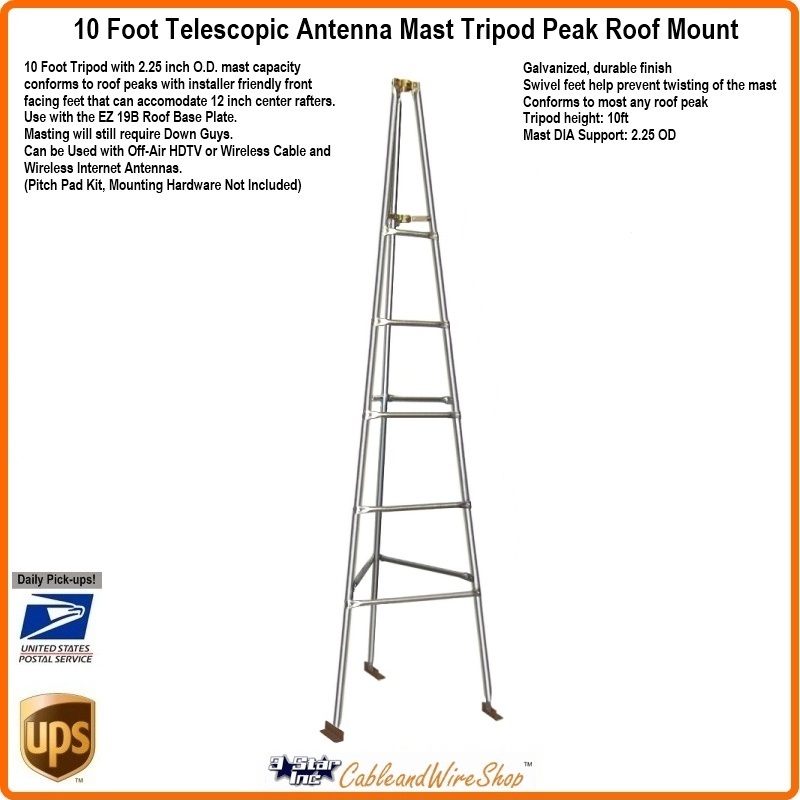

10 Foot Roof Mount Tripod for Telescopic Antenna Mast | 3 Star Incorporated

10 Foot Roof Mount Tripod for Telescopic Antenna Mast with installer Friendly forward facing feet for Installation of Off-Air HDTV or Wireless Cable and Wireless Internet Antennas at 1-877-660-0974

www.3starinc.com

Tripod Mount for Large Antennas, Dish: 5FT, 3FT, 2FT Heavy Duty Adjustable

Built for demanding customer premises antenna mounting applications. Adjustable feet, fits large antennas, so they can be easily mounted on the roof-top.

www.data-alliance.net

W8IO Roof Tower Products

W8IO, ham radio roof tower,rooftower

wb0dgf.com



[BJ radionut]

TowerLegClamps

https://www.dxengineering.com/search/part-type/tower-masts



[RT431]

When I had my antenna on the roof I used a 10' mast with hd 3' tripod and 3 guy wires. I wouldn't go over 5' of mast without them.

My 0.02.



[Recon]

in that case, if the tripod is bolted down properly to the support beams of the roof, i see no need to guy it at 10 ft. BUT! top fence rail can be narrow in diameter and tend to flex under high strain, and it is quite heavy. Peronally i would just go for it, get it up there and then hang on it, lol see what happens, and use your best judgment. my guess is it should be good. a fiberglass vertical isn't that heavy and has a small wind load for the most part. Just make sure that tripod is bolted down to solid wood. not screwed in or nailed to the shingles. i have seen it.

Right-on! But how do you find the beams under the roof shingles?



[AmericanEagle575]

Well I have decided to forgo the Roof tripod and instead go with a Roof Eaves Mount with a 5.5 ft Mast attached to put the antenna on,Found and ordered a. Heavy duty one on eBay!!! Thank you all for your advice and help,I just felt that this would be alittle easier to install for me!!



[Recon]

Well I have decided to forgo the Roof tripod and instead go with a Roof Eaves Mount with a 5.5 ft Mast attached to put the antenna on,Found and ordered a. Heavy duty one on eBay!!! Thank you all for your advice and help,I just felt that this would be alittle easier to install for me!!

Be sure the Roof Eaves Mount brackets are long enough to protrude beyond the eaves. Also, it is recommended the minimum spacing between the two brackets are 5' and no less. You will need a one-piece 10ft mast / pipe.
