MY CURRENT SETUP.

Discussion in 'Station & Mobile Pics' started by Sonar, May 31, 2017.

  1. Sonar

    Sonar Well-Known Member

    Joined:
    Apr 8, 2016
    Messages:
    1,144
    Likes Received:
    486

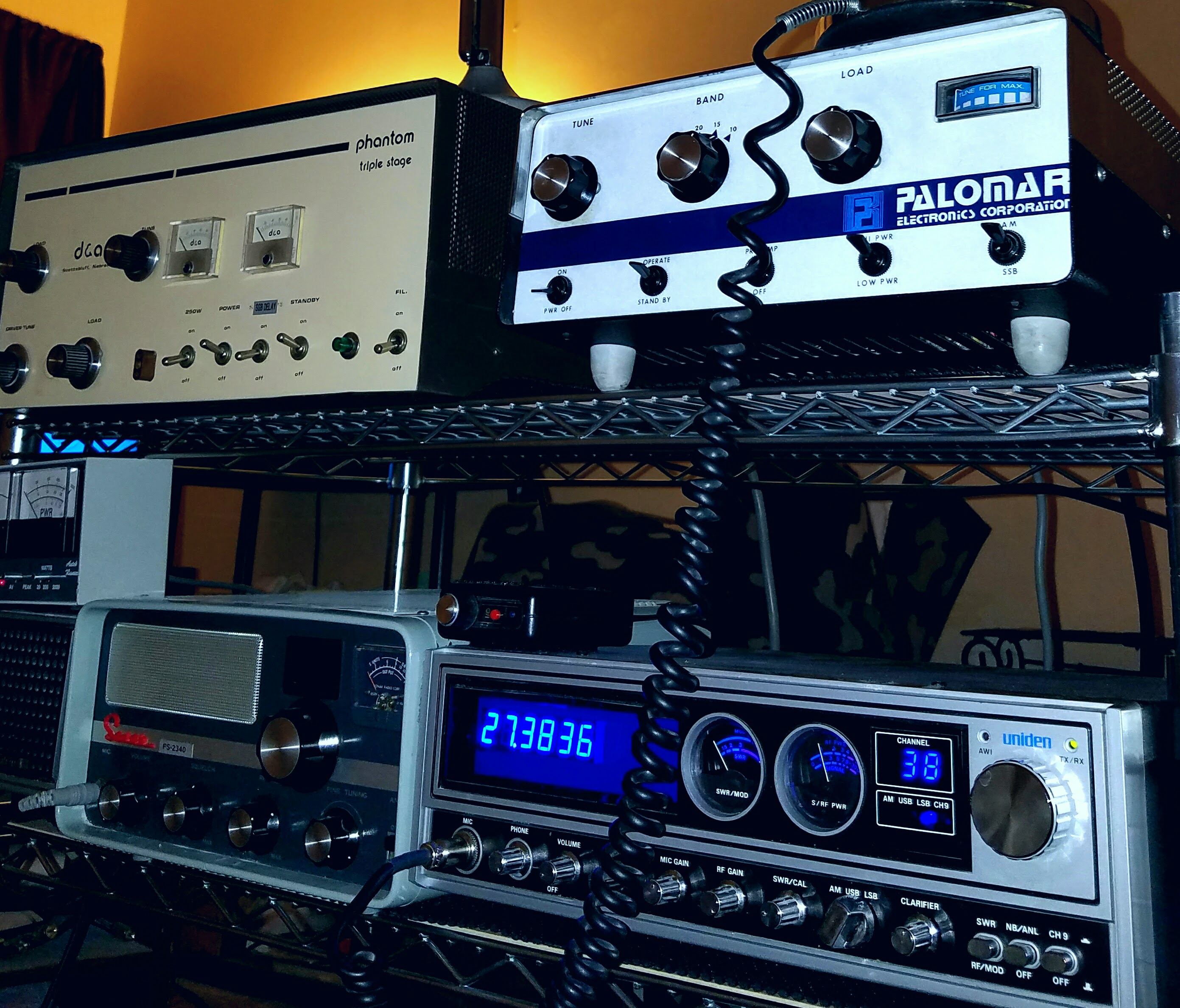

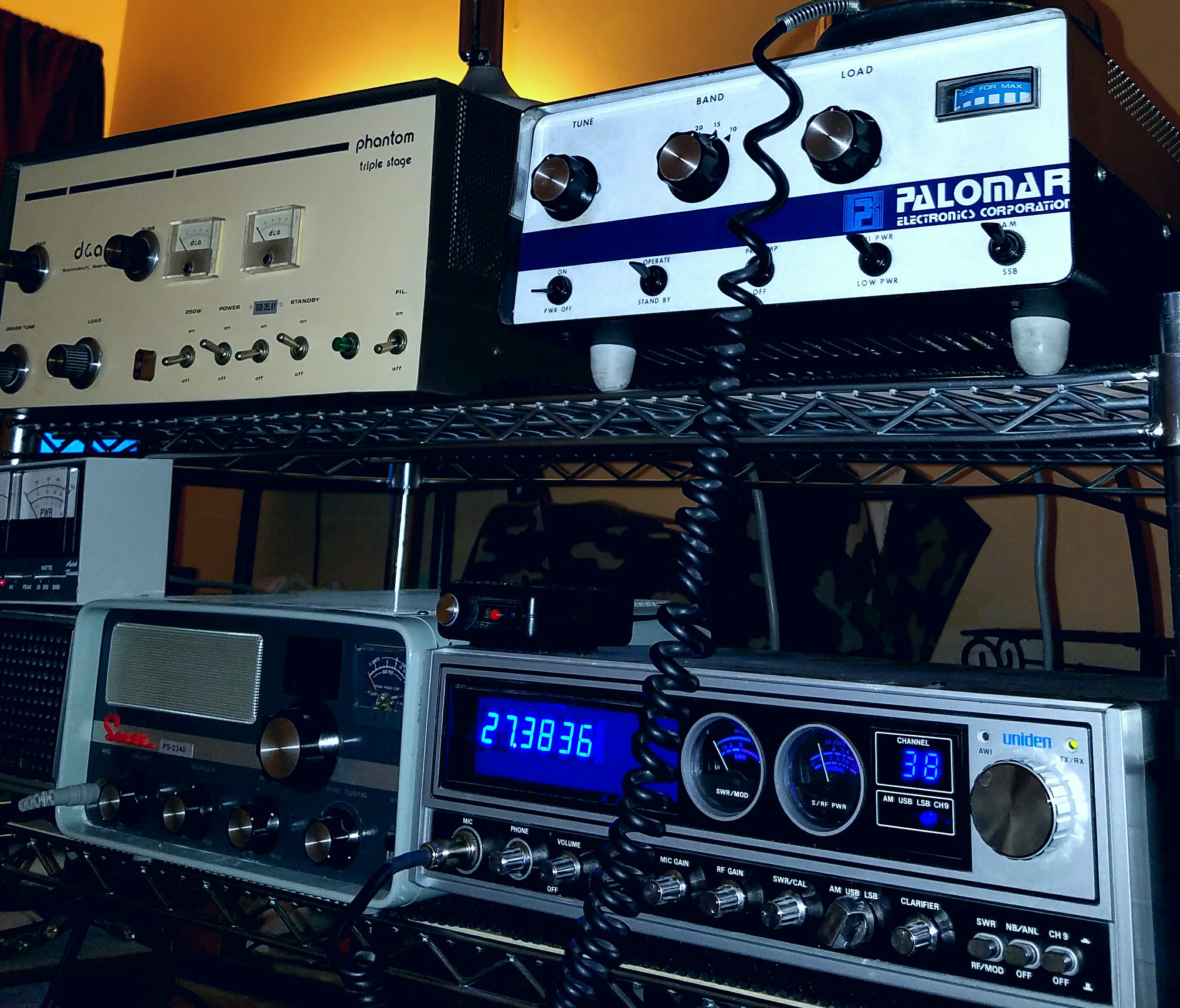

    Unamplified d104, Demco modulator on the sonar 2340. Silver eagle (with fet mod) on the Madison. Madison has vfo and frequency counter. It is the final Madison and had the digital clock before it was replaced with the frequency counter (freq. counter and vfo purchased from eBay seller fastrack*09.) The phantom is in use with the Madison, and the Palomar 300a with the sonar 2340. Autek WM 1 meter. IMAX 2000. 20170208_202229.jpg



    #1 Sonar, May 31, 2017
    Last edited: May 31, 2017
    codeman and Robb like this.

  2. Riverman71

    Riverman71 Sr. Member

    Joined:
    Nov 12, 2013
    Messages:
    1,217
    Likes Received:
    606
    :D Green with envy.

    Sonar likes this.
  3. codeman

    codeman Recovering Crackerhead

    Joined:
    Jul 10, 2011
    Messages:
    355
    Likes Received:
    150
    I like that madison!

    Sonar likes this.
  4. w9cll

    w9cll W9WDX Amateur Radio Club Member

    Joined:
    Jan 19, 2013
    Messages:
    3,211
    Likes Received:
    1,819
    Only thing legal in that pic is the Sonar lol. Nice station setup! I always did like the Madison.

    Sonar likes this.
  5. Blackcat630

    Blackcat630 Sr. Member

    Joined:
    Apr 2, 2013
    Messages:
    435
    Likes Received:
    286
    Looks good. Nice Madison

    Sonar likes this.
  6. Sonar

    Sonar Well-Known Member

    Joined:
    Apr 8, 2016
    Messages:
    1,144
    Likes Received:
    486
    Nope. The audio limiter board has been bypassed. Technically I think that puts it in the same category as everything else in the photo. :)

  7. Sonar

    Sonar Well-Known Member

    Joined:
    Apr 8, 2016
    Messages:
    1,144
    Likes Received:
    486
    Mikesradiorepair on YouTube has a video of this Madison after he finished the work. It's all the way at the bottom of his clips as it was the third or fourth video he made.

  8. Sonar

    Sonar Well-Known Member

    Joined:
    Apr 8, 2016
    Messages:
    1,144
    Likes Received:
    486

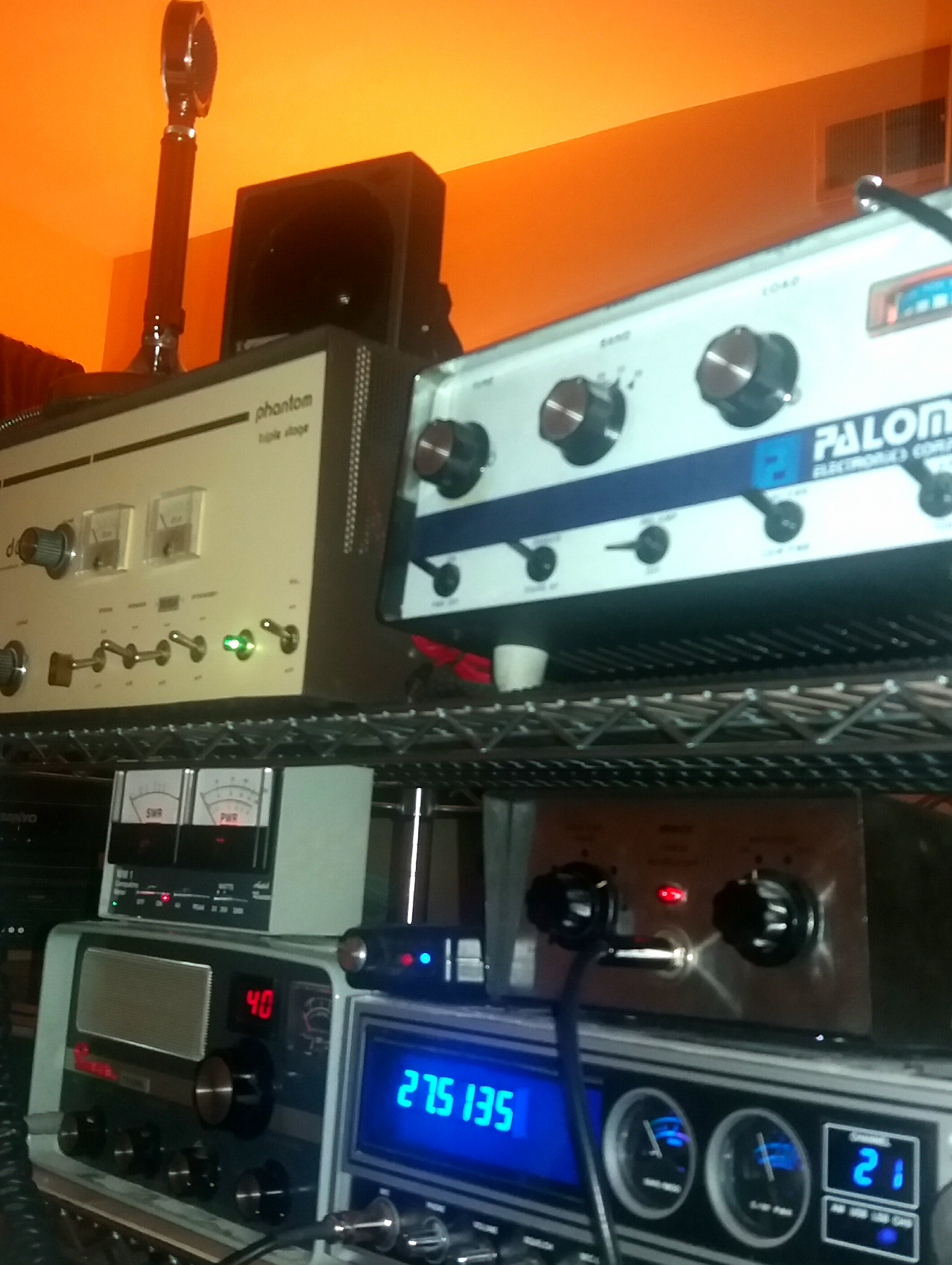

    It's actually an older photo. I had room on top of the Madison so I put the Demco on top of it. I also replaced the president speaker with a cobra hg s500 ($29) for the Madison and it worked so well I bought a $12 exstenal speaker for the sonar. It to sounds so much better than the original built in sonar speaker. 20170601_203019.jpg

  9. SONAR2340

    SONAR2340 New Member

    Joined:
    Mar 2, 2018
    Messages:
    6
    Likes Received:
    2
    The sonar has it's audio limiter (clipper) board bypassed.
    So your intial thought was almost correct.
    The only thing that's actually legal would be my unamplified high z d104.
    But since it's on top of the amp and out of the picture I'll let that one slide lol. I would love to run everything legal but no one would hear me.
    And imo the Madison wouldn't look as nice, access all those sweet frequencies above 40 (free bands) and I'd have to flip switches in order to access those frequencies. Then keep checking out a piece of paper to see where I was without the frequency counter. The sonar wouldn't be as loud. As far as second Harmonix and splatter, I've never gotten any complaints. I'm actually happy about that as I don't want to be one of those stations. It might be happening but as I mentioned not a single complaint in four years. With my imax 2000 8' off the ground no one would ever hear me without the amps. So for me it's a nessasery evil. In all honesty if the imax were 40' in the air I'd still use the amps. I do understand that making the excuse that everyone else is doing it isn't valid. So I'll take the fact that I don't run 4-12 watts and say I do that because I want to. I'm sure there are people who run stock but the people who usually tell me they're running stock I almost always find out they're on a HF Mars modified transciver. Lol!
    I've made a few changes since that photo was taken. I put the Phantom away and replaced it with a Palomar 350z. I also had the silver eagle (you don't see) fet modified. It's the best investment I've ever made as far as a mic.
    Loosecannon did the mod and I've lost count of how many people on SSB (where I use the mic with the Madison) asked me what mic I was using. The mod gave the mic some nice lo's as opposed to the high pitched nasally sound of the d104 Silver Eagle.
    Before the mod not a single person ever asked which mic or complimented my audio. Thanks for the thumbs up and reply to my post and photo. 73's
