Oldie but a Goodie

Discussion in 'Station & Mobile Pics' started by oldtymer, Nov 30, 2018.

  1. oldtymer

    oldtymer Well-Known Member

    Joined:
    Nov 15, 2018
    Messages:
    246
    Likes Received:
    353

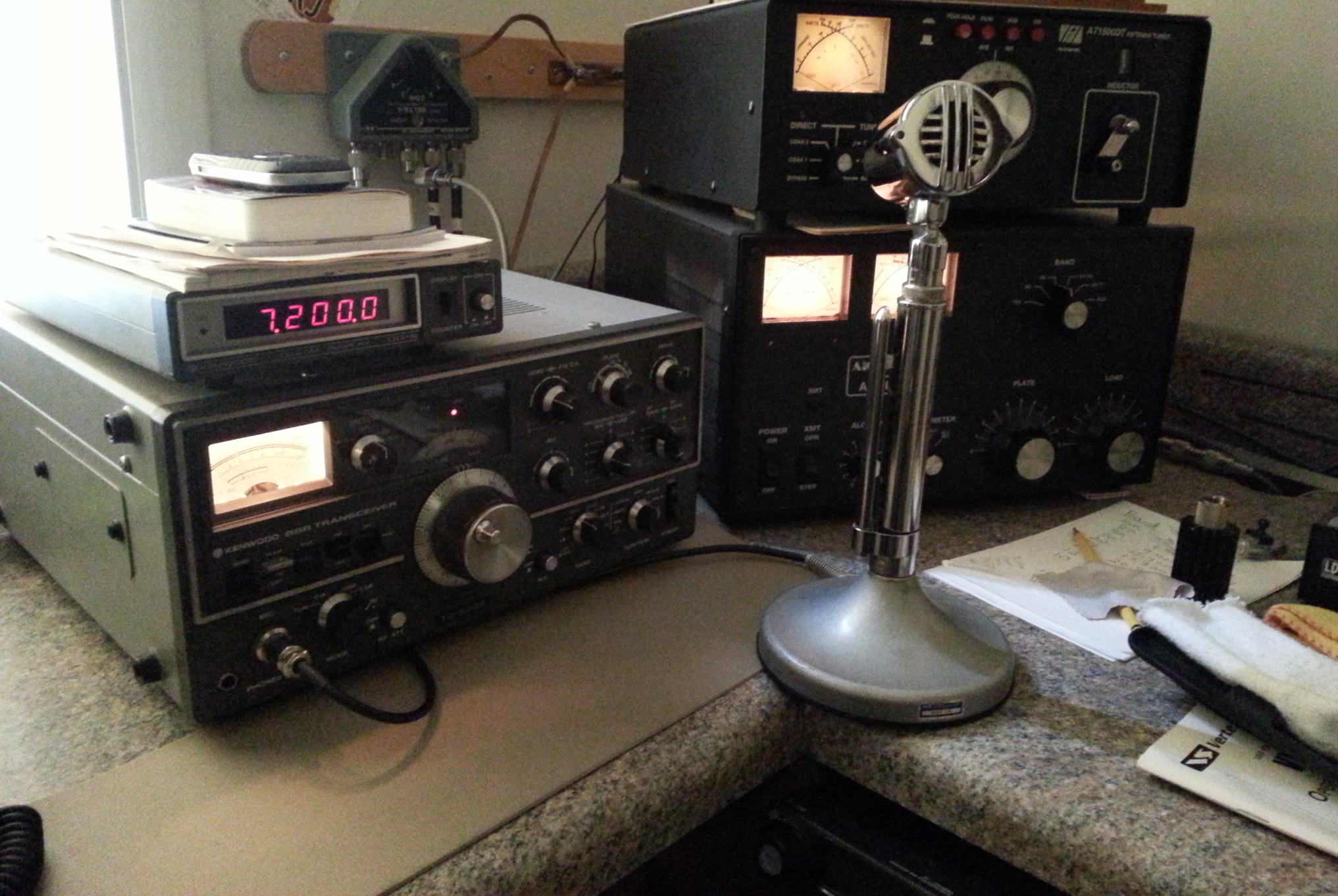

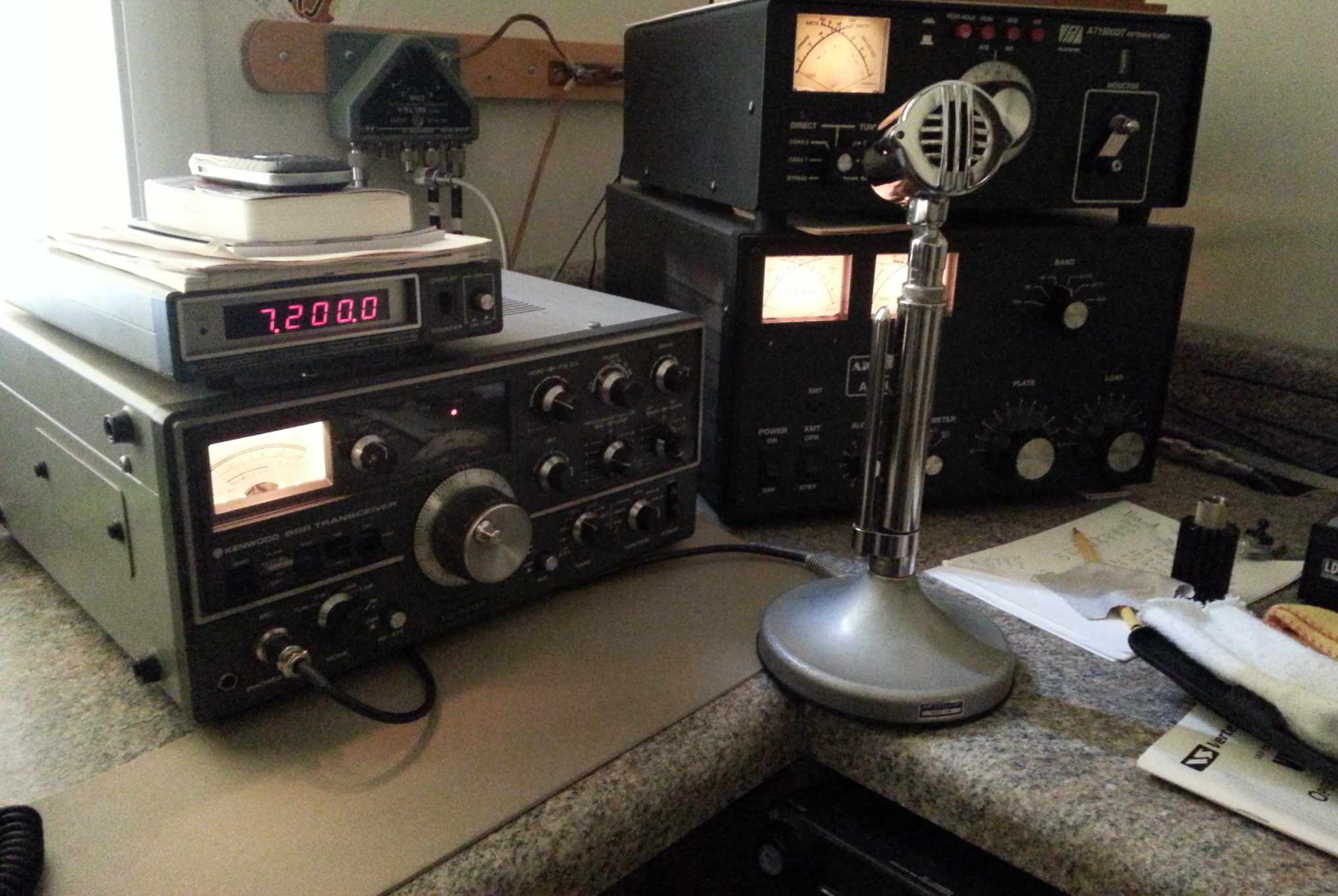

    Not all of the station but my favorite. station (2).png



    #1 oldtymer, Nov 30, 2018
    autotuner, 2RT307, Dmans and 4 others like this.

  2. Delta 1

    Delta 1 Well-Known Member

    Joined:
    Mar 11, 2016
    Messages:
    174
    Likes Received:
    94
    Very nice !!!

    #2 Delta 1, Nov 30, 2018
    Rwb likes this.
  3. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    16,543
    Likes Received:
    10,187
    I have the TS-520 with DG-5 frequency display and the VFO-520 VFO. I also have the TS-820S with the matching VFO-820 and SP-820 speaker, AT-220 tuner and MC-50 microphone. I like the Kenwood hybrids.

    #3 Captain Kilowatt, Nov 30, 2018
    BJ radionut, 2RT307, Rwb and 3 others like this.
  4. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,964
    Likes Received:
    3,018
    a lot . :)
    once I replaced the HV caps, screen resistors, cathode resistors, rewound a plate choke, rebuilt a band switch, gave it a complete tune up, and put all the filters in it.
    It's essentially a "Gold Label" 830 now.

    I do have one aberration. I get a consistent complaint from "one" operator about the "thump" from my MC-50 Mic. If I ask, others will tell me it's there but this one boojum insists on calling attention to it not just every time I join a conversation but every time I unkey!

    In case you're wondering the screen laid over and shorted to, well, everything. It wasn't so much abuse as I don't expect much more than 100w on all but 10m. It was just age. Same with the band switch.

    CK is fortunate that it's an 820 in at least one way. The external VFO for the 820 is a lot easier to find. Now to find a TL-922A. Yeah there's better but it would at least look at home next to the 830.

    The "other" hybrid is the Uniden "Henry" Tempo 2020. That is a whole book of different right up to the 12BY7A and the 6146's. The PA's are essentially the same. (I have three 2020's)

    I just like them. A lot.

    #4 kopcicle, Nov 30, 2018
    2RT307, Rwb, murdog and 1 other person like this.
  5. oldtymer

    oldtymer Well-Known Member

    Joined:
    Nov 15, 2018
    Messages:
    246
    Likes Received:
    353
    There are two 922 amps for sale on QTH & QRZ both posted today

    #5 oldtymer, Jan 8, 2019
  6. jim strawbridge

    jim strawbridge New Member

    Joined:
    Sep 2, 2020
    Messages:
    1
    Likes Received:
    0
    I have the ts520se but needs another rectifier and power board, in time I will get them hi also have the ts530s what a great rig. I am only a novice here in uk but 10 watts will work the world, have a heathkit sb100 but needs psu and upgrade. and have the ft840 so plenty to play with hi hi. ok I will let you guys druel over the pics, nice line of hybrids and some still wear the trio Marque, like my Trio ts530s, made them well,and stand the test of time..73s jim

    #6 jim strawbridge, Sep 2, 2020
  7. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    3,553
    Likes Received:
    3,790
    :ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO: Tuned to the COMEDY CHANNEL:eek::D

    #7 BJ radionut, Sep 2, 2020
  8. oldtymer

    oldtymer Well-Known Member

    Joined:
    Nov 15, 2018
    Messages:
    246
    Likes Received:
    353
    That photo was from a long time ago before the drunks and assholes started hanging out there. There was a good group that used to be in there but they moved on.

    #8 oldtymer, Sep 3, 2020
    Rwb likes this.
