Texas star dx 500 cw to amp conversion

[rflegacy]

hello, does anyone have the cw to amp conversion for the ts dx 500. cbtricks wants money now for the new website and the conversion isn't unavailable on the cbtricks mirror sites. Thanks



[brandon7861]

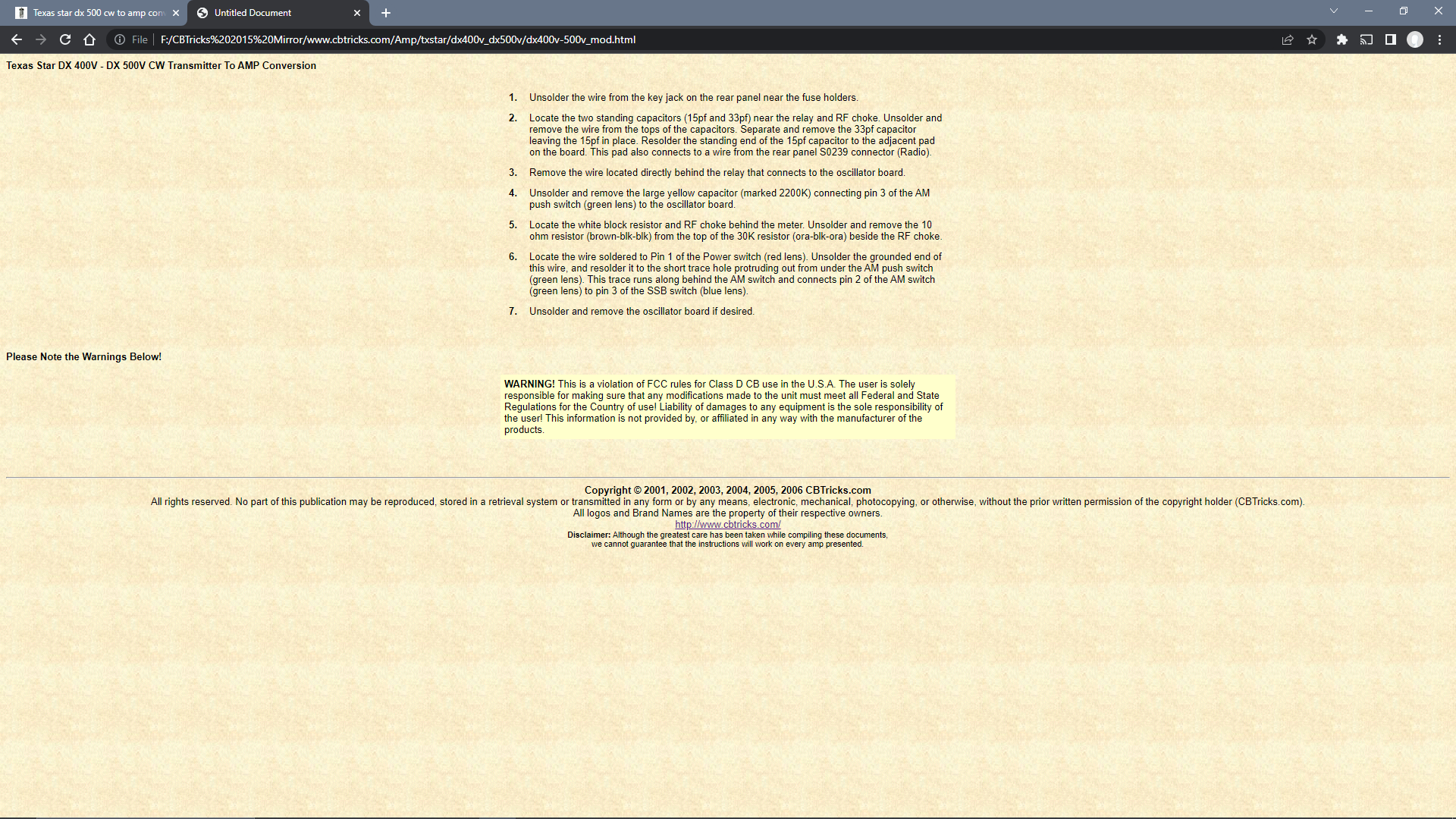

ignore the courts popup, my mouse was hovering over a toolbar link when i took the snapshot

The mirror I shared with the mods here should have this stuff. If it didn't, one of them can let me know and I'll get it to them so they can add it



[Greg T]

If CB Tricks wants money it's a bogus site.



[AudioShockwav]

Latest mirror site

CB Tricks - CB Radio Schematics & Diagrams for FREE!

Free technical information, user manuals and schematic diagrams for CB Radio equipment

cbtricks.org

Still missing info

73
Jeff



[rflegacy]

yup still no conversions available on any cbtricks site.



[Greg T]

yup still no conversions available on any cbtricks site.

Conversions for what?



[999]

yup still no conversions available on any cbtricks site.

Here you go.



[AudioShockwav]

For a very short time they actually installed a small board that you plugged a crystal into for ten meters. Plug a key in the back and send cw....... This is why TS started calling them CW transmiters.
You had to switch a couple wires and pull the board out to return it to amp configuration.
It was a few years ago and all of the ones I see now no longer have the board.

73
Jeff



[Greg T]

I wish they would start manufacturing again.



[AudioShockwav]

I wish they would start manufacturing again.

They are, but it is limited.
They have one person building switch assembly's, someone building boards, and another assembling amps.

73
Jeff



[Greg T]

They are, but it is limited.
They have one person building switch assembly's, someone building boards, and another assembling amps.

73
Jeff

I'd love to find out who makes the cases. I still want a new, or good used lid.



[linearone]

I wish they would start manufacturing again.

I was told they are making a total of 8 amps per day right now



[linearone]

For a very short time they actually installed a small board that you plugged a crystal into for ten meters. Plug a key in the back and send cw....... This is why TS started calling them CW transmiters.
You had to switch a couple wires and pull the board out to return it to amp configuration.
It was a few years ago and all of the ones I see now no longer have the board.

73
Jeff

I actually want some of those oscillator boards but can't get them.



[brandon7861]

I actually want some of those oscillator boards but can't get them.

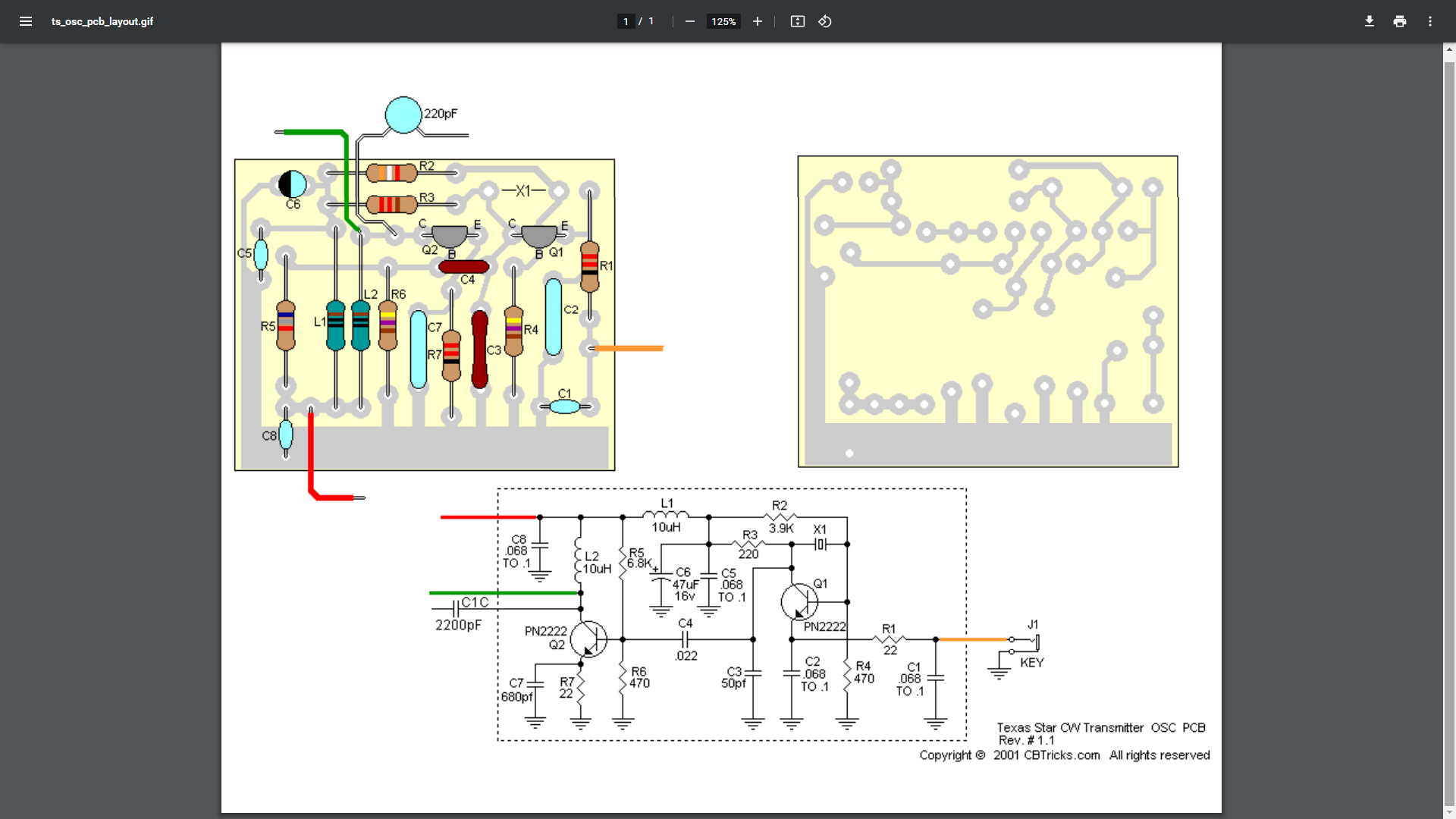

schematic and pcb is on cbtricks

edit: I could put together a few of those.



[999]

I actually want some of those oscillator boards but can't get them.

schematic and pcb is on cbtricks

edit: I could put together a few of those.
