TS 480 Service Menu
- Thread starter fodendaf
- Start date
The Part number for the "dongle" is W05-0611-00, Data Connector
In the TS 480 service Manual, it says that pins #3 And Pins #6 are "shorted.

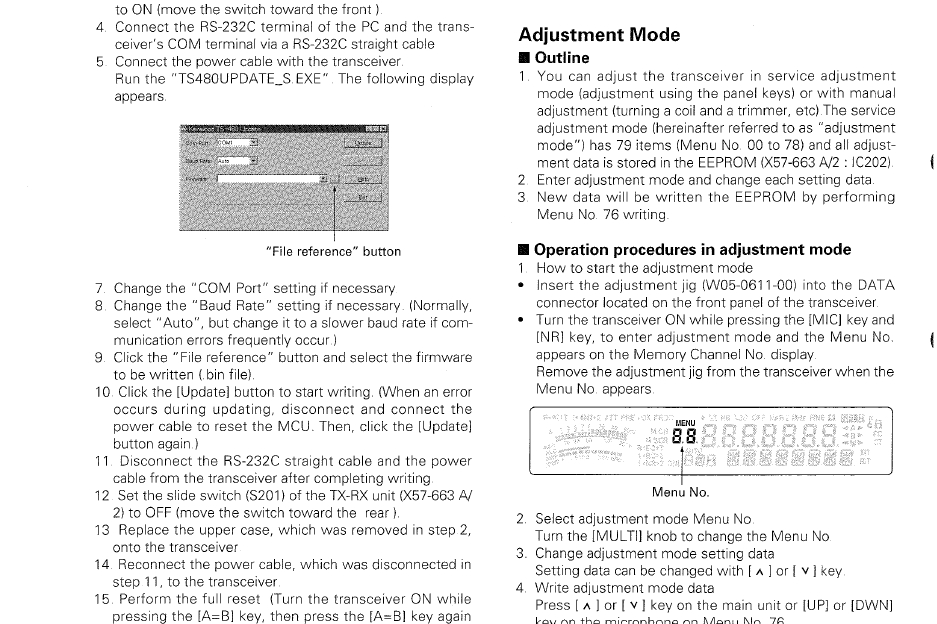

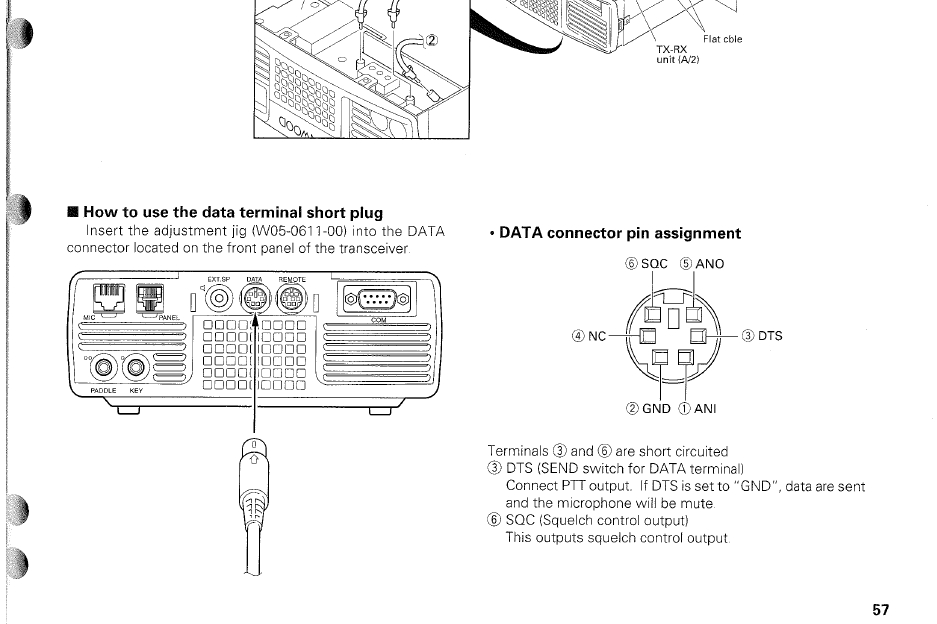

Look at the Picture below. ( if you click the picture, let it load, and click it again, it will load in 100% size)

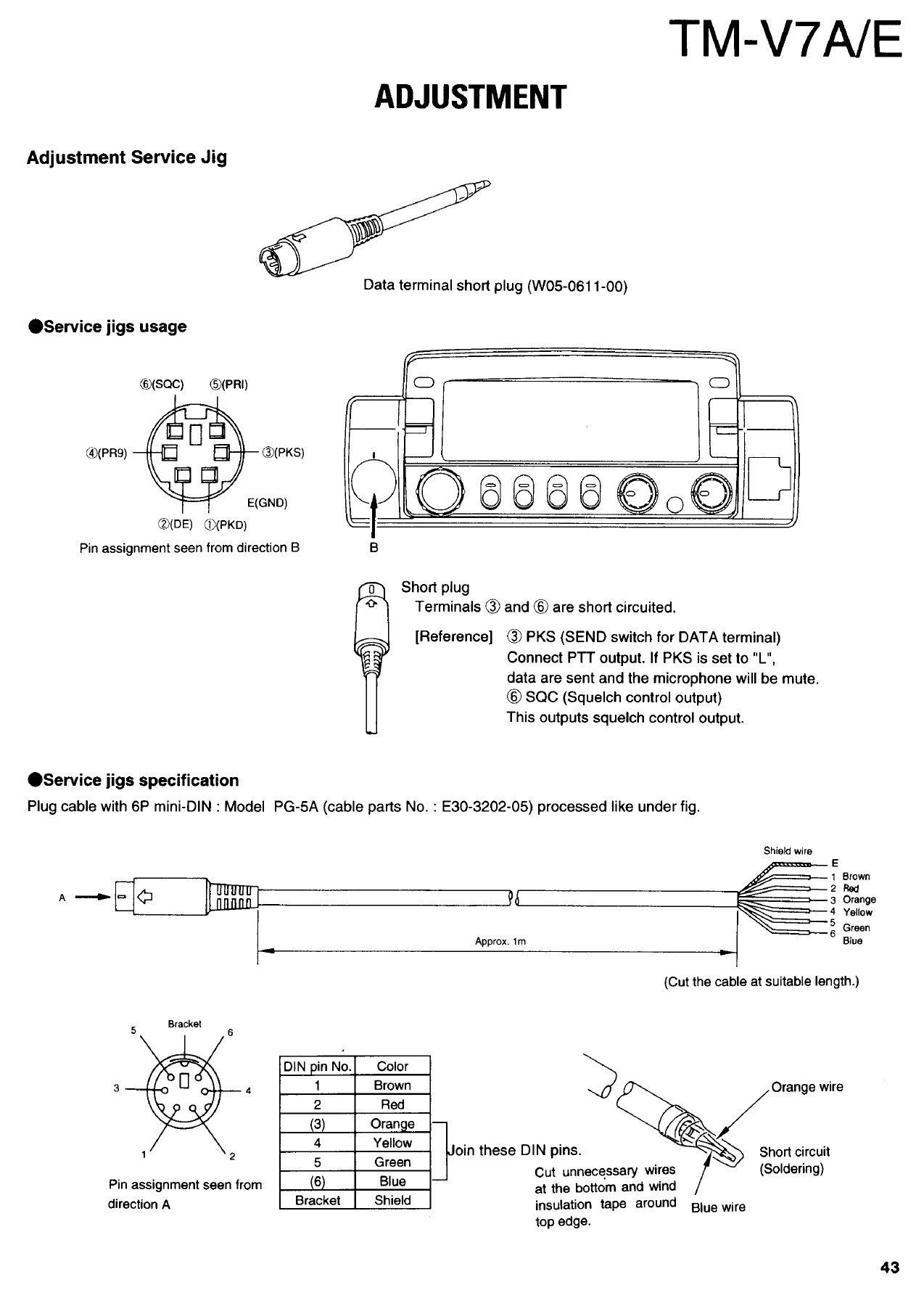

This describes how to build the cable
Part number W05-0611-00 data connector.
I have not verified this so proceed with caution, I do not have the radio to try it on.
Let me know if you have the service manual, you will need it.
73
Jeff
In the TS 480 service Manual, it says that pins #3 And Pins #6 are "shorted.
Look at the Picture below. ( if you click the picture, let it load, and click it again, it will load in 100% size)
This describes how to build the cable
Part number W05-0611-00 data connector.
I have not verified this so proceed with caution, I do not have the radio to try it on.
Let me know if you have the service manual, you will need it.
73
Jeff
