Hi, Handy chart for End fed antennas
If it is possible I would like to make a handy reference guide on a single page with as many of the variables on it as needed. Once everyone has finished, I will try to collate it and put it up for you to check.

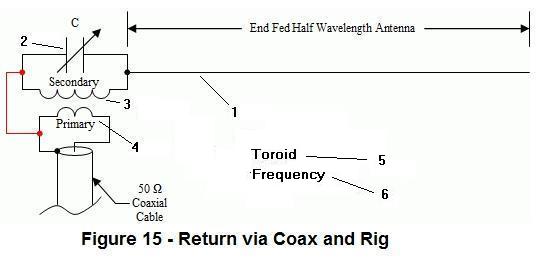

I have attached a little drawing, with the components numbered. So from experience of your own building of this type of antenna, can anyone add shortnotes against each number. If needed please add more numbers.
e,g, longer '1' = greater inductive reactance of wire.
Greater '2' = Lowers inductive reactance of wire.
(Add number) '7' Try to get reactance of wire to be zero.
(Ignore my examples if wrong)
I'm sure it isn't straight forward, but perhaps it will work.
Cheers, Camerart.
