What piece of equipment is this?

Discussion in 'Ham Equipment' started by G0ldenVaughn7, Jan 5, 2018.

  1. G0ldenVaughn7

    G0ldenVaughn7 New Member

    Joined:
    Nov 30, 2017
    Messages:
    2
    Likes Received:
    0

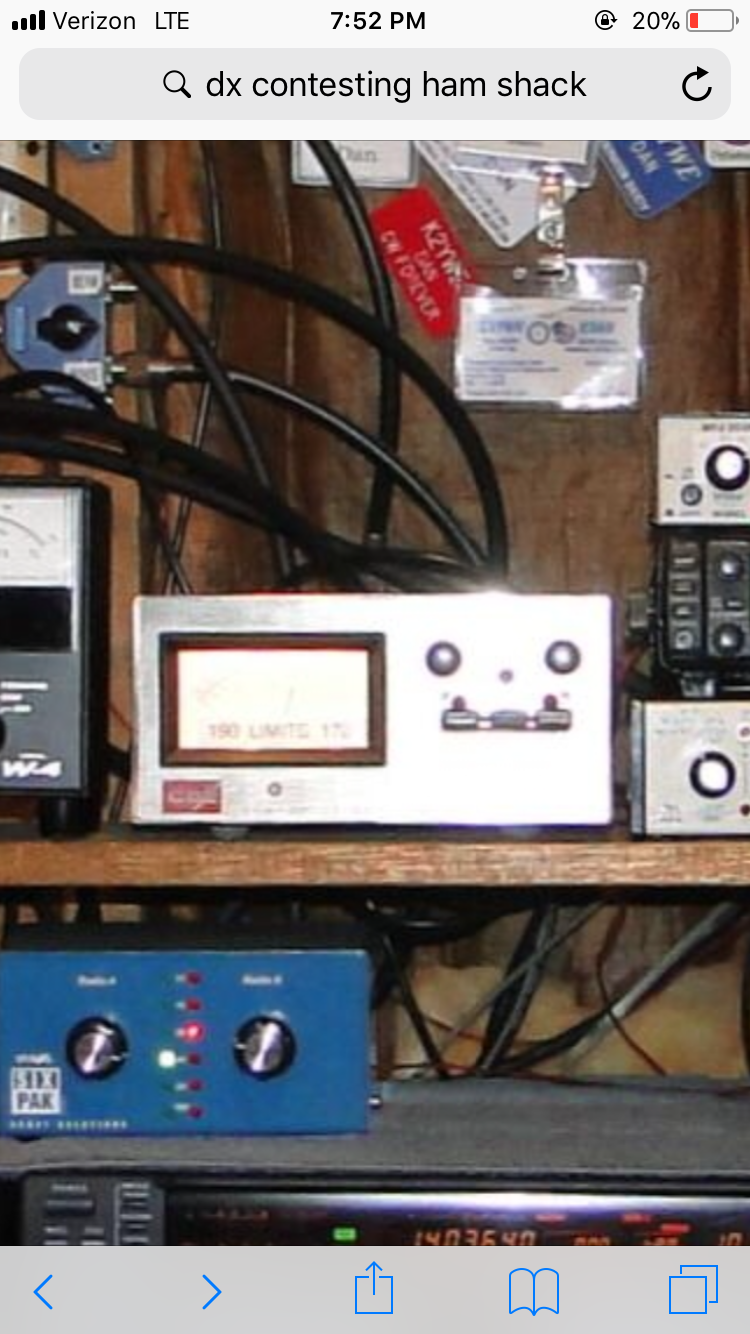

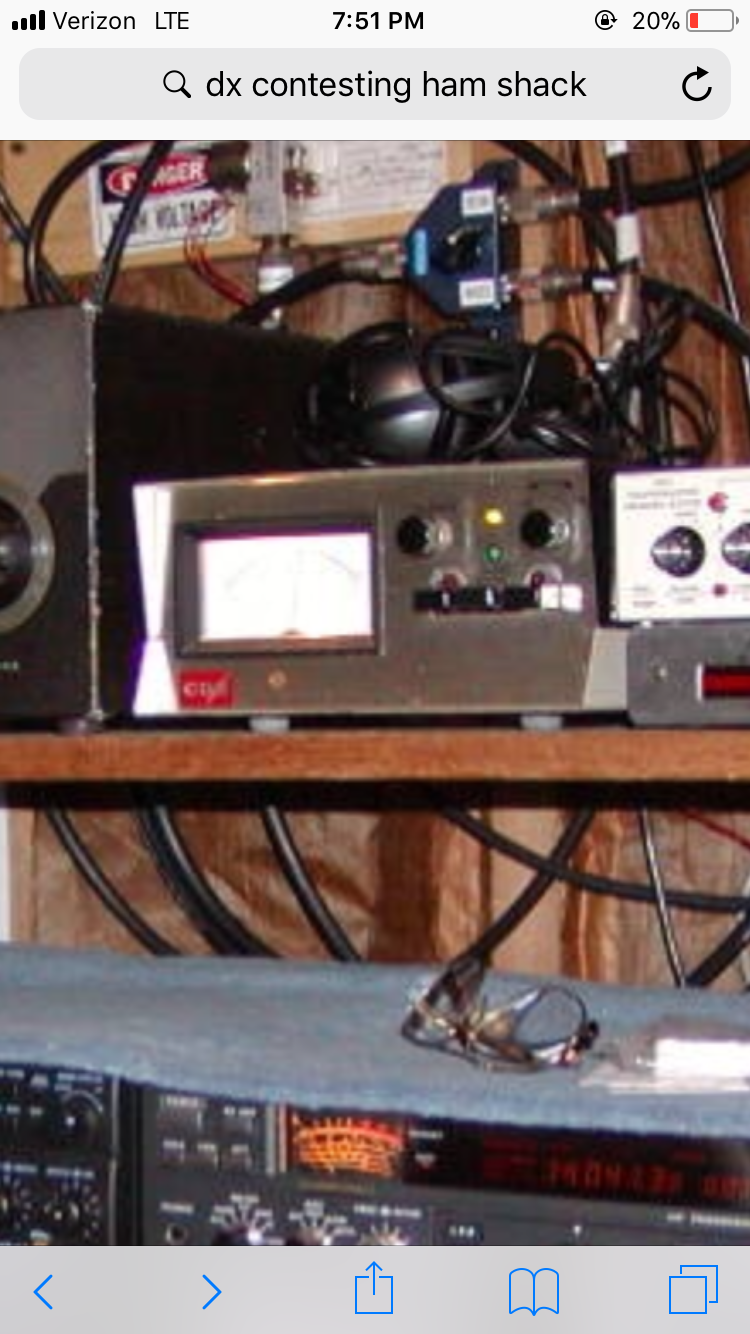

    Im a fairly new ham and I was looking at ham shack set ups and this piece pops up quite often. I cant seem to make out what it says on the red brand tag. Does anyone have any info on this piece of equipment. Thanks in advance.




    Attached Files:


  2. Low_Boy

    Low_Boy Active Member

    Joined:
    Jan 21, 2010
    Messages:
    335
    Likes Received:
    66
    My guess is a rotor to turn an antenna.

    #2 Low_Boy, Jan 5, 2018
    Last edited: Jan 5, 2018
  3. w9cll

    w9cll W9WDX Amateur Radio Club Member

    Joined:
    Jan 19, 2013
    Messages:
    3,058
    Likes Received:
    1,652
    Its a rotor control box

    midnight special likes this.
  4. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    14,702
    Likes Received:
    6,099
    Got one sitting in he shack. t's a Cornell-Dublier antenna rotator control box. CDE was later sold to Hygain. That one looks like it has had an aftermarket modification to it called a brake delay. It would delay he application off the rotator brake until after the mast had stopped rotating. Looks like a Ham-II or Ham-IV or CDE-45 control box.

    bob85 and midnight special like this.
  5. G0ldenVaughn7

    G0ldenVaughn7 New Member

    Joined:
    Nov 30, 2017
    Messages:
    2
    Likes Received:
    0
    Interesting. Thanks for the info. I take it these are for yagi antennas?

  6. Tallman

    Tallman W9WDX Amateur Radio Member, KW4YJ EXTRA class

    Joined:
    May 1, 2013
    Messages:
    2,362
    Likes Received:
    1,251
    Any beam antenna, Directional.

  7. Hurricane145

    Hurricane145 Active Member

    Joined:
    Aug 12, 2011
    Messages:
    84
    Likes Received:
    35
    Mine has the brake delay added to it but there is nothing on the front panel that needs to indicate that. My tower is right outside the "radio room" so I can hear it engage. It's a Wilson TT45B with the rotor base so the rotor is right there.
    It looks like the owner may have added some lights or LEDs to indicate when the rotor is actuated. I can't think of any reason to bother with that though. Just fun stuff to do
    maybe.

  8. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    14,702
    Likes Received:
    6,099

    You are correct. I took another look at the image blown up and it is an Rotor-EZ modification.

    https://www.hamsupply.com/rotor-ez-hy-gain-rotor-control/


    Hurricane145 likes this.
  9. Hurricane145

    Hurricane145 Active Member

    Joined:
    Aug 12, 2011
    Messages:
    84
    Likes Received:
    35
    Pretty slick. I have never seen that before. It does get kinda old holding the two levers down when turning the rotor a long way. Not worth $100 and the effort to modify the rotor box to me however.
