Ranger (RCI) Ranger RCI-2995DX

LINK
Picture Tour Of Radio

MANUALS

• Factory Service Manual ​

Radio Modifications

• Clarifier Unlock

Diagrams

• Schematic Diagram

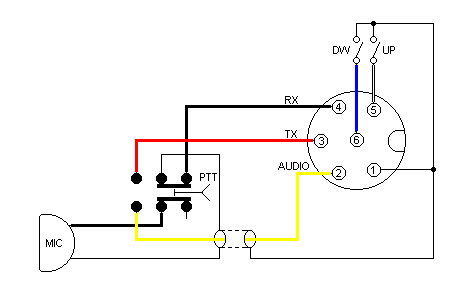

Mic Wiring Info

Stock
1. Ground Shield
2. Audio Yellow
3. Transmit Red
4. Receive Black
5. CH. Up White
6. CH. Down Blue

Turner 4-Wire
1. Ground Shield
2. Audio White
3. Transmit Black
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Turner 6-Wire
1. Ground Shield & Red
2. Audio White
3. Transmit Blue
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Astatic 4-Wire
1. Ground Shield
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Astatic 6-Wire
1. Ground Shield & Blue
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C
