After an hour or so, the panel was ready

Next will be the 220vac input cabling, and the connections to the meters, switches, and controls

Got the wiring for the DC output completed.

well ... everything fits. Kinda ugly; needs paint lettering, etc. but pretty much good to go

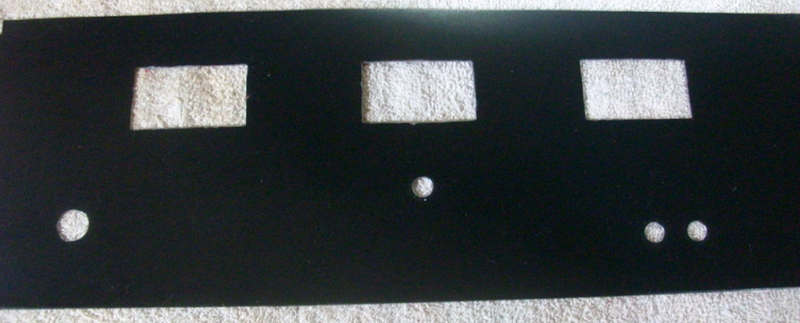

After an hour or so, the panel was ready

Then I made a layout for the meter cutouts, and the holes for the switches.

Using the original Heath faceplate as a guide, I cut a new plate out of some scrap sheet metal I had laying around.

Insralled the filter caps and the 100 amp shunt for the ammeter

After an hour or so, the panel was ready

unit_399
Mar 26, 2013
