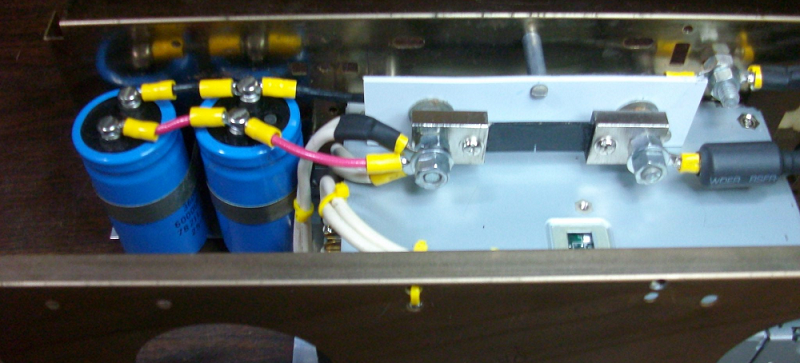

Got the wiring for the DC output completed.

[No title]

Next will be the 220vac input cabling, and the connections to the meters, switches, and controls

Got the wiring for the DC output completed.

well ... everything fits. Kinda ugly; needs paint lettering, etc. but pretty much good to go

After an hour or so, the panel was ready

Then I made a layout for the meter cutouts, and the holes for the switches.

Using the original Heath faceplate as a guide, I cut a new plate out of some scrap sheet metal I had laying around.

Got the wiring for the DC output completed.
