red wire-
here is the red wire, soldered to the collector of Q49.
The collector is the single leg of Q49, the opposite side has 3 legs.

ROFL

5054 mount-

This is how Paul mounted the TE-32. Mine is mounted on top with Velcro.

in this picture, you can see how I ran the wiring out of the radio.

red wire-
here is the red wire, soldered to the collector of Q49.
The collector is the single leg of Q49, the opposite side has 3 legs.

shield-

here, I have the shield soldered to the top of the crystal.

white wire-
This photo shows the white wire (100K ohm resistor soldered on to end of
white wire, and wrapped in heatshrink) soldered to the
base of Q2

Black Wire-

This photo shows the black wire soldered to the 8v O/P eyelet on the board.

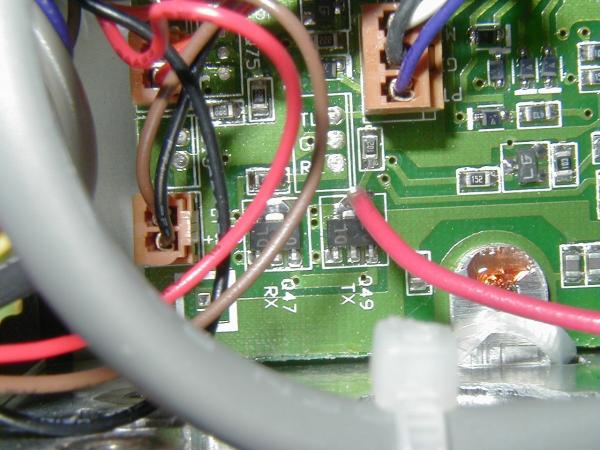

red wire- here is the red wire, soldered to the collector of Q49. The collector is the single leg of Q49, the opposite side has 3 legs.

Sonwatcher
Nov 3, 2009
